Compact 5-port Gigabit Ethernet switch without IGMP, featuring 10 Gbps switching capacity, plug-and-play, QoS and energy-efficient Ethernet.

Product no:

19 EUR /pc.

Add to cart

AV-CONNECTION

Fast worldwide delivery

+25 years of experience

30 days return policy

5-star customer service

Price protection

Highlights:

• 5 Gigabit Ethernet ports with 10/100/1000 Mbps
• 10 Gbps switching capacity
• Unmanaged plug-and-play switch with no advanced configuration required
• No IGMP support
• IEEE 802.1p QoS for prioritising time-sensitive network traffic
• IEEE 802.3az Energy-Efficient Ethernet
• Compact metal housing
• 2K MAC address table

Easy expansion with five Gigabit Ethernet ports:

The D-Link DGS-105GL is an unmanaged 5-port Gigabit Ethernet switch for expanding a wired network in a home or small business. The five RJ-45 ports support Ethernet speeds of 10, 100 and 1000 Mbps, allowing compatible network devices to connect at up to Gigabit speeds. The total switching capacity is 10 Gbps, providing the switch with the capacity to handle traffic between its five ports.

As an unmanaged switch, the DGS-105GL requires no advanced configuration. It can therefore be used to add extra Ethernet ports to an existing network, for example when the built-in LAN ports on a router are not sufficient. Gigabit Ethernet also provides high bandwidth for network tasks such as large file transfers, 4K video streaming, video surveillance and video conferencing.

Traffic prioritisation and energy-efficient Ethernet operation:

The DGS-105GL supports IEEE 802.1p Quality of Service, which enables time-sensitive network traffic to be prioritised. This can be relevant for video and voice traffic, where traffic prioritisation can be important. The switch uses store-and-forward for processing Ethernet traffic and has a MAC address table with a capacity of 2K addresses.

IEEE 802.3az Energy-Efficient Ethernet helps reduce power consumption by automatically adjusting energy usage on the Ethernet connections. The switch is built in a compact metal housing and measures 2.24 x 8.5 x 9.09 cm. The DGS-105GL does not support IGMP, which is an important consideration when selecting a switch for network installations where IGMP functionality is required.

Specifications:

• Switch type: Unmanaged
• Ethernet ports: 5 x RJ-45 Gigabit Ethernet
• Ethernet speeds: 10/100/1000 Mbps
• Switching capacity: 10 Gbps
• IGMP support: None
• MAC address table: 2K addresses
• Transmission: Store-and-forward
• QoS: IEEE 802.1p
• Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u and IEEE 802.3x
• Energy efficiency: IEEE 802.3az Energy-Efficient Ethernet
• Housing: Metal

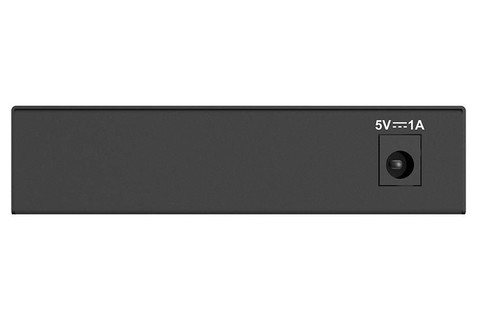

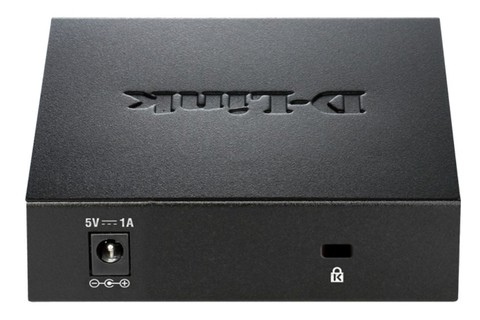

• Power connection: DC input
• Power supply: 5 V DC, 1 A
• PoE: Not supported
• Operating temperature: 0 to 40 °C
• Storage temperature: -10 to 70 °C
• Operating humidity: 10 to 90%
• Storage humidity: 5 to 95%
• Weight: 0.16 kg
• Dimensions: 2.24 x 8.5 x 9.09 cm (H x W x L)

DLK-DGS-105GLE: D-Link 5 Port Gigabit switch, Unmanaged (DGS-105GL/E)

D-Link Corporation is a network equipment manufacturer headquartered in Taipei, Taiwan. The company was founded in March 1986 and has always delivered innovative solutions for IT infrastructure to both companies and individuals.

Manuals and user guides for D-Link products

Unfortunately, as manufacturers do not make manuals or guides in all languages, we cannot guarantee that a local language manual is included for the item.
- If you are unsure about a manual available in the desired language, just contact us and we will do what we can to help.
