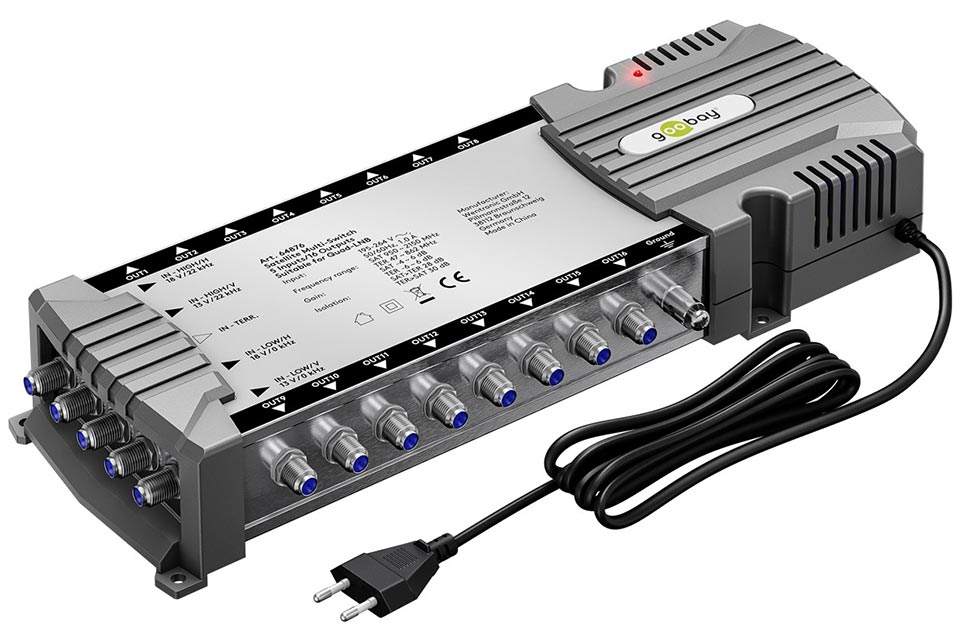

Sat Multiswitch 5 Inputs/16 Outputs

Sat multiswitch for up to 16 users from one dish. Stable distribution of satellite TV, radio and terrestrial signals with 5 inputs and 16 outputs.

Product no:

81 EUR /pc.

Add to cart

AV-CONNECTION

Fast worldwide delivery

+25 years of experience

30 days return policy

5-star customer service

Price protection

Highlights:

• Multiswitch with 5 inputs and 16 outputs
• Supports up to 16 users from one satellite
• Compatible with HDTV, 3D, 4K, 8K UHD and Sky
• Suitable for Quattro LNB and Quad LNB
• Terrestrial input for DAB, FM, DVB-T and DVB-T2
• Stable signal distribution without interference
• Durable metal housing with low signal loss

Efficient sat multiswitch for 16 users:

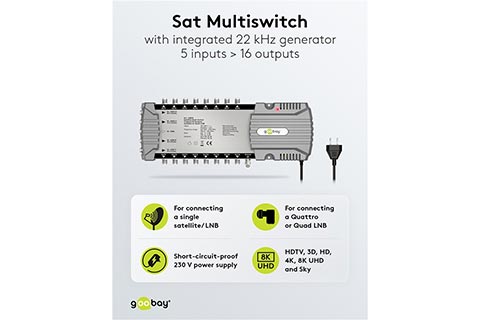

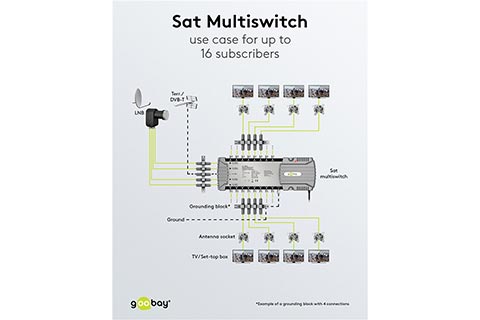

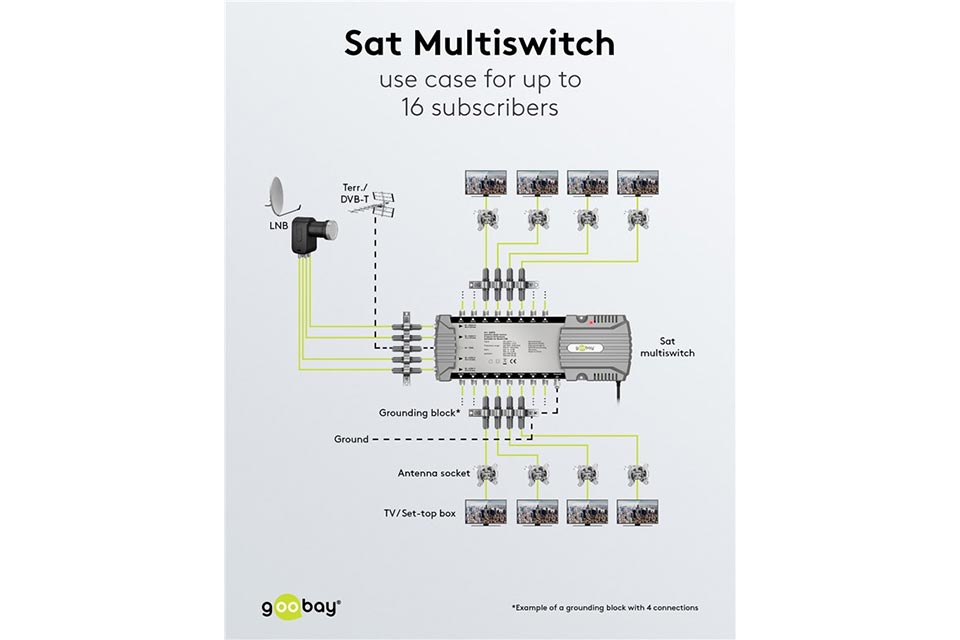

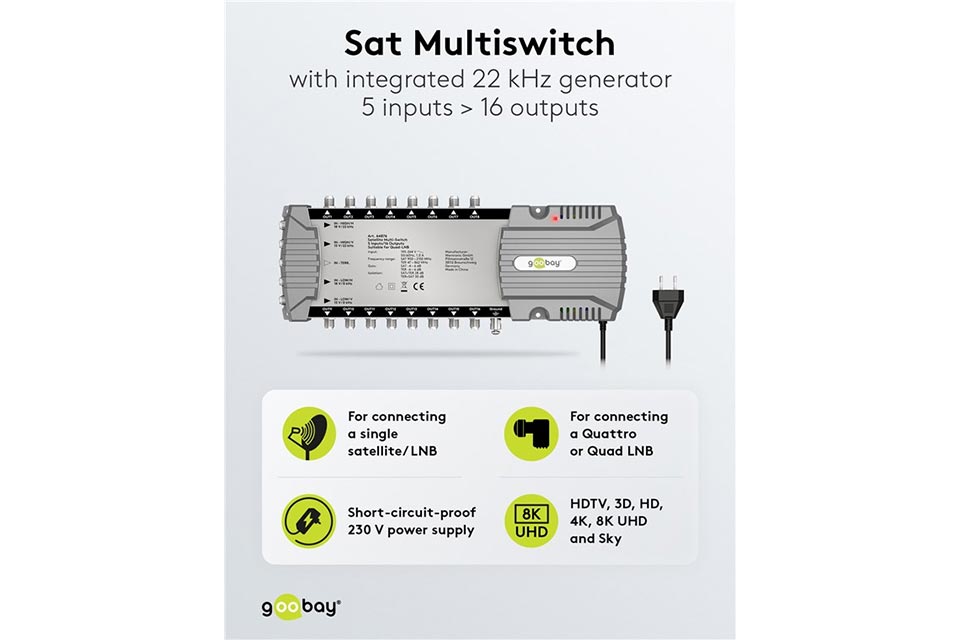

This Sat multiswitch with 5 inputs and 16 outputs is a practical solution for distributing satellite TV and radio across homes, buildings, holiday houses or smaller installations where multiple rooms require access to the same dish. The multiswitch can supply up to 16 subscribers from a single satellite, allowing each user to watch their preferred channel independently. This creates a flexible and reliable setup when connecting several TV boxes, satellite receivers or tuners without compromising signal quality. It works with a single LNB for popular satellites such as Astra, Hotbird, Eutelsat and Türksat, and supports both Quattro LNB and Quad LNB thanks to the integrated 22 kHz generator.

Stable signal distribution for modern TV setups:

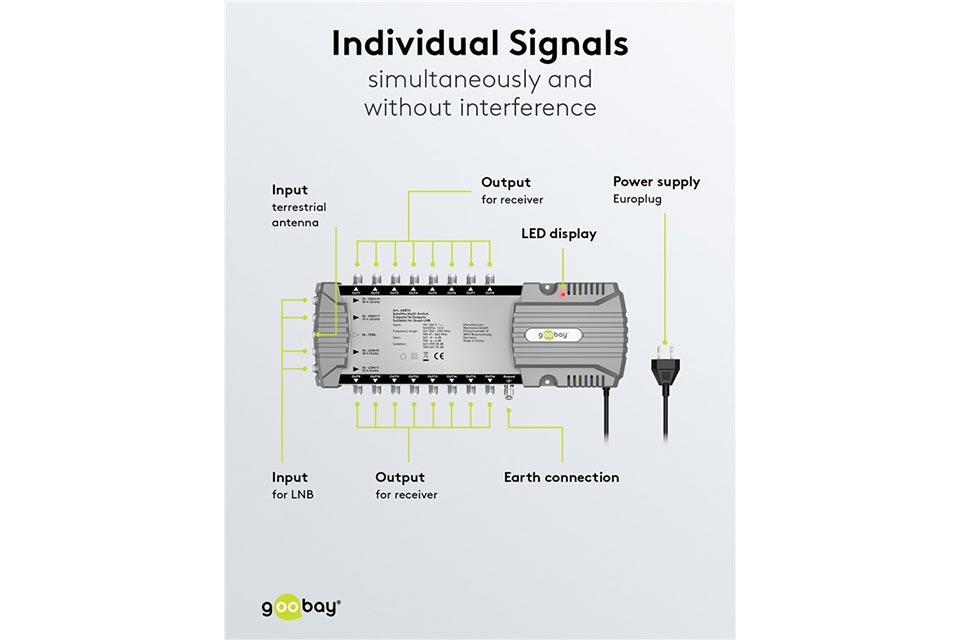

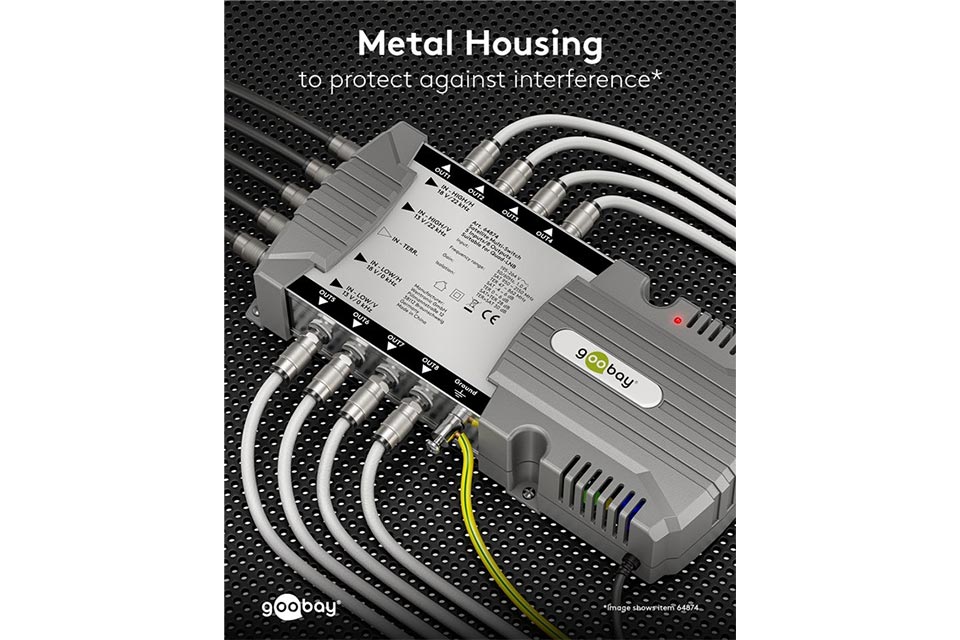

The multiswitch is designed for modern TV signals and supports DVB-S, DVB-S2, DVB-T, DVB-T2, HDTV, 3D, 4K, 8K UHD and Sky. This ensures the installation is ready for both standard TV reception and high-resolution content with sharp visuals and stable transmission. In addition to the four satellite inputs, the unit includes one terrestrial input for DAB, DAB+, FM, DVB-T and DVB-T2 antennas. Frequency-dependent amplification, low signal loss and effective shielding from the metal housing ensure clean and reliable signal distribution across all outputs. The included short-circuit-protected 230 V power supply with Europlug also helps maintain low power consumption, even in standby mode.

Specifications:

• Type: Sat multiswitch
• Inputs: 5
• Outputs: 16
• Max. subscribers: 16
• Connection type, input: F female
• Connection type, output: F female
• LNB compatibility: Quattro LNB and Quad LNB
• Satellite support: Astra, Hotbird, Eutelsat, Türksat
• Terrestrial input: DAB, DAB+, FM, DVB-T, DVB-T2
• Transmission: DVB-S, DVB-S2, DVB-T, DVB-T2
• Supports: HDTV, 3D, HD, 4K, 8K UHD, Sky

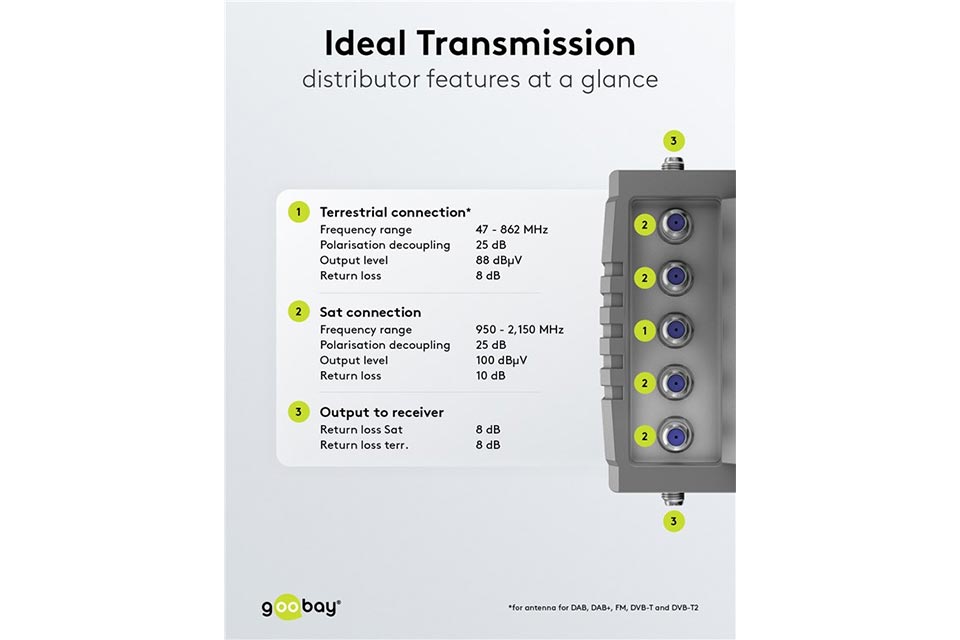

• Frequency range SAT: 950 - 2.150 MHz
• Frequency range terrestrial: 47 - 862 MHz
• Output level SAT: 100 dBµV
• Output level terrestrial: 88 dBµV
• Polarization decoupling SAT: 28 - 30 dB
• Return loss SAT inputs: 10 dB
• Return loss SAT outputs: 8 dB
• Impedance: 75 Ohm

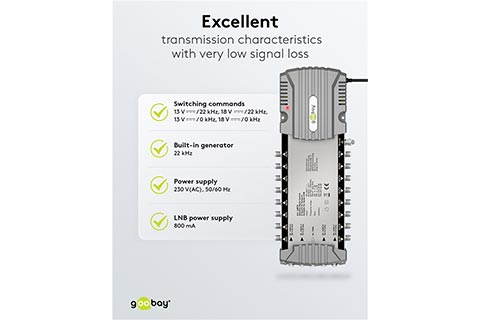

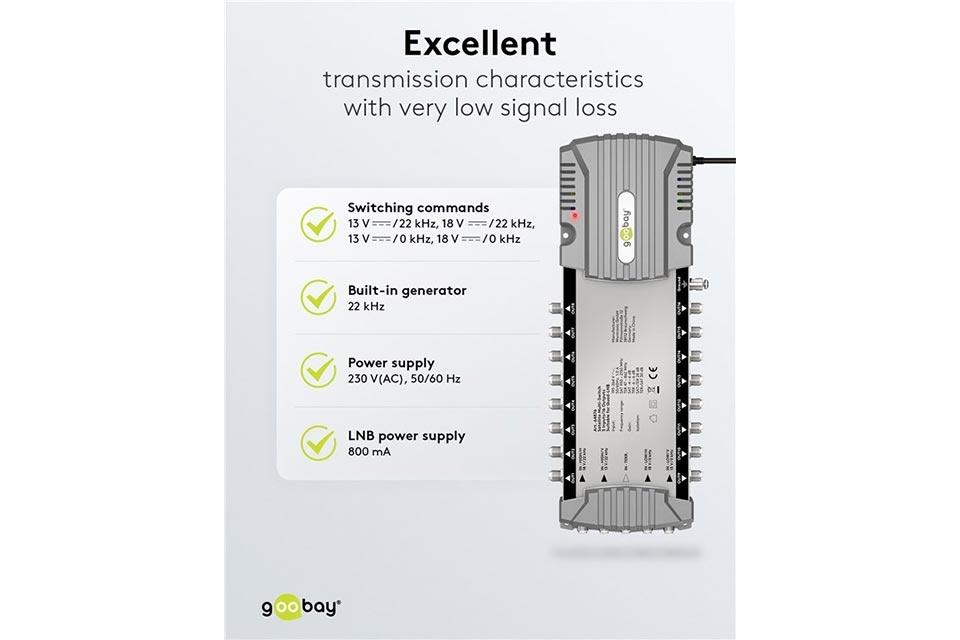

• Switching commands: 13/0, 18/0, 13/22, 18/22
• Input voltage: 230 V AC
• Power supply: Short-circuit-protected 230 V with Europlug
• Material: Metal and plastic
• Color: Silver and grey
• Operating temperature: Up to 50 °C

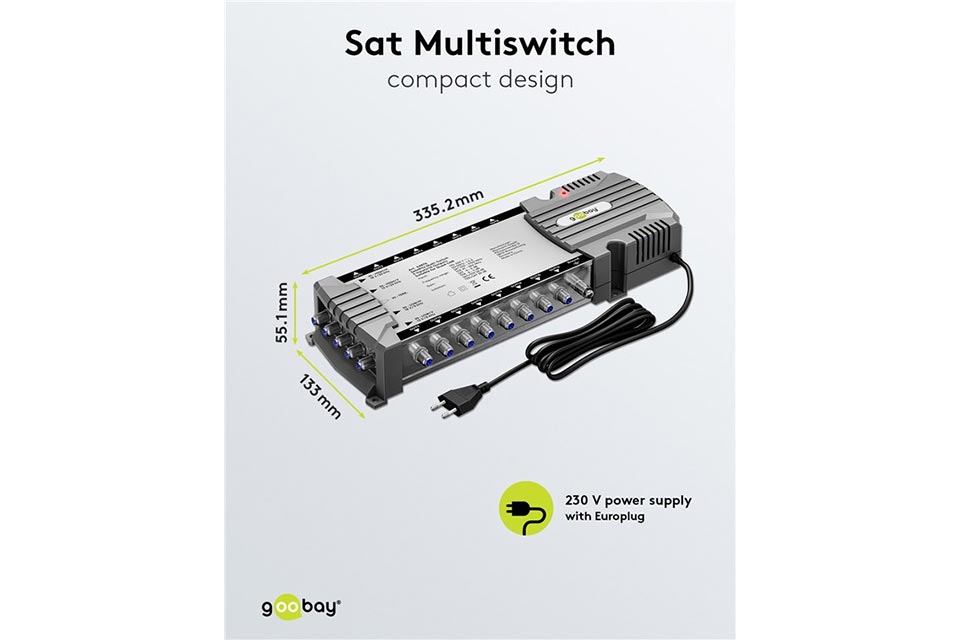

• Dimensions: 55.1 x 335.2 x 133 mm
• Weight: 840 g
• Certifications: CE, WEEE
