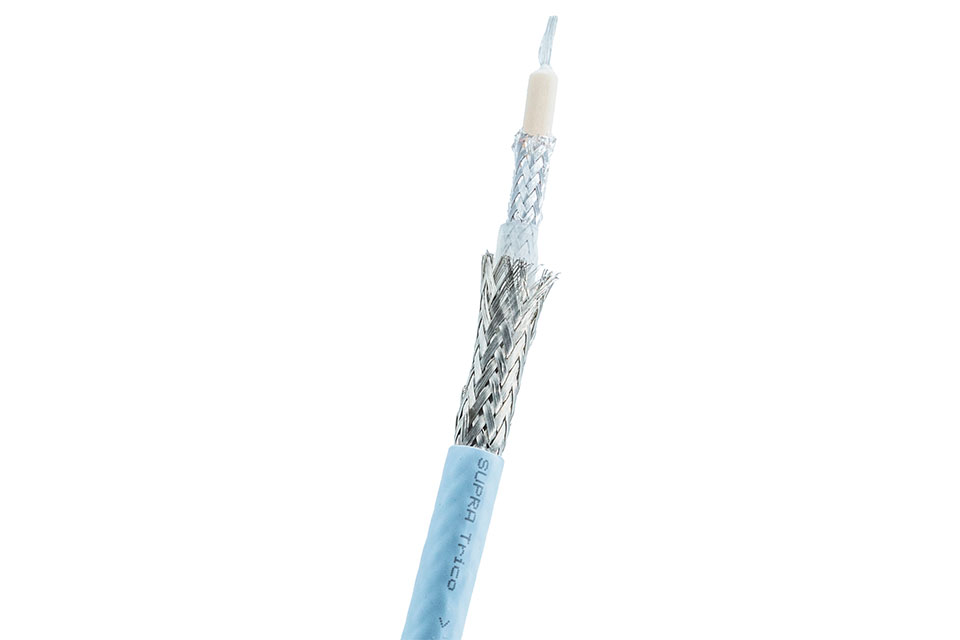

Supra Trico - Digital-/video-/antenna cable featuring real 75 Ohms impedance
Simply, our best digital cable with extraordinary bandwidth. Designed according to Supra signature feature of lowest possible capacitance, especially for transmission of binary code. The damping factor is only 0.6 dB per 100 meter cable length! Thanks to its genuine 75 ohm impedance it is spot-on the specifications for the S/PDIF (Sony/Philips Digital Interface) standard. This is crucial for not adding jitter to the binary signal, which ruins the music signal quality. Impedance related jitter is one of the largest reasons why there is such a great variation of sound from digital cables and also why Supra Trico is so highly appreciated. The di-electric (insulation) consist of a thick layer of PE foam (air-injected PE plastic foam) which provides for 58 pF/m capacitance, allowing the digital square wave to transmit the full signal without any deformation. The velocity factor is a staggering 0.78 x the light speed contributing to the binary square wave build-up with virtually no delay. Suitable usage areas; e.g. composite video, RGB-video (separate video channels), S/PDIF and as an antenna cable suitable for long cable runs such as distribution of central TV in apartment houses. Mechanical data • Number of leads: 3 (+, - and earth) • Lead area: 0.71 / 19 mm2 / AWG • Number of strands per lead: 7 pieces • Strand diameter: 0.36 mm • Lead material: Silver plated, oxygen-free, 5N copper • Di-electric (insulation): Air-injected PE foam • Shield: Return lead + additional outer shield; 90 % coverage • Jacket: Heat and age resistant PVC • Outer dimension: 8.2 mm • Weight (without connectors): 105 g/m • Length: 100 m/bobbin Electrical properties • Capacitance: 58 pF / m • Dampening factor @ 1 MHz: 0.6 dB / 100 meter • Dampening factor @ 100 MHz: 7.1 dB / 100 meter • Characteristic impedance: 75 Ohm (±1,5 Ohm @ 1 MHz-100 MHz) • Velocity factor: 0.78 x C (speed of light) Here you can see how other customers have rated the item with character, and possibly made a review. Average rating (5,0):
– Of total 1 ratings
Brand description - SUPRA
NO-NONSENSE cablesAt Jenving their focus is quality without the price going up entirely in the higher heavenly layers. All cables are based on real engineering and not voodoo, from the selection of raw materials to the actual cable construction and thereby the final sound properties.There is, therefore, a very reasonable price/quality ratio on SUPRA cables, compared to the many exotic high-end cables on the market. Whatever the variant/price range of a Supra cable you buy, you always get quality for the money or No-nonsense as Jenving calls it. Manuals and user guides for SUPRA productsWhen purchasing a SUPRA product, a user guide or instruction is usually provided in the following languages: English. Unfortunately we cannot guarantee that a printed manual / user guide is included in the product box, but most often it can be found on the manufacturer´s website.
