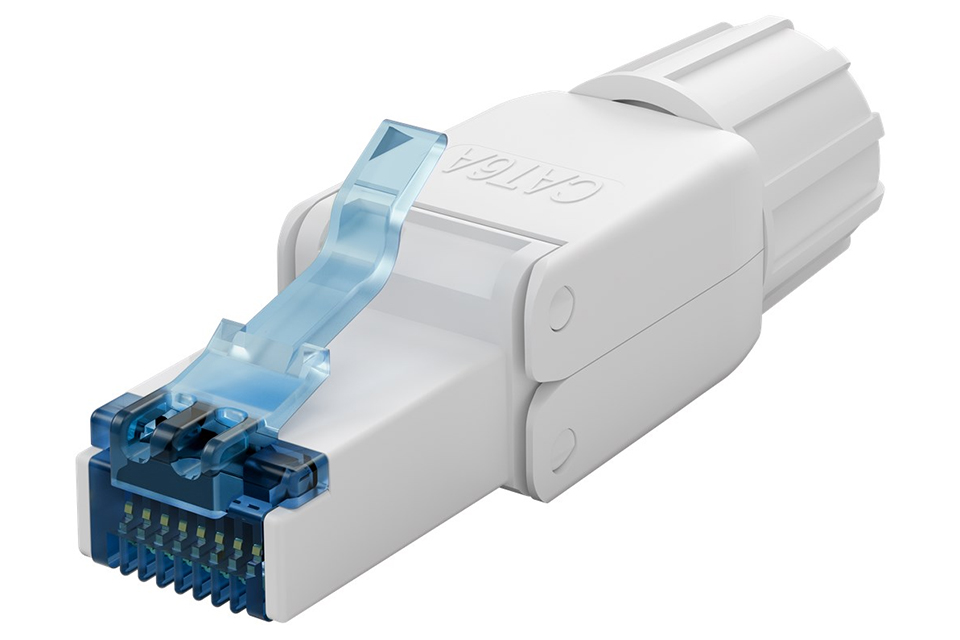

CAT 6A UTP Unshielded RJ45 Connector for Field Assembly

Tool-free CAT 6A RJ45 connector with PoE++ and 10G support. Quick installation, solid connection, perfect for custom-length network cables.

Starts at 5 EUR /pc.

Choose variant for price and delivery

AV-CONNECTION

Fast worldwide delivery

+25 years of experience

30 days return policy

5-star customer service

Price protection

Highlights:

• Tool-free installation with practical folding mechanism
• Supports 10GBase-T and PoE++ (IEEE802.3bt)
• Suitable for solid and stranded conductors (AWG 22-24)

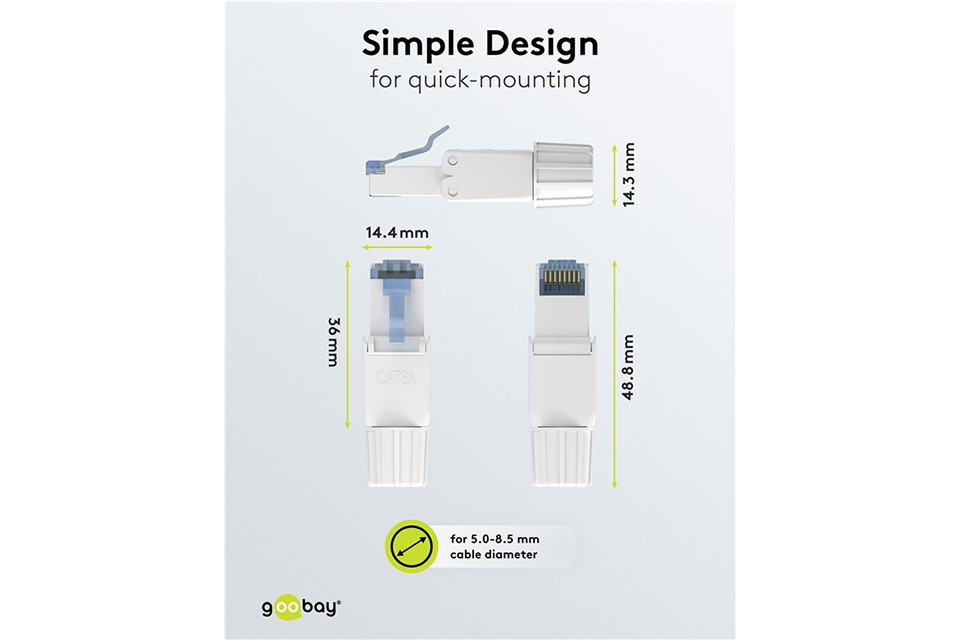

• Fits cable diameters from 5.0 to 8.5 mm

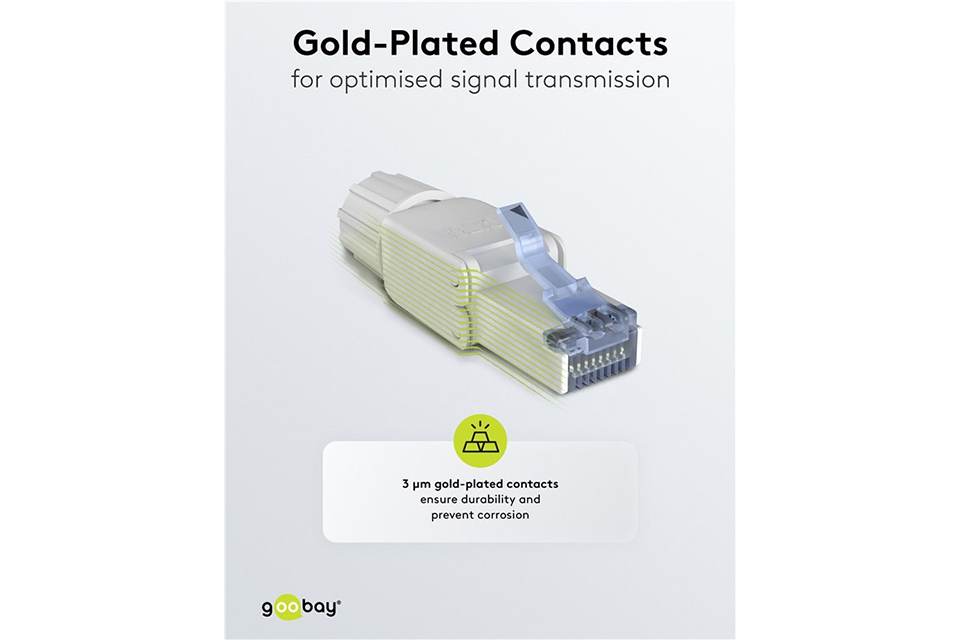

• 3-µm gold-plated contacts for optimal signal transmission
• TIA-568A/B color-coded for easy connection
• Secure and stable mounting with screw cap

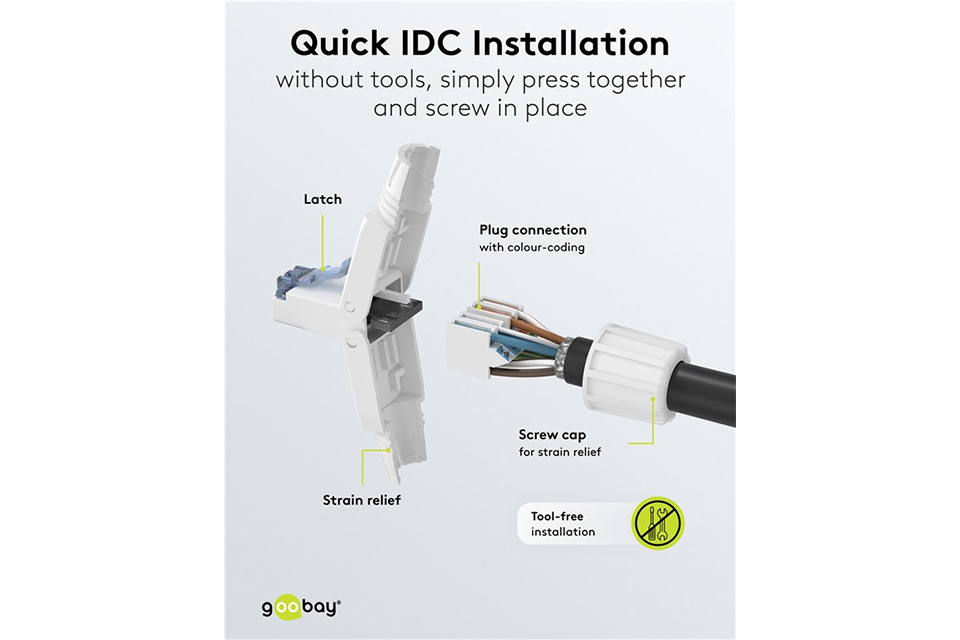

Quick And Easy Field Installation:

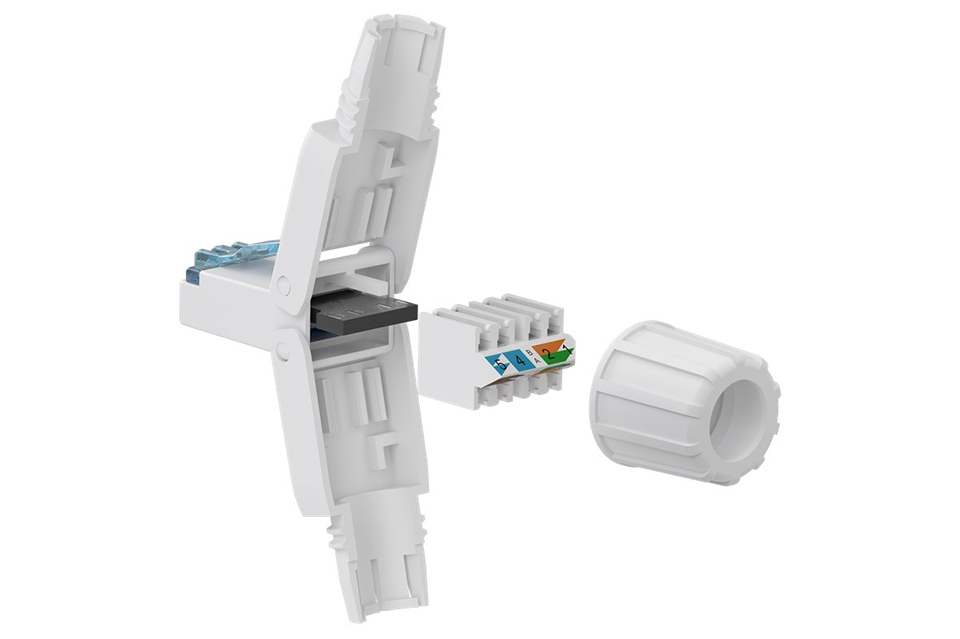

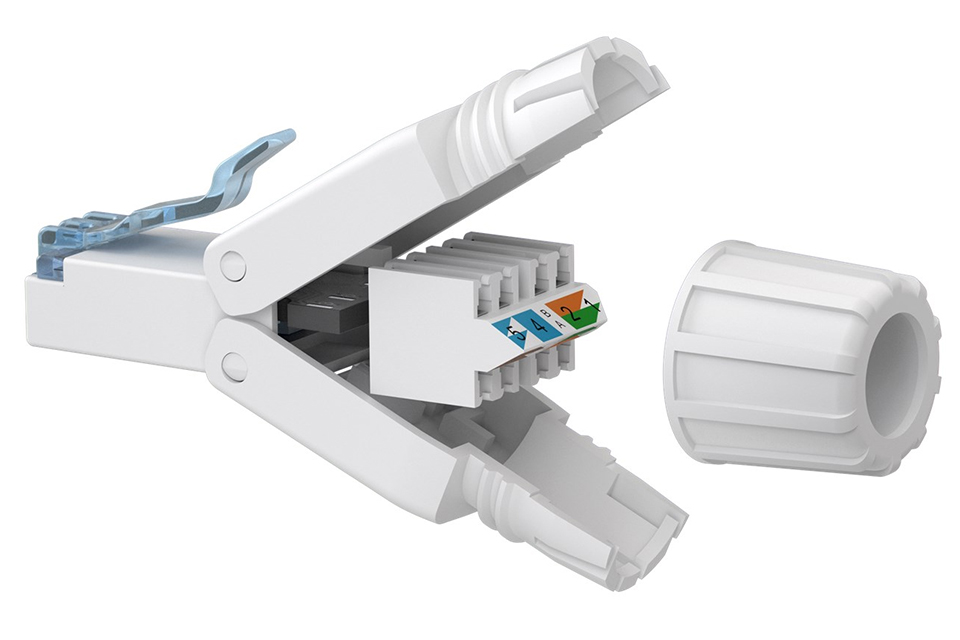

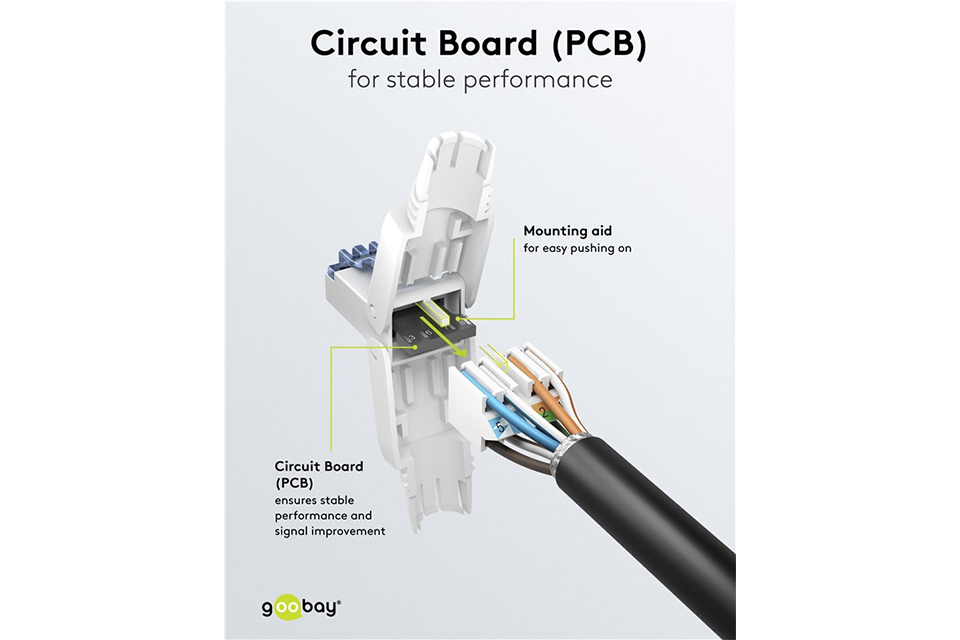

This CAT 6A UTP RJ45 connector is designed for efficient and reliable installation without the need for special tools. The smart folding mechanism and IDC technology make it simple to assemble network cables in the field. Just place the wires according to the color code and press the housing together. It's ideal for both solid and stranded conductors, offering great flexibility during installation.

Outstanding Performance And Compatibility:

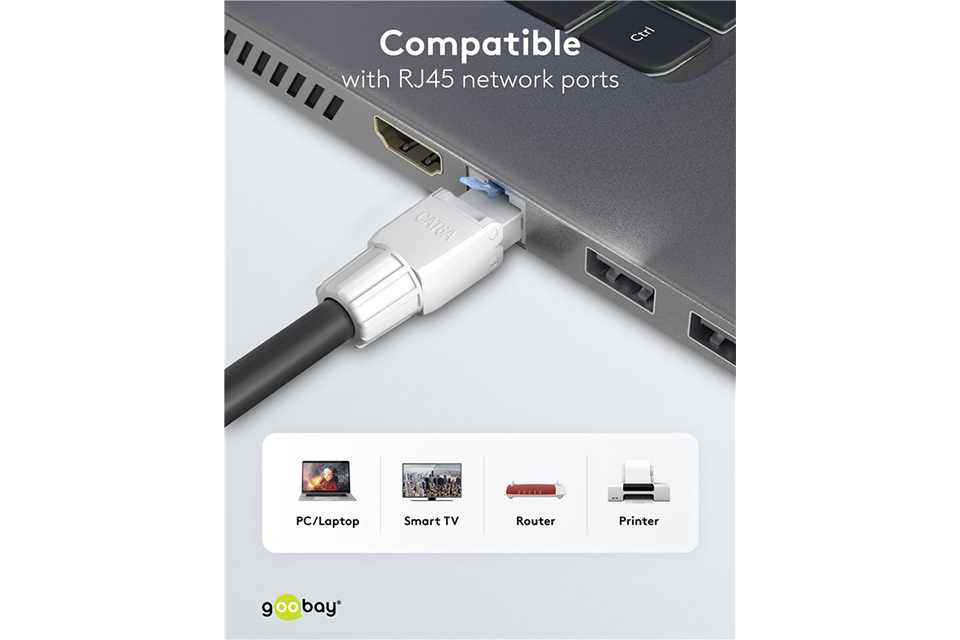

The connector supports high-speed data transmission and advanced network features like 10GBase-T and Power over Ethernet up to PoE++ (4PPoE), making it perfect for modern networking solutions. With bandwidth up to 500 MHz, it ensures stable and fast signal transmission even in demanding applications.

Durable Design For Long-Term Use:

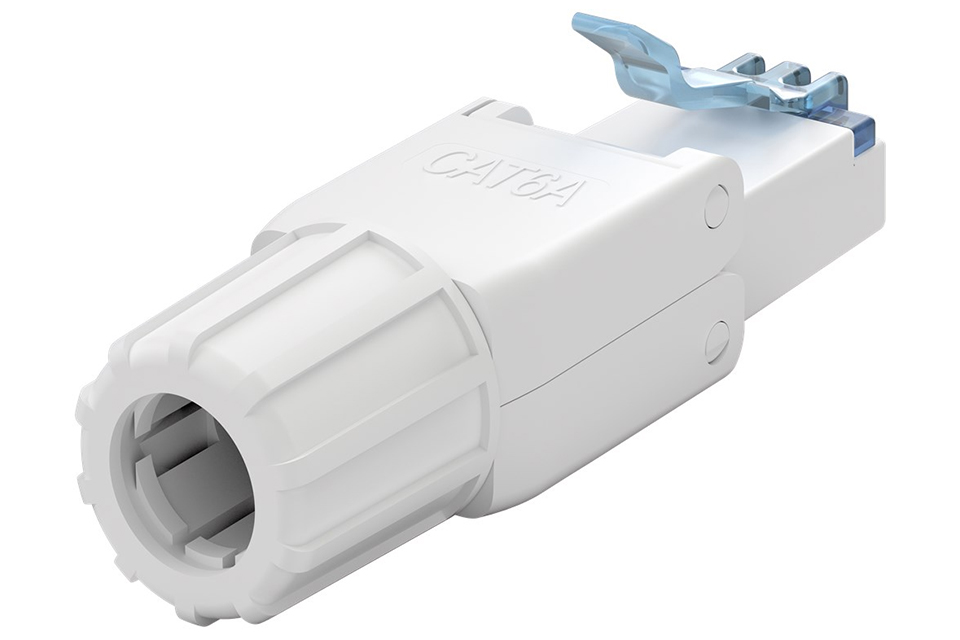

The RJ45 connector is equipped with 3-µm gold-plated contacts for long-lasting reliability and excellent connectivity. It fits cables with an outer diameter from 5.0 to 8.5 mm and includes a screw cap for added strain relief and stability. Thanks to its user-friendly design, it's easy to create custom-length network cables.

Specifications:

• Connector type: RJ45 male (8P8C)
• Secondary connection: IDC connection (tool-free)
• Contact material: Gold-plated 3 µm
• Number of pins: 8
• Category: CAT 6A
• Shielding: UTP
• Bandwidth: Up to 500 MHz
• Supports: 10GBase-T, PoE++, IEEE802.3bt
• Compatible conductors: AWG 22-24, solid and stranded
• Insulated conductor diameter: Ø 1.0 mm - 1.5 mm

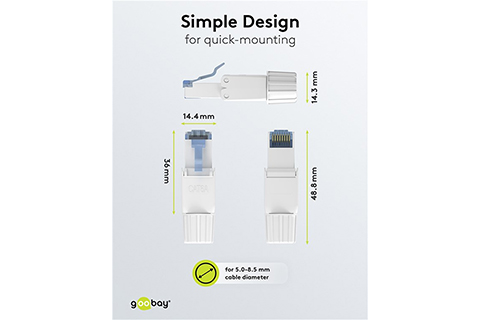

• Cable diameter: Ø 5.0 mm - 8.5 mm
