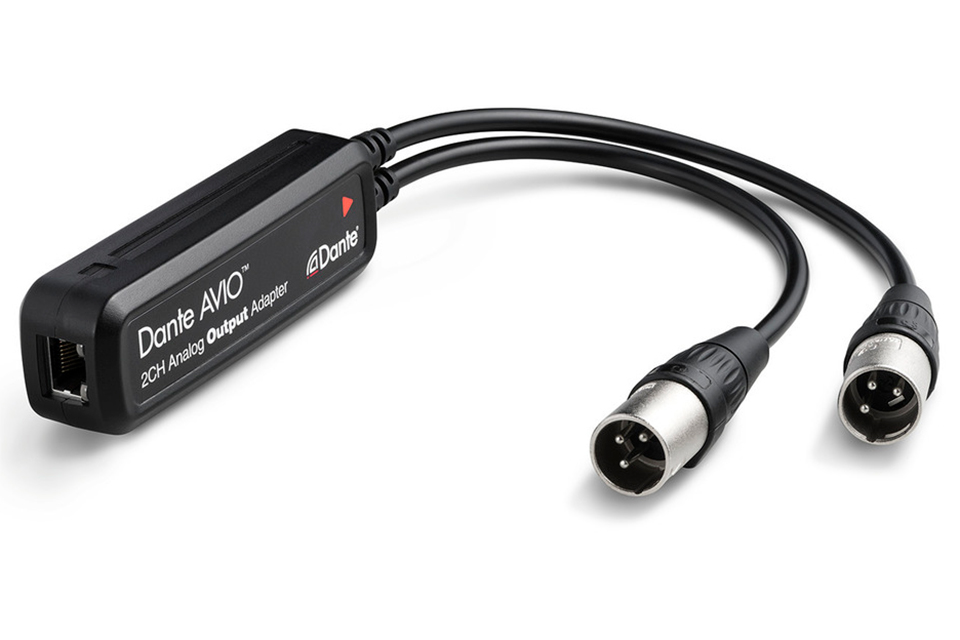

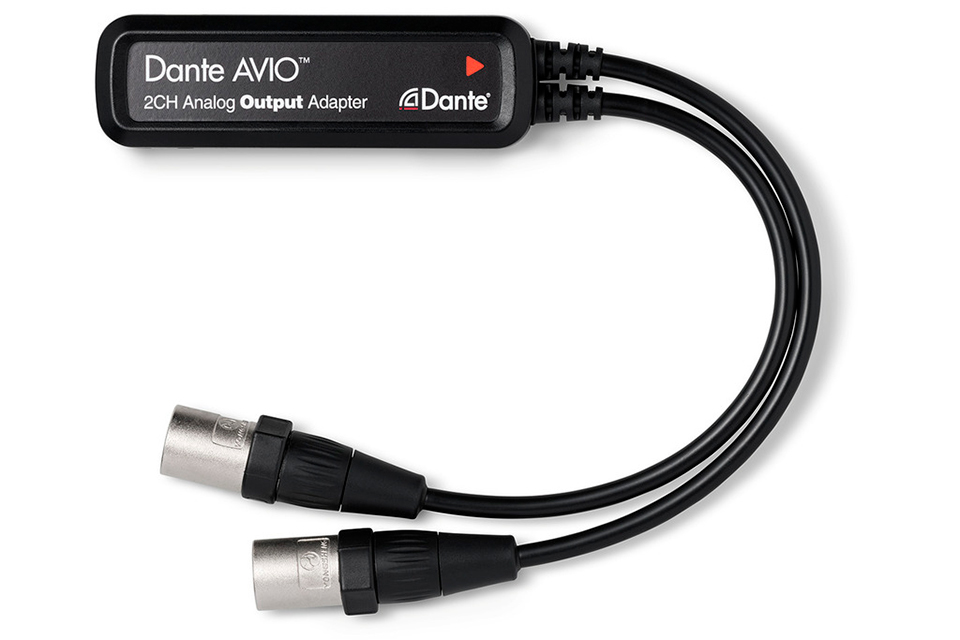

Audinate ADP-DAO-0X2 Dante stereo balanced output adapter

Dante 2-channel analog output adapter, connect your analog devices to a Dante® network with adjustable signal and high audio quality

Starts at 255 EUR /pc.

Choose variant for price and delivery

AV-CONNECTION

Fast worldwide delivery

+20 years of experience

30 days return policy

Price protection

5-star customer service

Highlights:

• Connects analog devices to Dante® networks
• 2-channel output with XLR connectors
• Adjustable signal level via Dante® Controller
• Supports 44.1/48/96 kHz and 24-bit resolution
• Ultra-low distortion (< 0.01%)
• Dynamic range and S/N ratio > 100 dB
• Powered via PoE
• Compact and lightweight – only 165 g

Connect analog devices to your Dante® network:

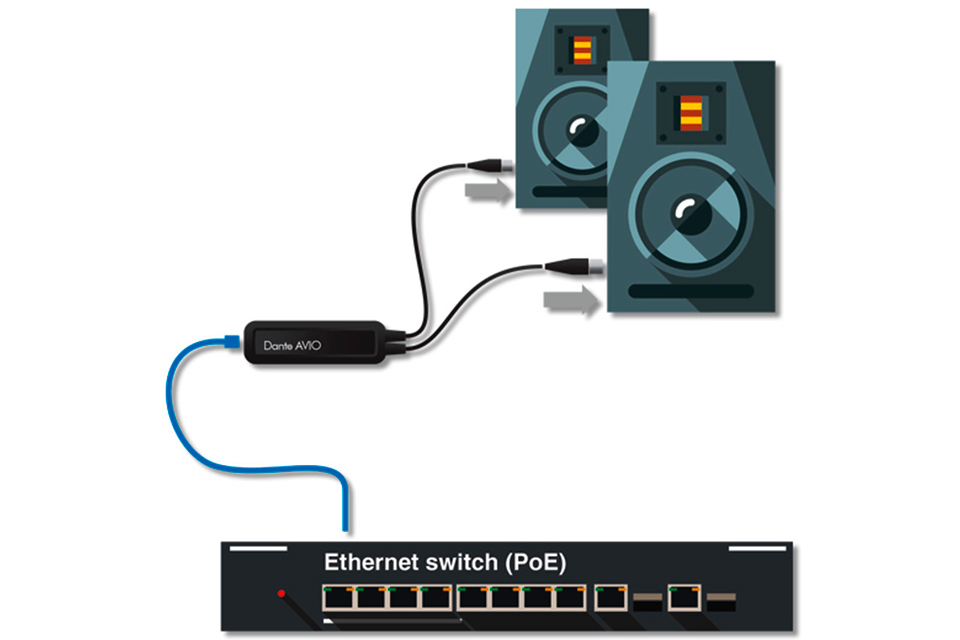

The ADP-DAO-0X2 is a high-performance 2-channel Dante® analog output adapter designed to integrate analog audio sources, such as active speakers, into a Dante® digital network. With adjustable signal levels and a frequency response of 20–20,000 Hz, it delivers professional audio quality with minimal distortion. All settings are easily managed via the Dante® Controller software. The compact unit is PoE-powered, eliminating the need for an external power supply. Ideal for AV installations, sound studios, and live sound applications.

Specifications:

• Type: 2-channel Dante® analog output adapter
• Adjustable signal level: +18/+4/0 dBu, 0/-10 dBV
• Frequency range: 20–20,000 Hz
• Impedance: 150 kOhm (balanced), 75 kOhm (unbalanced)
• Dynamic range: > 100 dB
• S/N ratio: > 100 dB
• THD: < 0.01%
• Sampling rates: 44.1/48/96 kHz
• Resolution: 24-bit
• Connections: 1 x RJ45, 2 x 3-pin male XLR
• Power supply: PoE
• Color: Black
• Weight: 165 g
