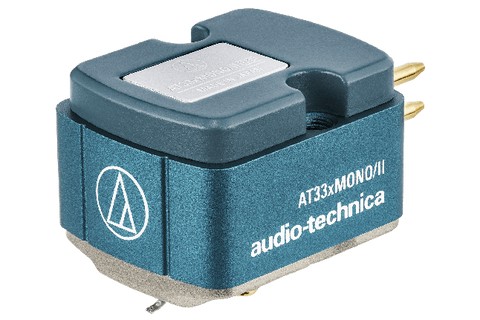

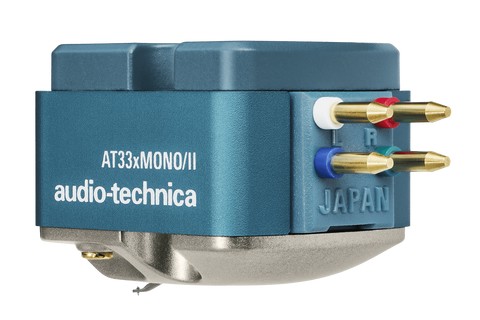

Audio-Technica AT33MONO/II MC cartridge

True Mono MC cartridge with nude 0.65 mil conical stylus, dual PCOCC coils and resonance-damped body for precise mono playback

Product no:

439 EUR /pc.

Add to cart

AV-CONNECTION

Fast worldwide delivery

+25 years of experience

30 days return policy

5-star customer service

Price protection

Highlights:

• True Mono MC cartridge with dual moving coils
• 0.65 mil nude conical stylus for mono records
• Responds to horizontal movement while reducing the influence of vertical noise components
• PCOCC coils provide clean and smooth signal transmission
• Composite body of die-cast zinc, aluminium and polymer reduces and disperses resonances
• Newly developed suspension with piano wire provides precise tracking
• Threaded mounting holes allow installation with just two screws
• Made and hand-finished in Japan

True Mono design for mono records:

The Audio-Technica AT33xMONO/II is a Moving Coil cartridge developed specifically for monophonic playback. Its True Mono design uses two moving coils that generate electrical signals from the horizontal movement of the stylus in the record groove. Vertical noise components picked up from the groove therefore do not contribute to the signal in the same way. The result is clear mono reproduction with reduced surface noise and greater substance in the lower frequencies.

The dual mono coil design also makes the cartridge suitable for playing mono records through a stereo system. PCOCC coils, a samarium-cobalt magnet and a pure iron yoke work together to provide efficient signal generation and clean signal transmission. The construction is optimised for monophonic reproduction and is particularly well suited to preserving the warmth and body of acoustic recordings, including mono jazz recordings from the 1950s and 1960s.

Nude conical stylus and newly developed suspension:

The AT33xMONO/II uses a nude conical stylus with a radius of 0.65 mil. The conical profile is well suited to tracking the consistent width and depth of mono record grooves. The stylus is mounted on a duralumin pipe cantilever designed for responsive and stable tracking.

A newly developed suspension with piano wire and a rubber damper gives the cartridge a dynamic compliance of 6 × 10^-6 cm/dyne at 100 Hz. The relatively firm construction is designed for precise tracking and contributes to greater substance in the midrange and lower frequencies. The recommended tracking force is 2.5 g, with a specified operating range of 2.3-2.7 g.

Body designed for controlled resonance:

The cartridge body combines die-cast zinc, aluminium and a high-rigidity polymer. The materials are arranged to reduce and disperse resonances throughout the construction, preventing individual frequency ranges from being unnecessarily emphasised. The die-cast zinc base provides high mass and rigidity, helping to suppress unwanted vibrations and support balanced reproduction, particularly in the midrange and bass.

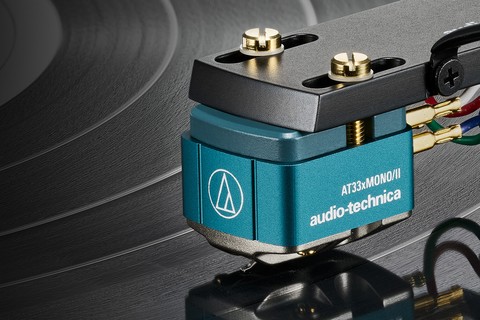

Installation is simplified by integrated M2.6 threaded mounting holes. The cartridge can therefore be secured with two screws without separate nuts, which is also practical when installing it on headshells integrated into the tonearm. The connection pins feature thick gold plating to reduce contact resistance.

Specifications:

• Type: monophonic Moving Coil cartridge with dual moving coils
• Frequency response: 20-20,000 Hz
• Output voltage: 0.37 mV at 1 kHz, 5 cm/sec., horizontal signal
• Horizontal/vertical output ratio: 25 dB at 1 kHz
• Output balance: 1.0 dB at 1 kHz
• Recommended tracking force: 2.5 g
• Tracking force range: 2.3-2.7 g
• Recommended load impedance: = 100 Ohm when connected to a head amplifier
• Coil impedance: 10 Ohm at 1 kHz
• DC resistance: 10 Ohm
• Coil inductance: 27 µH at 1 kHz
• Dynamic compliance: 6 × 10^-6 cm/dyne at 100 Hz
• Static compliance: 14 × 10^-6 cm/dyne
• Stylus type: nude conical
• Stylus radius: 0.65 mil
• Cantilever: duralumin pipe
• Vertical tracking angle: 20°
• Dimensions: 1.61 x 1.66 x 2.61 cm (H x W x L)
• Weight: 10.2 g
• Mounting thread: M2.6 x 2
• Included accessories: non-magnetic screwdriver, brush, 2 washers, mounting screws and stylus protector

AT-33XMONOII: Audio-Technica AT33MONO/II MC cartridge
