• Fits 77" TVs from major brands using a universal TV bracket
• Can be wall-mounted or placed on the floor using the included stand
• 250-watt 4-channel Class D HiFi amplification
• Frequency range from 28 Hz to 24,000 Hz
• Replaceable magnetic 77" front in fabric or real wood
• Supports HDMI eARC, AirPlay 2, Google Cast, Roon, Spotify Connect and Tidal Connect
• Automatic OTA software updates and upgradeable electronics

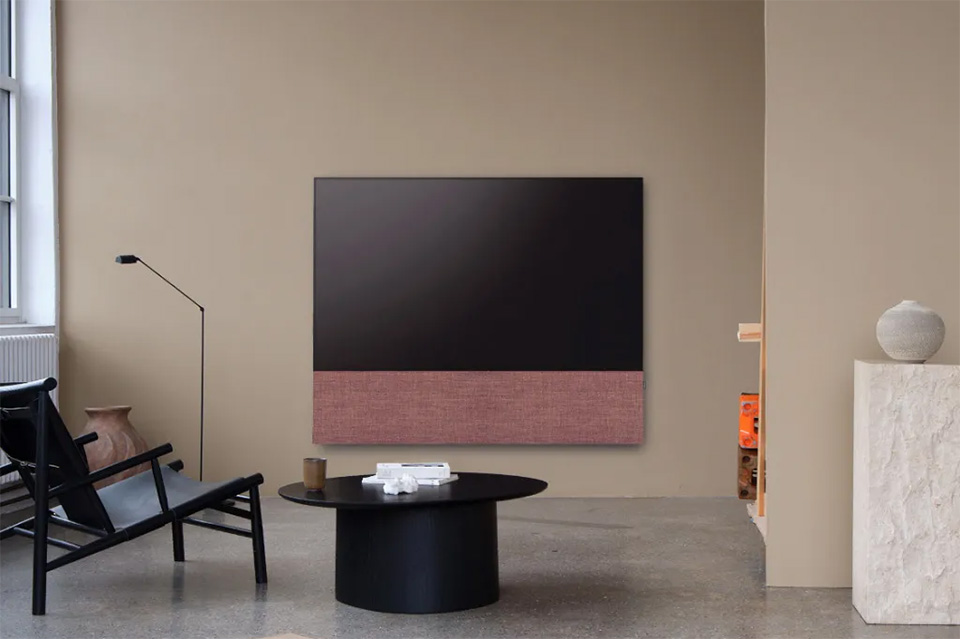

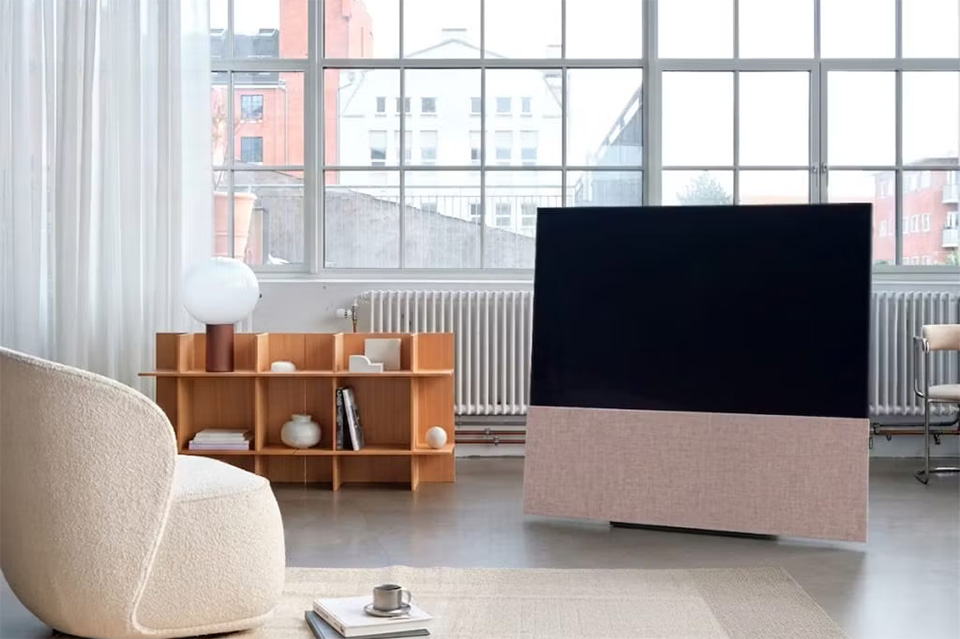

CANVAS for 77" TVs combines the television and audio system in one integrated solution without the need for a conventional soundbar. The universal TV bracket is designed for TVs from brands including Sony, Panasonic and LG. The included floor stand and wall bracket let you choose between freestanding and wall-mounted installation.

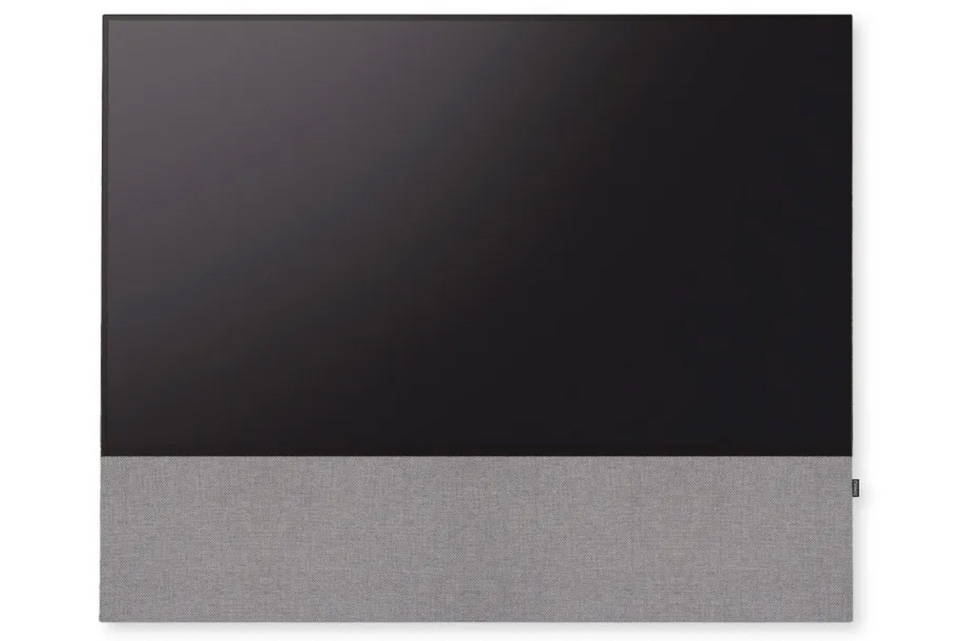

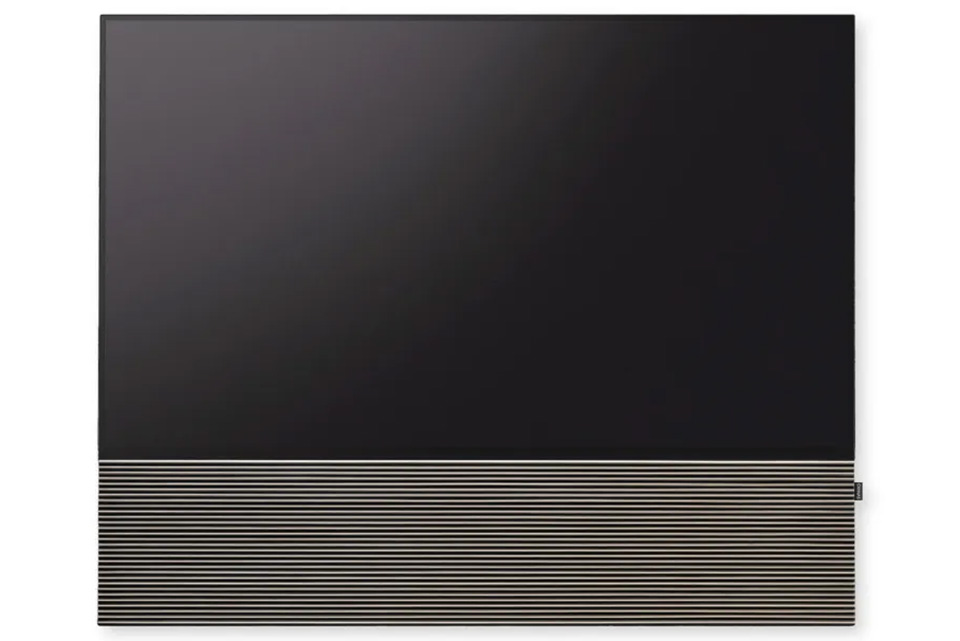

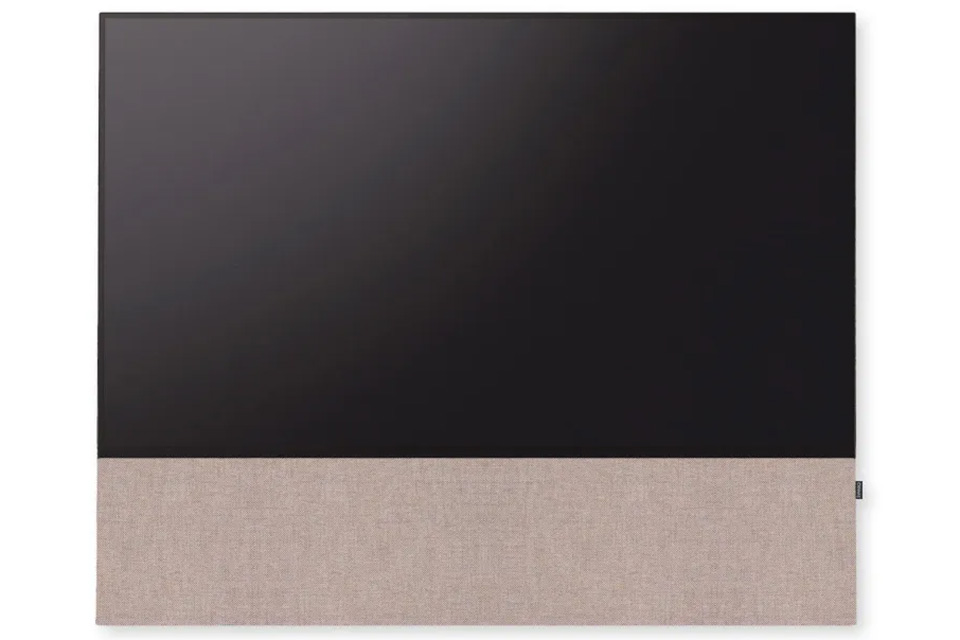

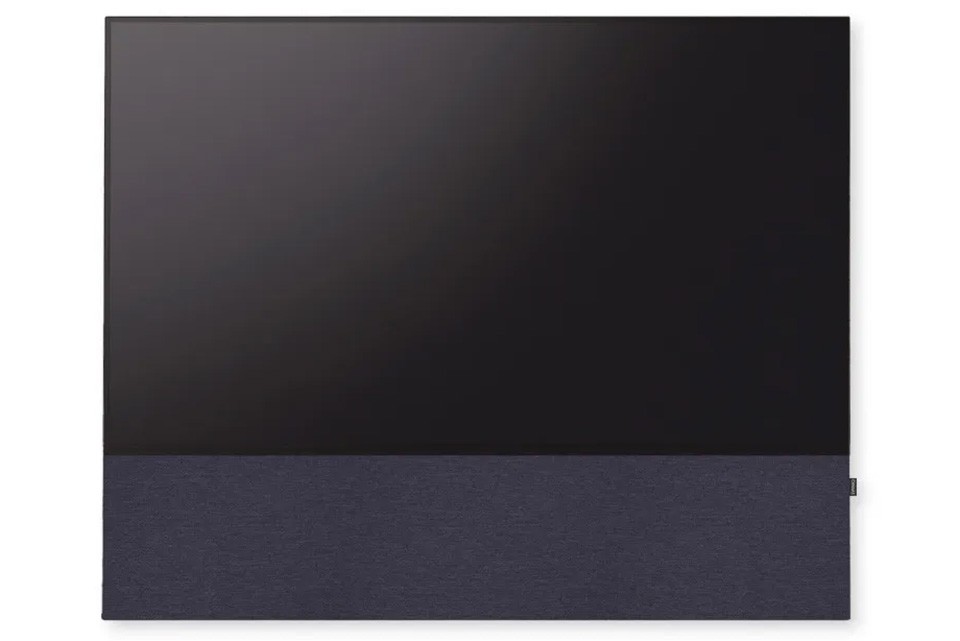

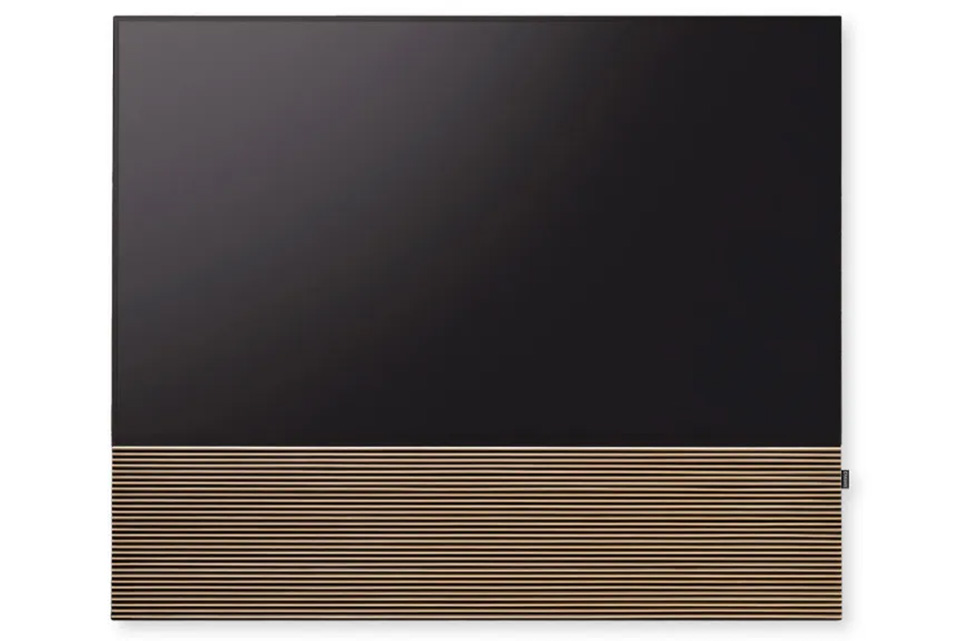

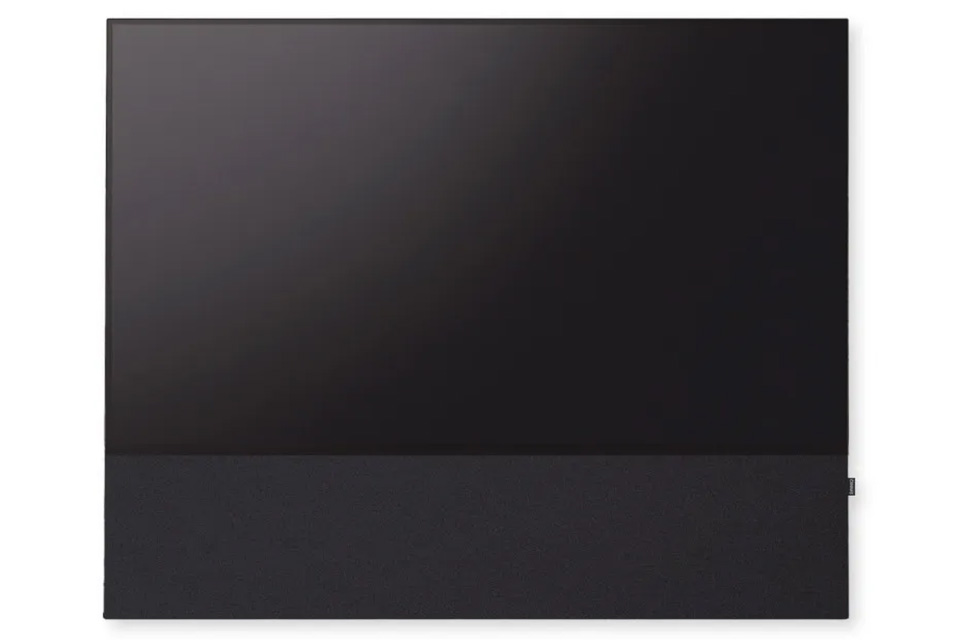

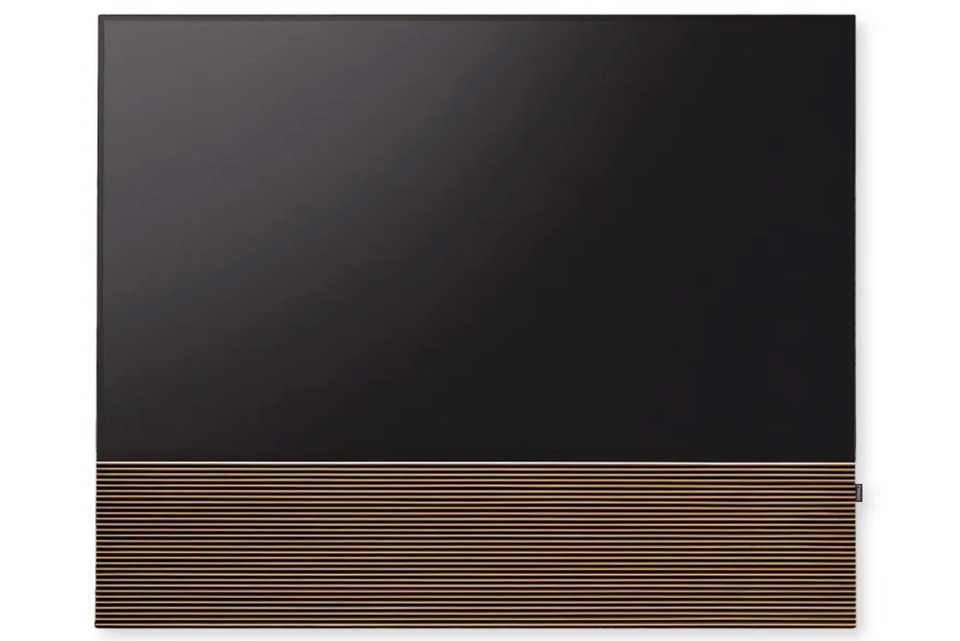

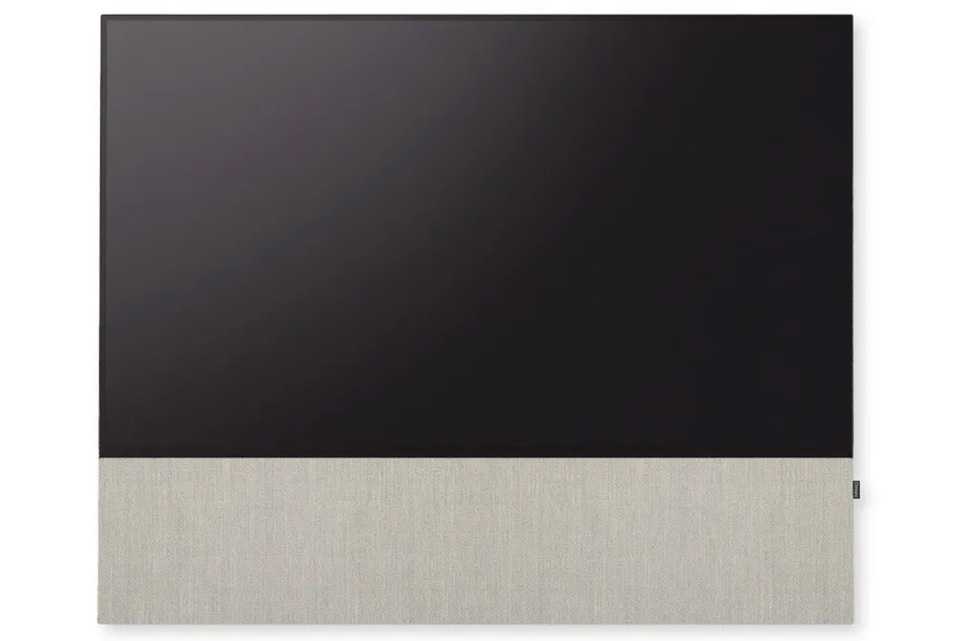

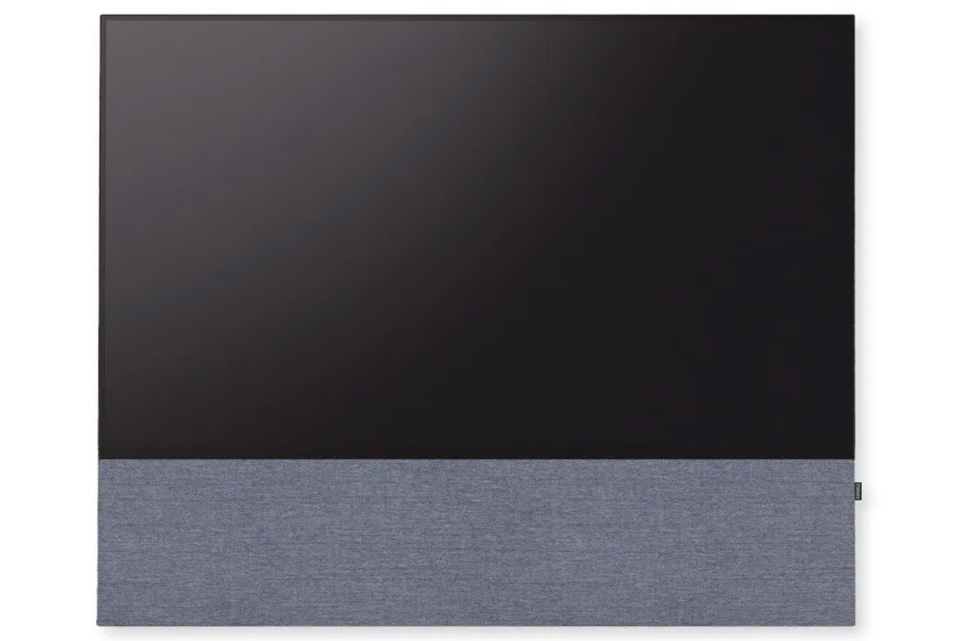

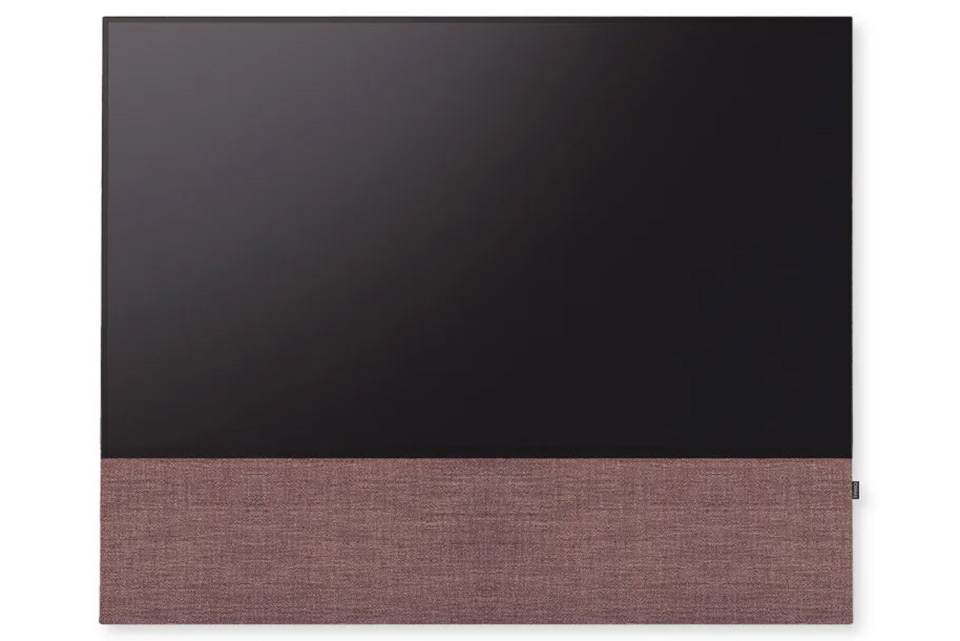

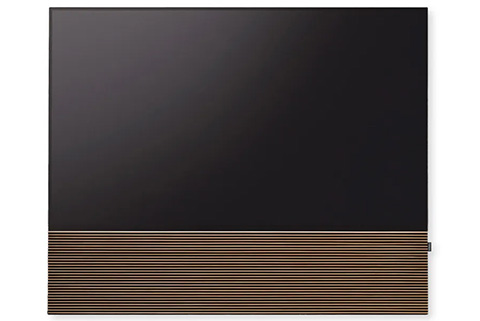

The magnetic 77" front matches the width of the TV and is available in several finishes, including Kvadrat fabric and real wood. The front can be removed and replaced, allowing the appearance of the speaker to be adapted to the interior.
The cabinet is made from MDF and uses CANVAS BridgeBrace technology. Its internal volume of 24 litres provides a stable foundation for the speaker and supports deep, controlled bass reproduction.
The speaker system features two 6.5" bass and midrange drivers from SB Acoustics. The drivers use paper cones and die-cast aluminium baskets. Two 29 mm silk dome tweeters with specially developed waveguides reproduce the higher frequencies, while two passive radiators support the deep bass.
The signal is processed through a DSP-based linear-phase FIR filter, which controls the interaction between the speaker drivers. Four Class D HiFi amplifiers deliver a total output of 250 watts, while the system covers a frequency range from 28 Hz to 24,000 Hz.
Internal signal processing is handled by an Analog Devices quad-core DSP with a BACCH 3D filter. Burr-Brown DACs with 24-bit/192 kHz resolution handle digital signal conversion.
HDMI eARC transfers sound directly from a compatible TV, while Toslink and an analogue audio input allow additional audio sources to be connected. The system also supports Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA for wireless streaming and multiroom audio.
Room correction is carried out through the iOS app using the iPhone's built-in microphone or the optional Zen Mic. The software can be updated automatically via OTA, and the electronics are designed to allow future hardware upgrades.
An external control unit can be hidden inside CANVAS and used for automatic detection of audio signals from existing systems. This enables integration with a range of established control platforms.
With the
HiFi Frame | 77", you can bring your TV and CANVAS soundbar together in a stylish piece of furniture. The frame turns your TV setup into a complete high-end design that can be adapted to your living room.
Your CANVAS soundbar can be mounted on the wall or placed on a floor stand. Installation takes some preparation, so we recommend watching the
installation walkthrough before you begin. You are also welcome to
contact us if you need help choosing the option that best suits your TV and your room.
• TV compatibility: Universal TV bracket for 77" TVs from brands including Samsung, Sony, Panasonic and LG
• Installation: Freestanding or wall-mounted using the included floor stand and wall bracket
• Front: Magnetically attached, replaceable 77" front in fabric or real wood
• Cabinet: 24-litre MDF cabinet with CANVAS BridgeBrace technology
• Bass/midrange: 2 x 6.5" SB Acoustics drivers with paper cones
• Tweeters: 2 x 29 mm SB Acoustics silk dome tweeters
• Passive radiators: 2 x SB Acoustics passive radiators
• Crossover: DSP-based linear-phase FIR filter
• Amplifiers: 4-channel Class D with a total output of 250 watts
• DAC: Burr-Brown 24-bit/192 kHz
• DSP: Analog Devices quad-core 300 MIPS with BACCH 3D filter
• Frequency range: 28 Hz - 24,000 Hz
• Signal-to-noise ratio: Above 103 dB
• THD+N: Below 0.05%
• Room correction: Via iOS app using an iPhone microphone or optional Zen Mic
• Connections: HDMI eARC, Toslink and analogue audio input
• Streaming: Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA
• Software updates: Automatic OTA updates
• Hardware: Upgradeable electronics
• Power supply: AC 100-240 V, 50-60 Hz
• Dimensions, wall-mounted including bracket and front: 36.9 x 171.6 x 12.6 cm (H x W x D)
• Dimensions, freestanding including stand and front: 37.3 x 171.6 x 19.8 cm (H x W x D)
• Dimensions, CANVAS with 77" TV: Approx. 135.7 x 171.6 cm (H x W)
• CANVAS unit dimensions: Approx. 33.0 x 121.0 x 12.0 cm (H x W x D)
• CANVAS unit depth without bracket: 11.0 cm
• CANVAS unit weight without packaging: 26.5 kg
• Wood front with bracket weight without packaging: 10.1 kg
• Fabric front with bracket weight without packaging: 9.1 kg
• Included: CANVAS speaker, 77" front, floor stand, wall bracket, TV bracket, cables, screws and mounting accessories
