• Fits 55" TVs from all major brands with a universal TV mount
• Can be wall-mounted or floor-standing using the included stand
• 250-watt 4-channel Class D HiFi amplification
• Frequency response from 28 Hz to 24,000 Hz
• Interchangeable magnetic front in fabric or real wood
• Supports HDMI eARC, AirPlay 2, Google Cast, Roon, Spotify Connect and Tidal Connect
• Automatic OTA software updates and upgradeable hardware

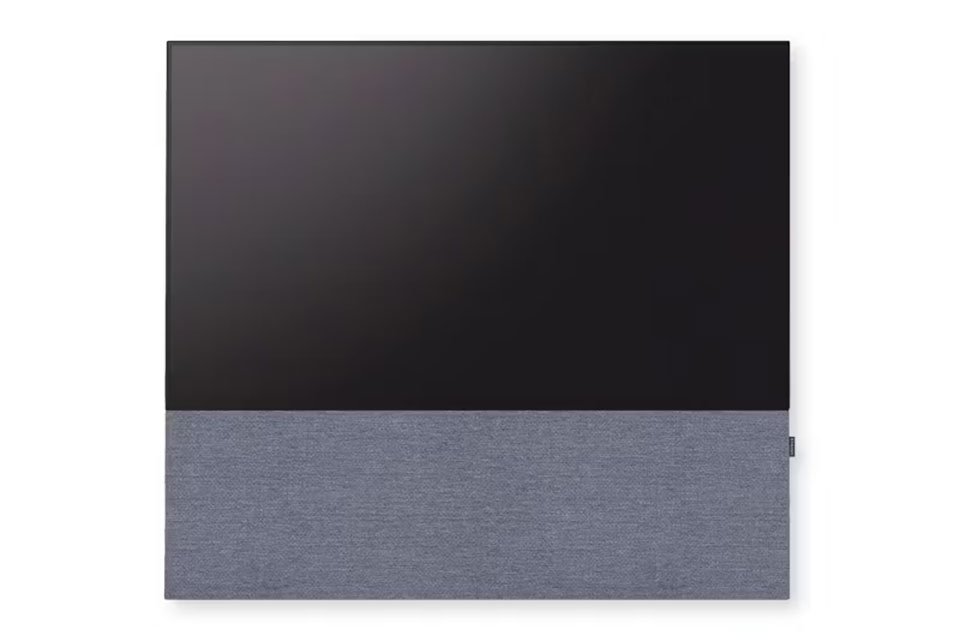

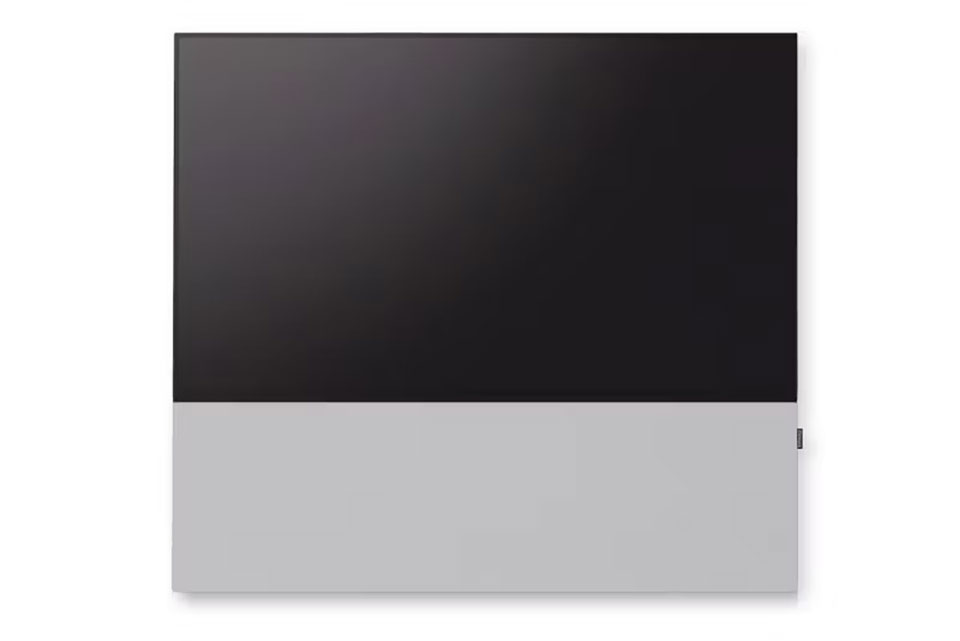

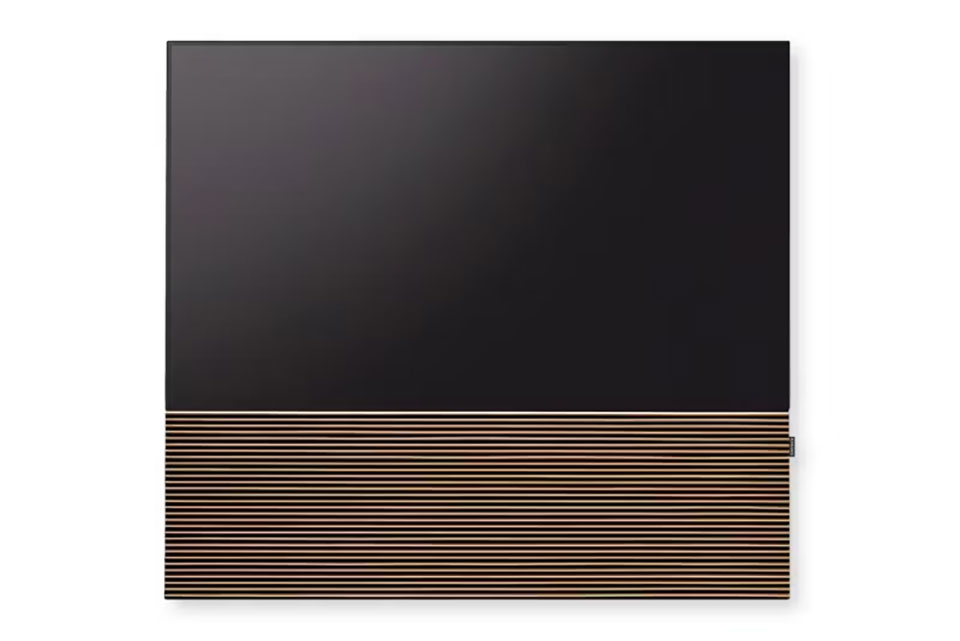

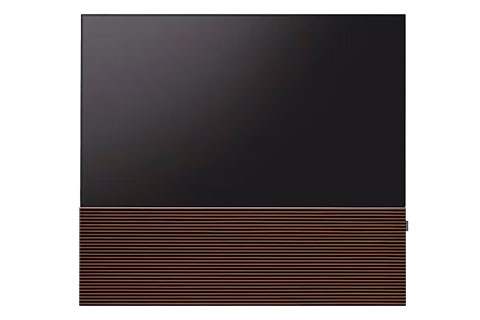

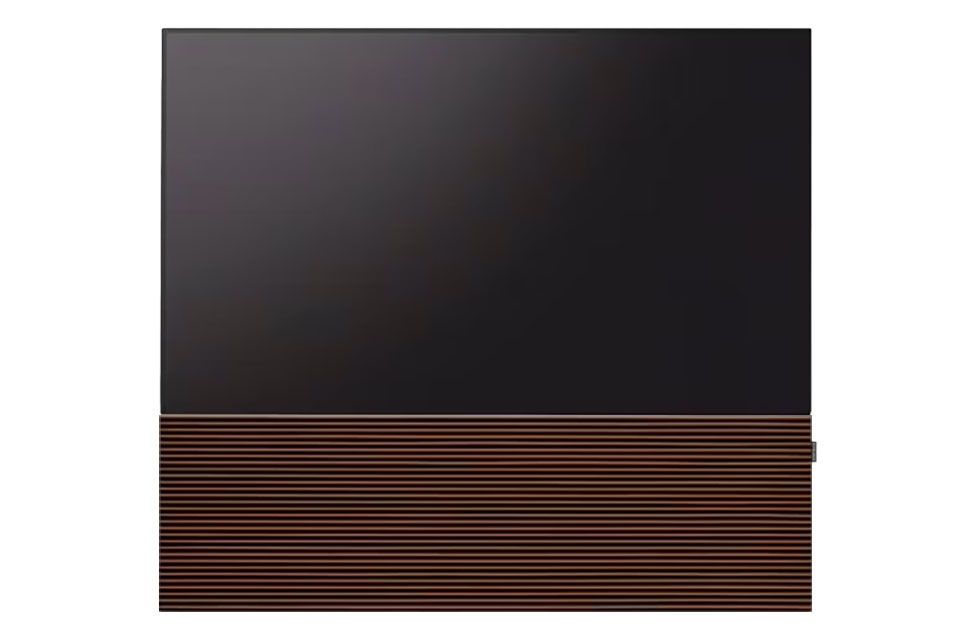

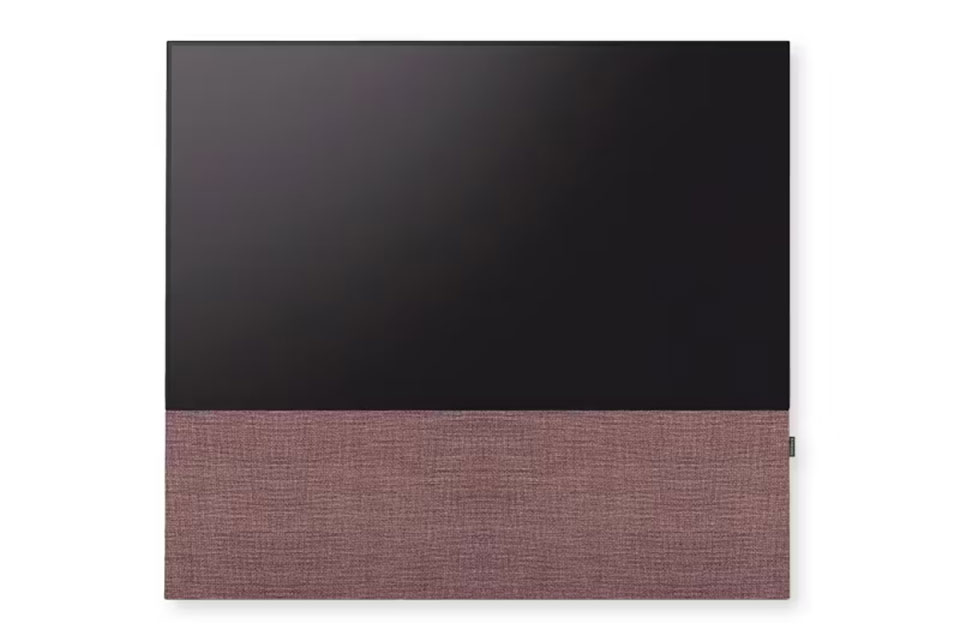

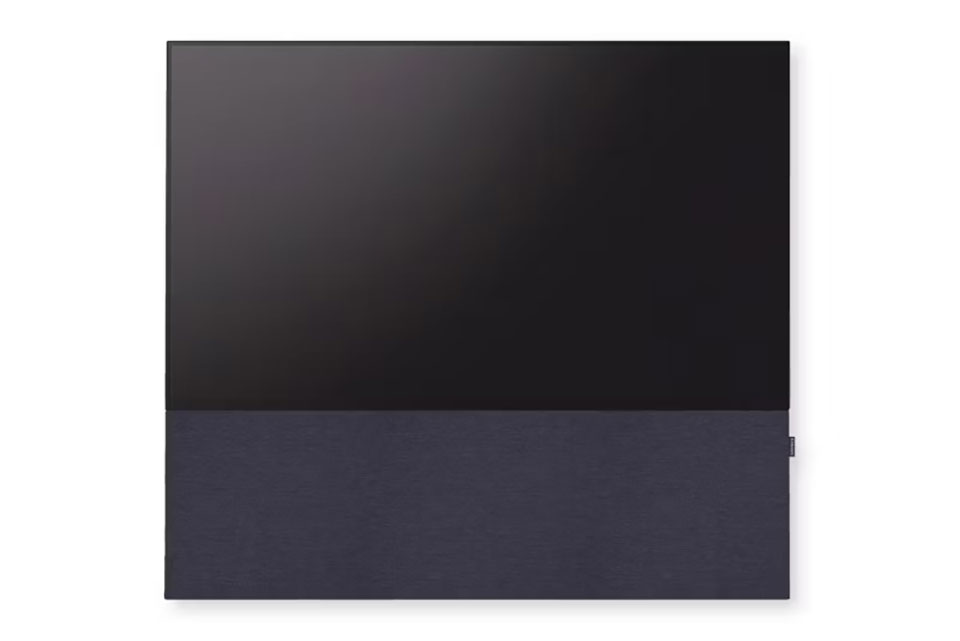

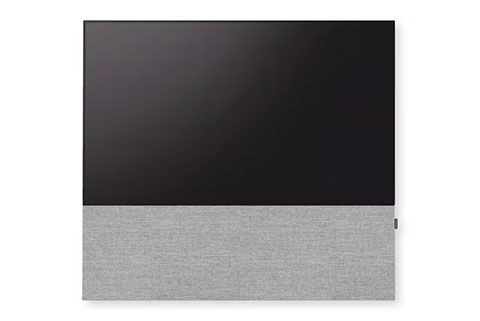

CANVAS for 55" TVs is designed to combine your television and audio system into one elegant solution without the need for a traditional soundbar. The universal TV bracket is compatible with TVs from brands including Sony, Panasonic and LG, while the included stand and wall bracket allow both floor-standing and wall-mounted installation. The included 55" front matches the width of your TV and is available in a range of finishes, including Kvadrat fabric and real wood, allowing it to blend naturally into your interior. The magnetic front can easily be replaced whenever you want a different look.
The enclosure is built from MDF using CANVAS BridgeBrace technology and features an internal volume of 24 litres. This rigid cabinet construction provides a stable foundation for the speaker system and contributes to deep, controlled bass performance.
The speaker features two 6.5" SB Acoustics paper-cone woofers/midrange drivers housed in die-cast aluminium baskets, together with two 29 mm SB Acoustics silk dome tweeters fitted with specially designed waveguides. Two passive radiators reinforce the low frequencies, while a DSP-based linear phase FIR crossover ensures precise signal processing across the drivers.
Four Class D HiFi amplifiers deliver a combined output of 250 watts. Combined with the large cabinet volume, dedicated drive units and passive radiators, the system achieves high efficiency and a frequency response extending from 28 Hz to 24,000 Hz. Signal processing is handled by an Analog Devices quad-core DSP with BACCH 3D filtering, while Burr-Brown 24-bit/192 kHz DACs provide high-resolution digital conversion.
CANVAS supports HDMI eARC for TV audio, along with Toslink and analogue audio inputs. Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA are built in, providing multi-room audio and wireless streaming from a wide range of devices and music services.
Room correction is performed through the iOS app using the built-in microphone of an iPhone or the optional Zen Mic. Software updates are delivered automatically over the air, while the internal electronics are designed to be upgradeable. Automatic input switching via an external control unit hidden inside CANVAS also allows integration with a variety of existing audio control platforms.
With the
HiFi Frame | 55", you can bring your TV and CANVAS soundbar together in a beautifully designed piece of furniture. The frame gives the screen and soundbar a unified look that you can adapt to your living room.

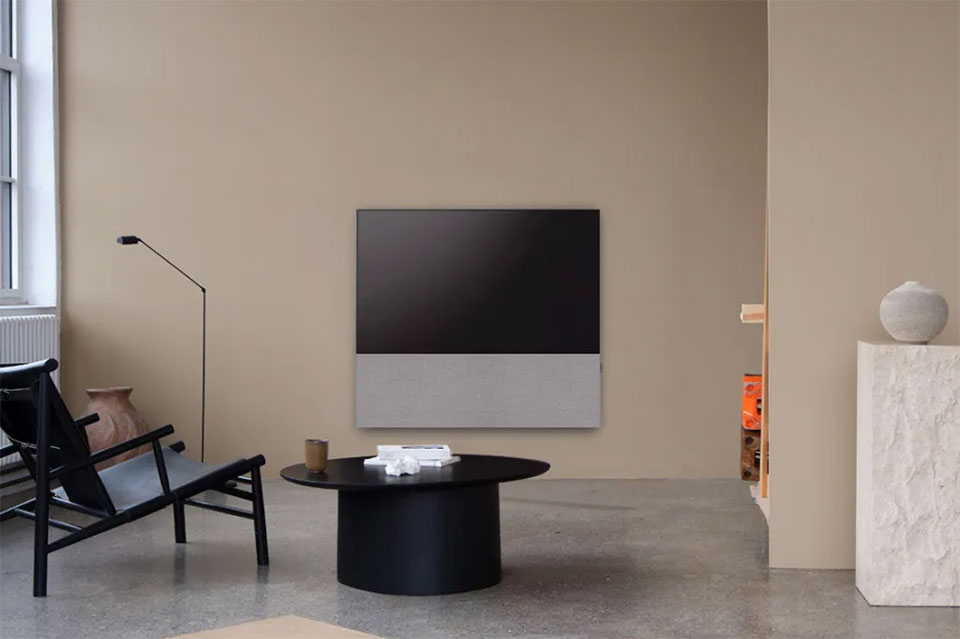

Your CANVAS soundbar can be mounted on the wall or placed on a floor stand. Installation takes some preparation, so we recommend watching the
installation walkthrough before you begin. You are also welcome to
contact us if you need help choosing the option that best suits your TV and your room.
• TV compatibility: Universal TV mount for 55" TVs from Samsung, Sony, Panasonic, LG and other brands
• Installation: Floor-standing or wall-mounted with included stand and wall bracket

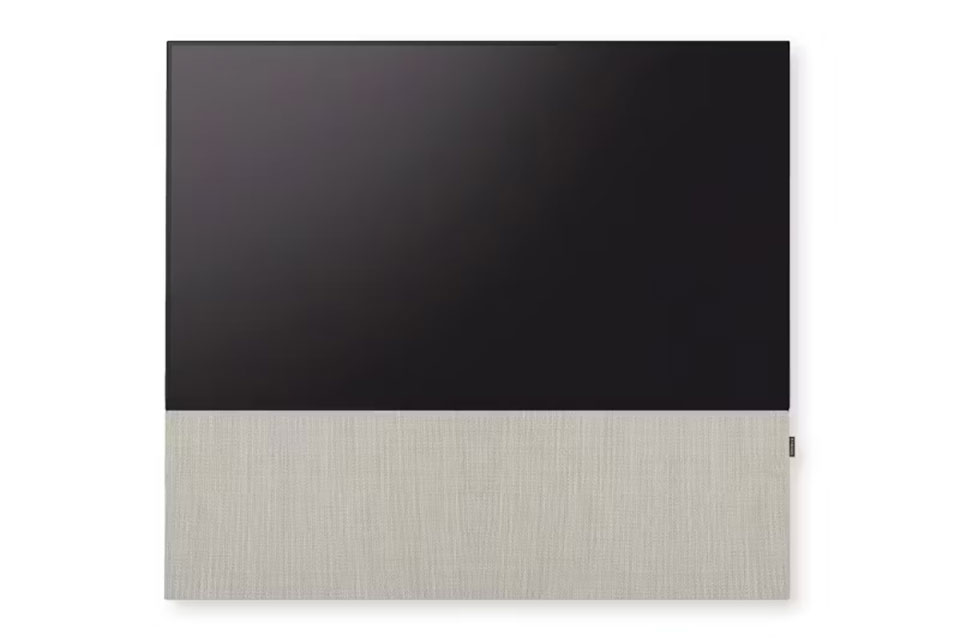

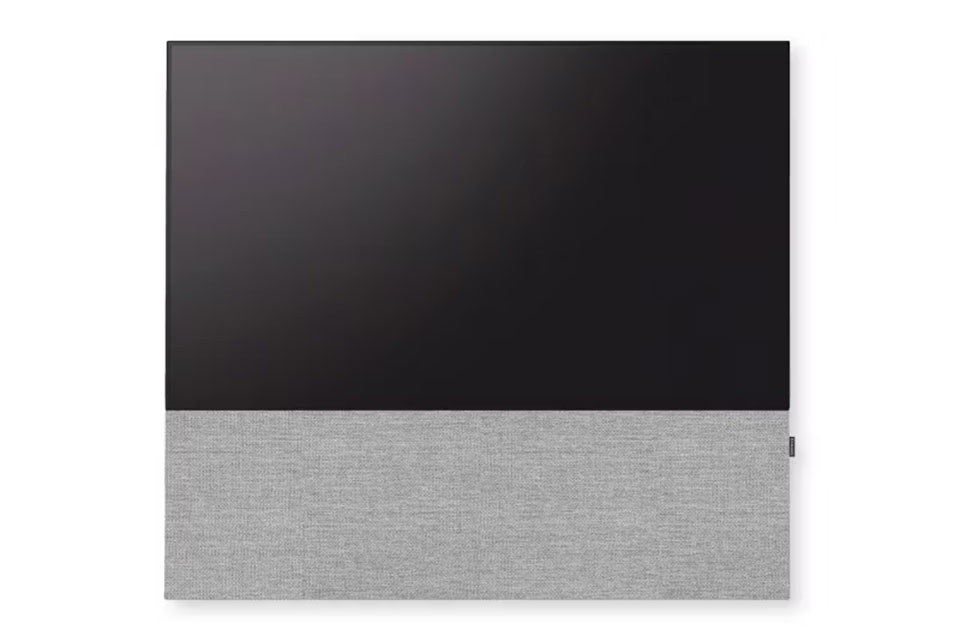

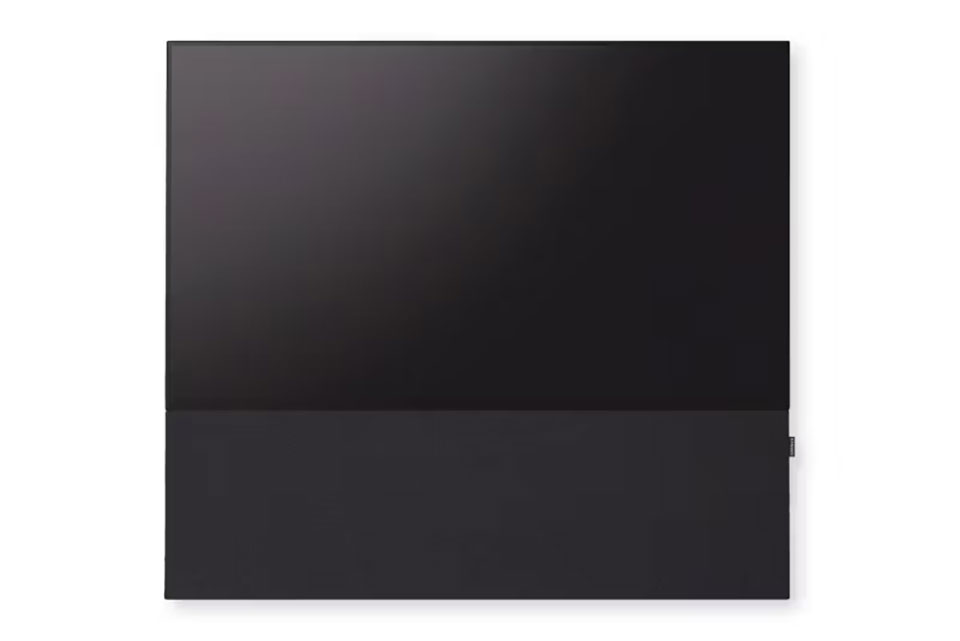

• Front: Magnetic interchangeable fabric or real wood front
• Cabinet: 24-litre MDF enclosure with CANVAS BridgeBrace technology
• Woofers/midrange: 2 x 6.5" SB Acoustics paper-cone drivers
• Tweeters: 2 x 29 mm SB Acoustics silk dome tweeters
• Passive radiators: 2 x SB Acoustics passive radiators
• Crossover: DSP linear phase FIR
• Amplifiers: 4-channel Class D, total 250 watts
• DAC: Burr-Brown 24-bit / 192 kHz
• DSP: Analog Devices 300 MIPS quad-core with BACCH 3D filter
• Frequency response: 28 Hz - 24,000 Hz
• Signal-to-noise ratio: Above 103 dB
• THD+N: Below 0.05%
• Room correction via iOS app using iPhone microphone or optional Zen Mic
• Connections: HDMI eARC, Toslink, analogue audio input
• Streaming: Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA
• Software updates: Automatic OTA
• Hardware: Upgradeable electronics
• Power supply: AC 100-240 V, 50-60 Hz
• Wall-mounted dimensions including front: 122.6 x 36.9 x 12.6 cm (W x H x D)
• Floor-standing dimensions including front: 122.6 x 37.3 x 19.8 cm (W x H x D)
• CANVAS unit: Approx. 121.0 x 33.0 x 12.0 cm (W x H x D)
• CANVAS unit weight: 26.5 kg
• Wood front with bracket: 6.8 kg
• Fabric front with bracket: 5.8 kg
• Included: CANVAS speaker, 55" front, stand, wall bracket, TV bracket, cables, screws and mounting accessories
