Raidho Acoustics X1.6 Reference speaker pair

Raidho Acoustics
Raidho Acoustics X1.6 Reference Speaker Pair - Black
Raidho Acoustics X1.6 Reference Speaker Pair - White
Raidho Acoustics X1.6 Reference Speaker Pair - Detail
Raidho Acoustics X1.6 Reference Speaker Pair - Detail
Raidho Acoustics X1.6 Reference Speaker Pair - Detail

Compact 2-way standmount speaker with Raidho Ribbon tweeter, 6.5" Ceramix driver and solid 20 mm cast aluminium front baffle.

Inventory icon
Leadtime icon small
Choose variant for price and delivery
MasterCardVISAKlarna

Highlights:

• Compact 2-way standmount speaker with Raidho drivers developed and manufactured in Denmark
• Planar Magnetic Ribbon tweeter with an ultra-light 11-micron foil weighing just 20 mg
• 6.5" Raidho Ceramix bass/midrange driver with an aluminium-ceramic diaphragm construction
• Solid 20 mm cast aluminium front baffle provides a stable foundation for the drivers
• Frequency range from 45 Hz to 50 kHz +/-3 dB
• Bass reflex cabinet with rear-mounted port
• Nominal impedance above 6 Ohm and sensitivity of 87 dB at 2.83 V/m

Compact Raidho speaker with advanced driver technology:

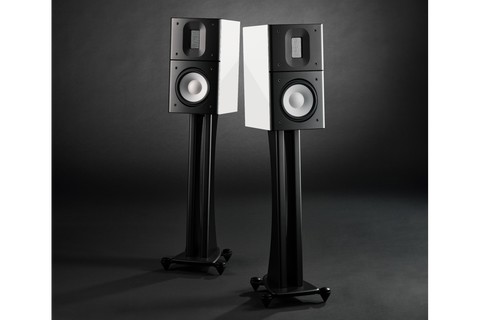

The Raidho X1.6 is a compact 2-way standmount speaker with a cabinet, drivers and choice of materials developed with a focus on precise and open reproduction. The front features a substantial 20 mm thick cast aluminium baffle. This solid construction provides a stable foundation for both Raidho's distinctive Ribbon tweeter and the 6.5" Ceramix bass/midrange driver.

The X1.6 uses a vented bass reflex design with the port positioned on the rear of the cabinet. Despite its compact dimensions, the specified frequency range extends down to 45 Hz at +/-3 dB. The combination of the large 6.5" driver and Raidho's proprietary tweeter technology makes the X1.6 an interesting choice for listeners seeking a compact speaker design without moving directly to a floorstanding model.

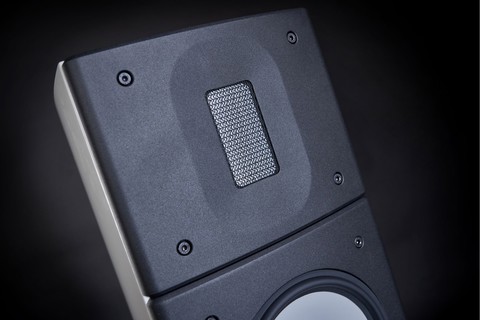

Planar Magnetic Ribbon tweeter with extremely low diaphragm mass:

The tweeter is Raidho's proprietary Planar Magnetic Ribbon design, developed and handcrafted in-house in Denmark. Its diaphragm consists of an exceptionally thin 11-micron foil weighing just 20 mg. According to Raidho, this results in approximately 50 times less mass than a conventional dome tweeter. The design does not use a traditional voice coil, as the electrical conductor tracks are integrated into the foil.

The extremely low moving mass is designed to reduce resonances and distortion while providing a fast response. Raidho specifies the tweeter's breakup frequency at 82 kHz, while the complete X1.6 speaker has a specified frequency range extending to 50 kHz at +/-3 dB. The two drivers cross over at 3.5 kHz, where the Ribbon tweeter takes over the upper frequency range from the Ceramix driver.

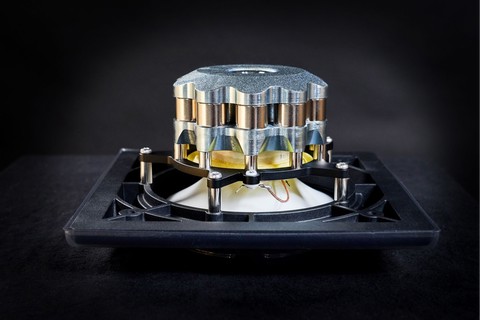

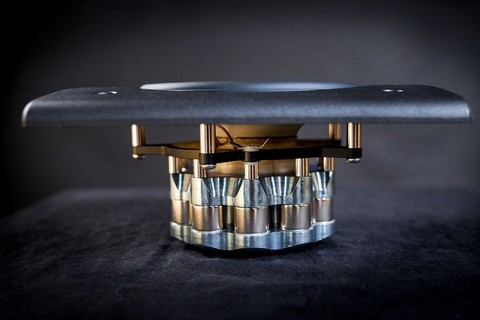

6.5" Ceramix driver developed and built by Raidho:

Bass and midrange frequencies are handled by Raidho's 6.5" Ceramix driver. The technology is based on a thin aluminium diaphragm, where the outer surface is converted into aluminium oxide ceramic through a plasma and high-voltage process. The result is a sandwich-like structure with rigid ceramic surfaces surrounding a softer aluminium core. Raidho has chosen this construction to combine high rigidity with effective internal damping and specifies the diaphragm's first breakup at 12.5 kHz.

The driver's motor system uses powerful neodymium magnets and an open construction that provides ventilation around a titanium voice coil. Together with the Ribbon tweeter, the Ceramix driver gives the X1.6 a technical foundation developed specifically for Raidho's X Series rather than relying on standard drivers from external suppliers.

Amplifier matching and compact dimensions:

With a sensitivity of 87 dB at 2.83 V/m and a nominal impedance above 6 Ohm, the X1.6 is specified for amplifier power above 50 W. Raidho's own user manual states 50 W as the minimum and recommends 100 W or more into 8 Ohm for the X1.6. This provides a practical reference when selecting an amplifier for the speaker.

The cabinet measures 36 x 20 x 26.5 cm (H x W x L), and each speaker weighs 11.5 kg. The relatively high weight compared with the cabinet dimensions is partly due to the substantial cast aluminium front baffle. The X1.6 is available in black piano lacquer or white piano lacquer, allowing the compact speaker to integrate into different stereo systems.

Specifications:

• Type: 2-way passive standmount speaker
• Cabinet principle: Bass reflex with rear-mounted port
• Tweeter: 1 x Raidho Planar Magnetic Ribbon Tweeter
• Tweeter diaphragm: 11-micron foil, 20 mg
• Tweeter breakup frequency: 82 kHz
• Bass/midrange: 1 x 6.5" Raidho Ceramix driver
• Ceramix diaphragm: Aluminium with an aluminium oxide ceramic surface
• Ceramix driver's first breakup: 12.5 kHz
• Crossover frequency: 3.5 kHz
• Frequency range: 45 Hz to 50 kHz +/-3 dB
• Sensitivity: 87 dB at 2.83 V/m
• Nominal impedance: Above 6 Ohm
• Amplifier power: Minimum 50 W, Raidho recommends 100 W or more into 8 Ohm
• Front baffle: 20 mm cast aluminium
• Connections: Compatible with banana plugs and large spade connectors
• Finish: Black piano lacquer or white piano lacquer
• Dimensions: 36 x 20 x 26.5 cm (H x W x L)
• Weight: 11.5 kg
Raidho Acoustics X1.6 | 1 pair
RDH-X16REF-BLK: Raidho Acoustics X1.6 | 1 pair
10.008,11 EUR
Add to cart
Raidho Acoustics X1.6 | 1 pair
RDH-X16REF-WHT: Raidho Acoustics X1.6 | 1 pair
10.008,11 EUR
Add to cart
