• Fits 85" TVs from leading brands with a universal TV mounting bracket
• Can be wall mounted or floor standing with the included stand
• 250 watt 4-channel Class D HiFi amplification
• Frequency response from 28 Hz to 24,000 Hz
• Interchangeable magnetic 85" front in fabric or real wood
• Supports HDMI eARC, AirPlay 2, Google Cast, Roon, Spotify Connect and Tidal Connect
• Automatic OTA software updates and upgradeable electronics

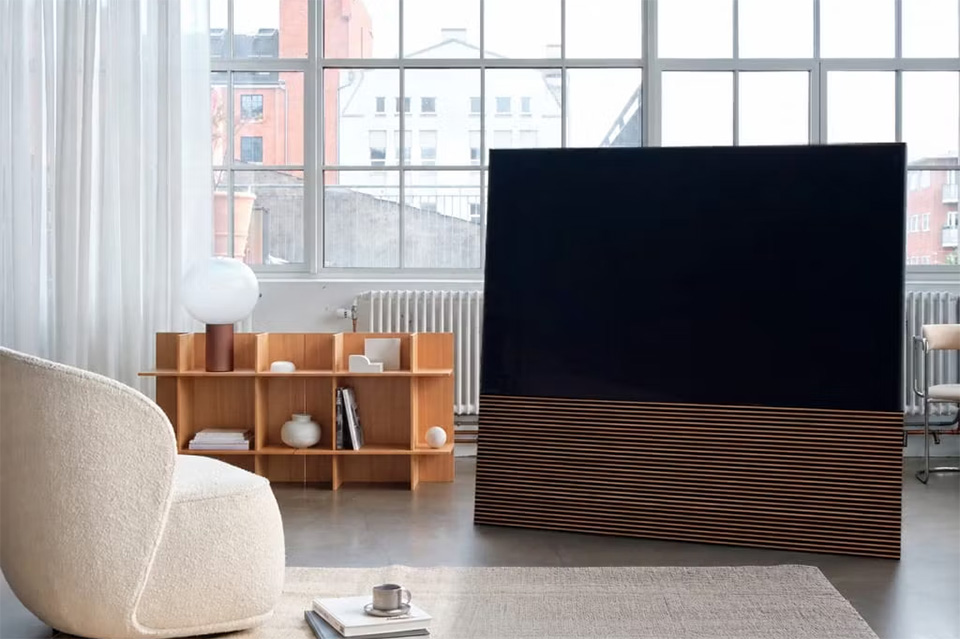

CANVAS for 85" TVs combines your television and sound system into one integrated solution without the need for a traditional soundbar. The universal TV bracket is designed for TVs from brands including Samsung, Sony, Panasonic and LG. The included floor stand and wall bracket allow you to choose between a freestanding or wall-mounted installation.

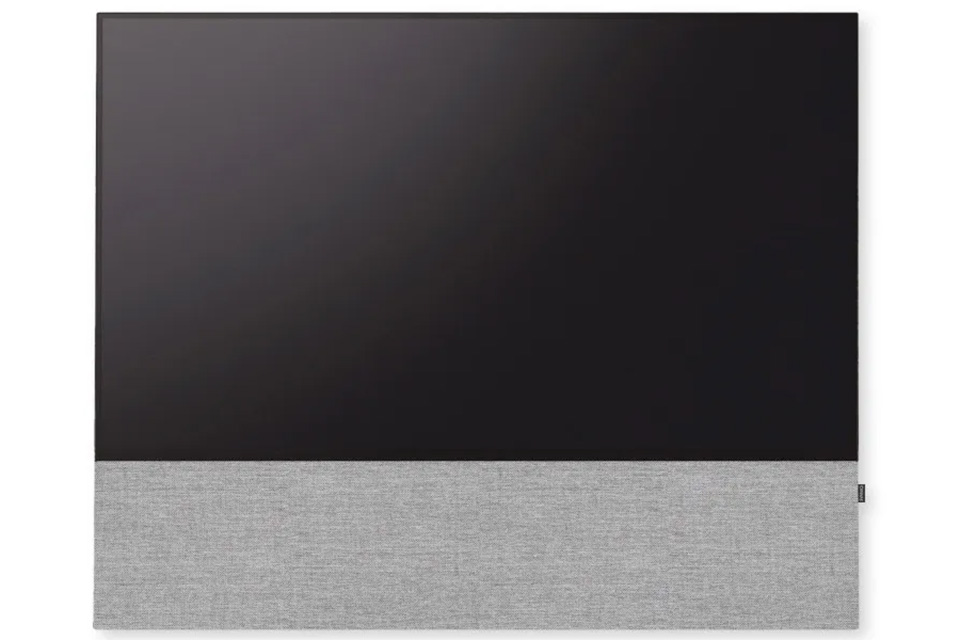

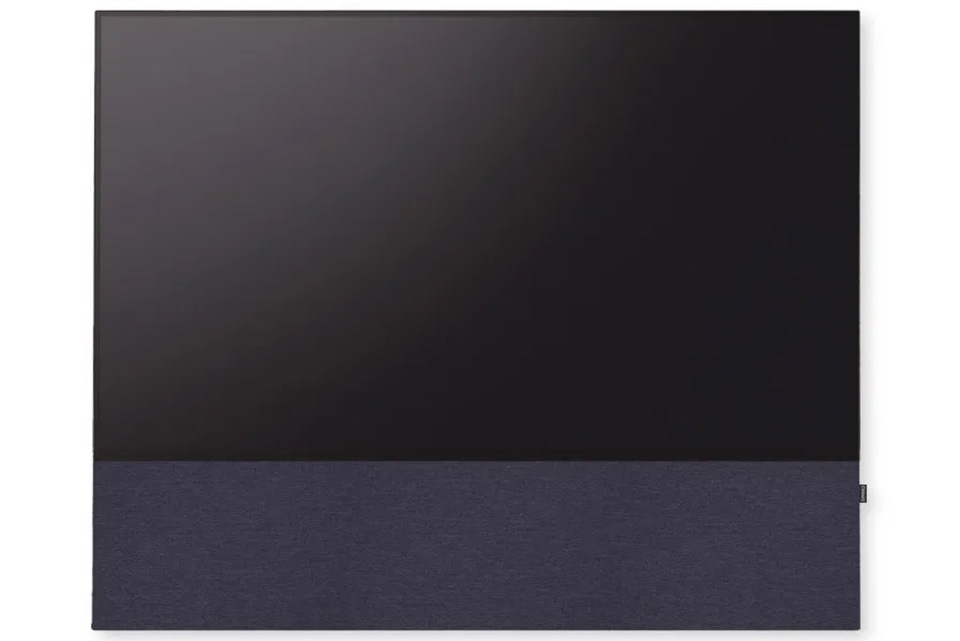

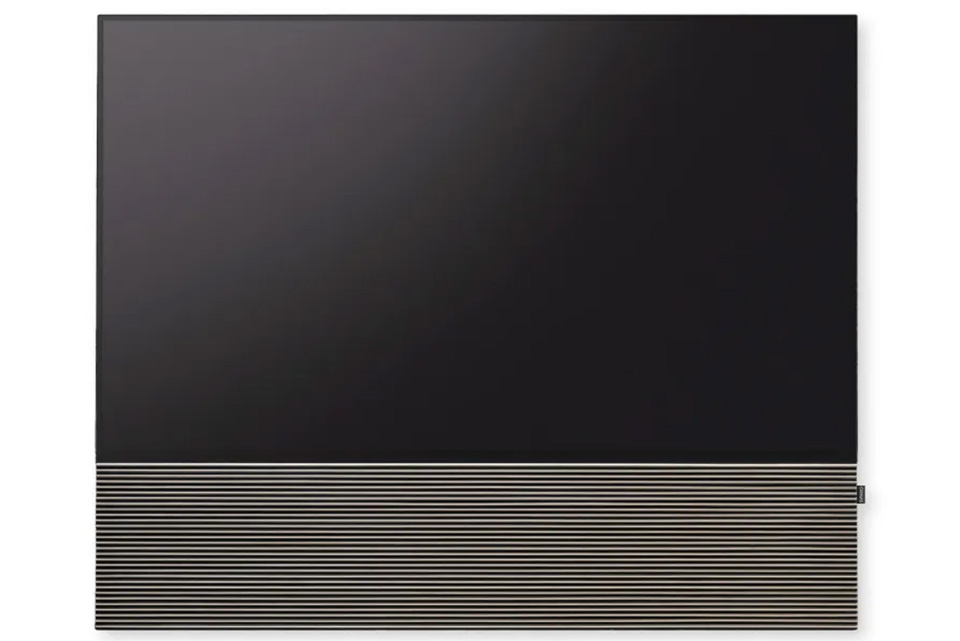

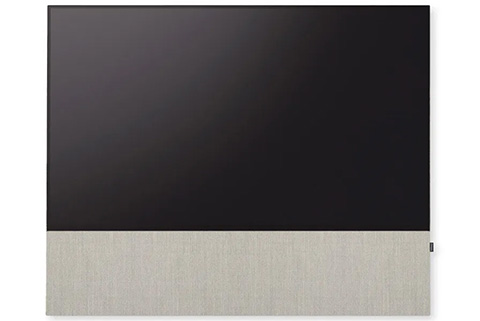

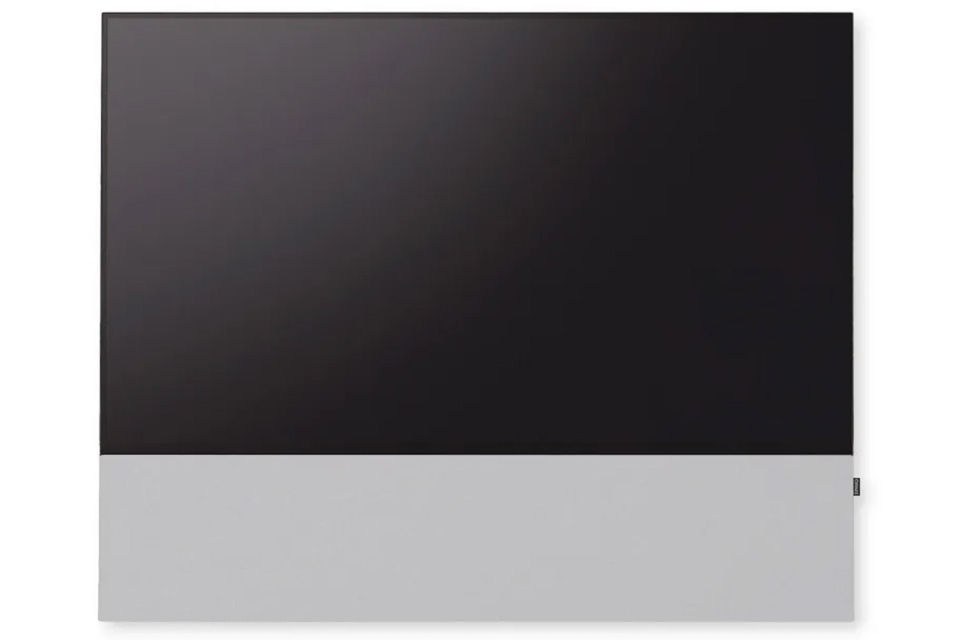

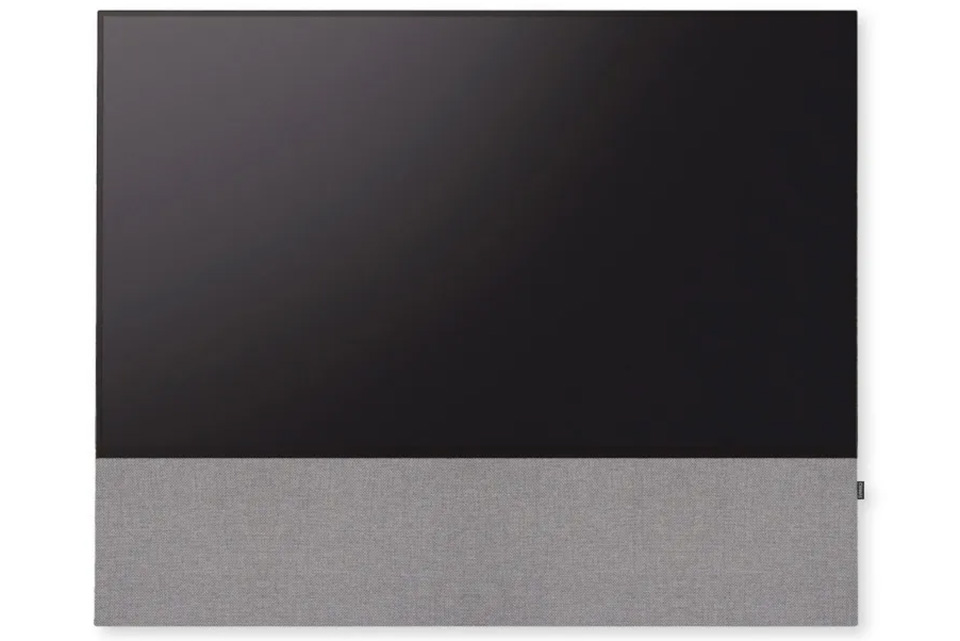

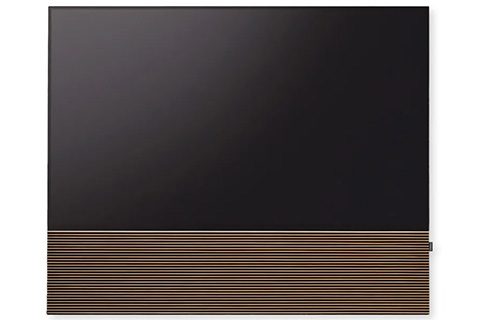

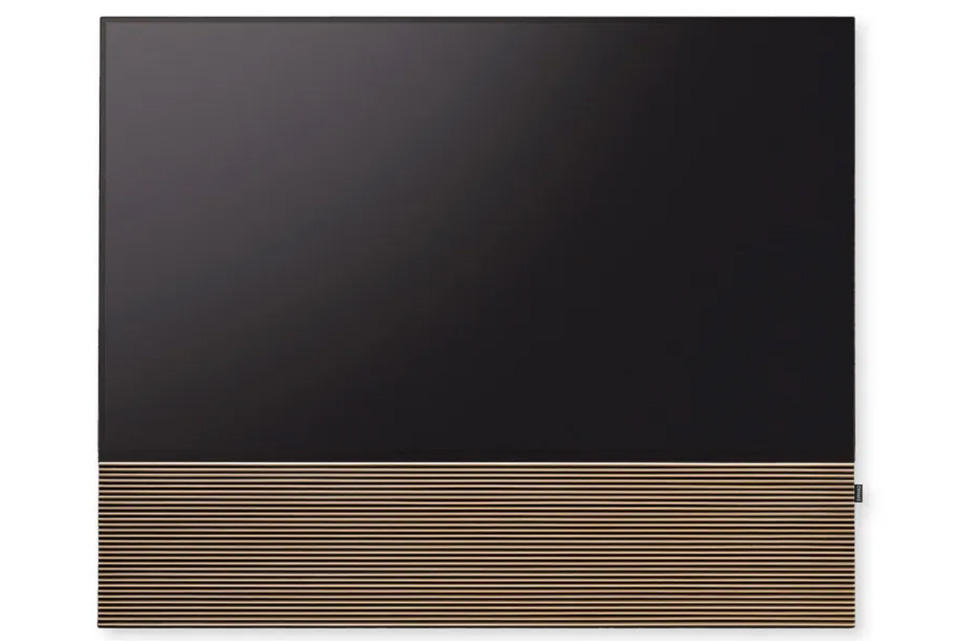

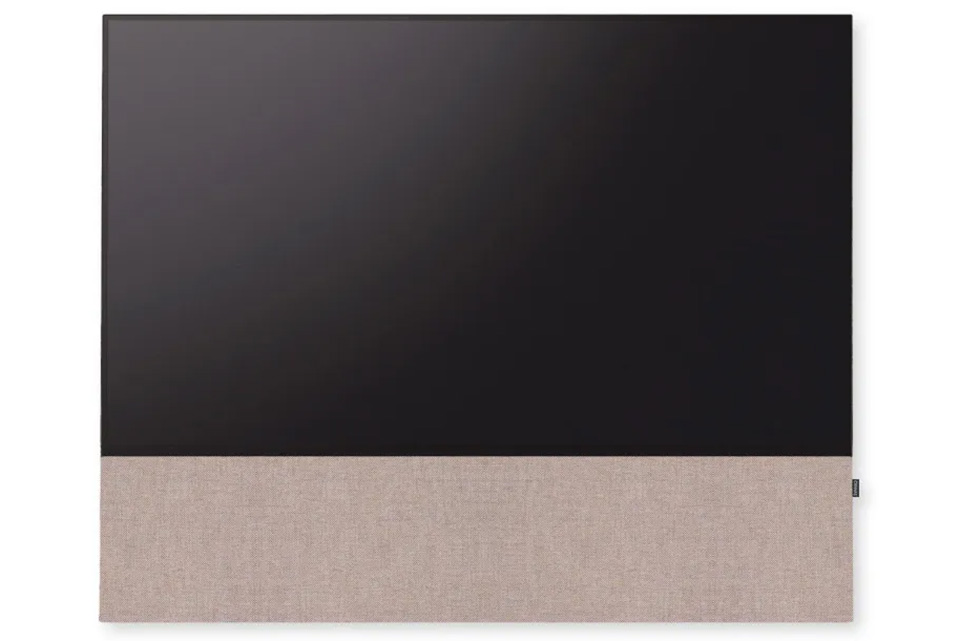

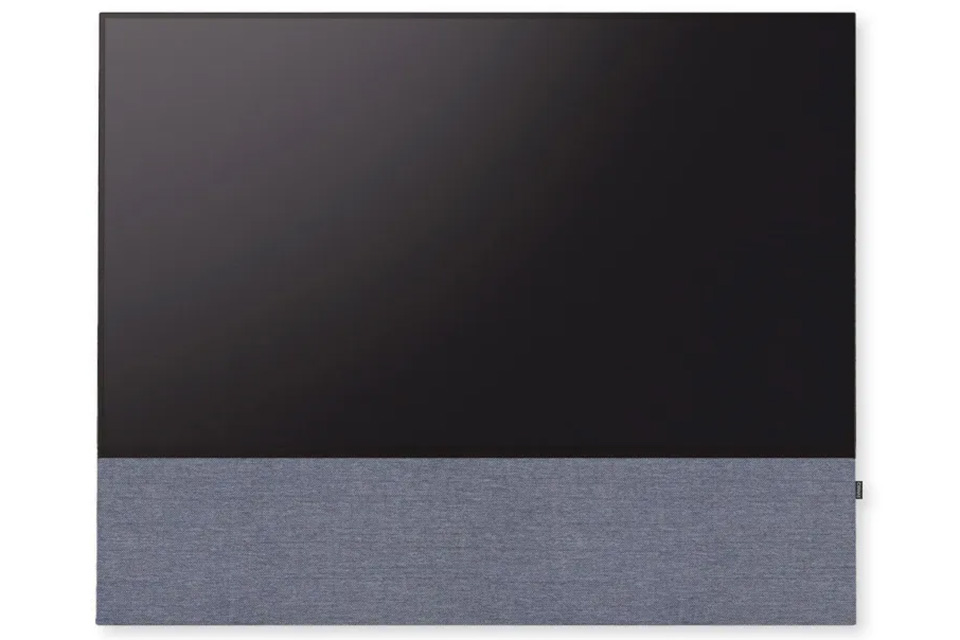

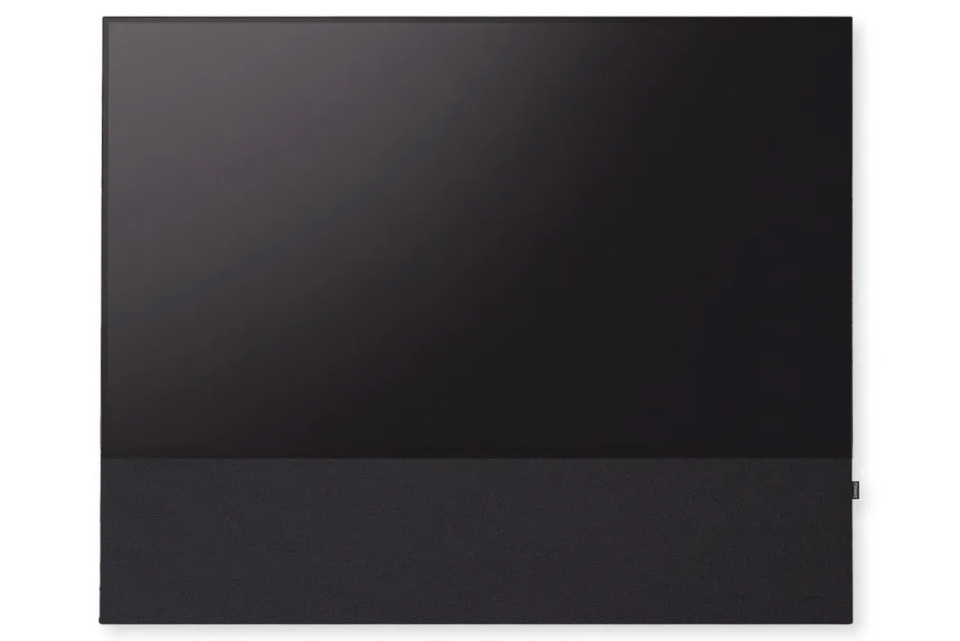

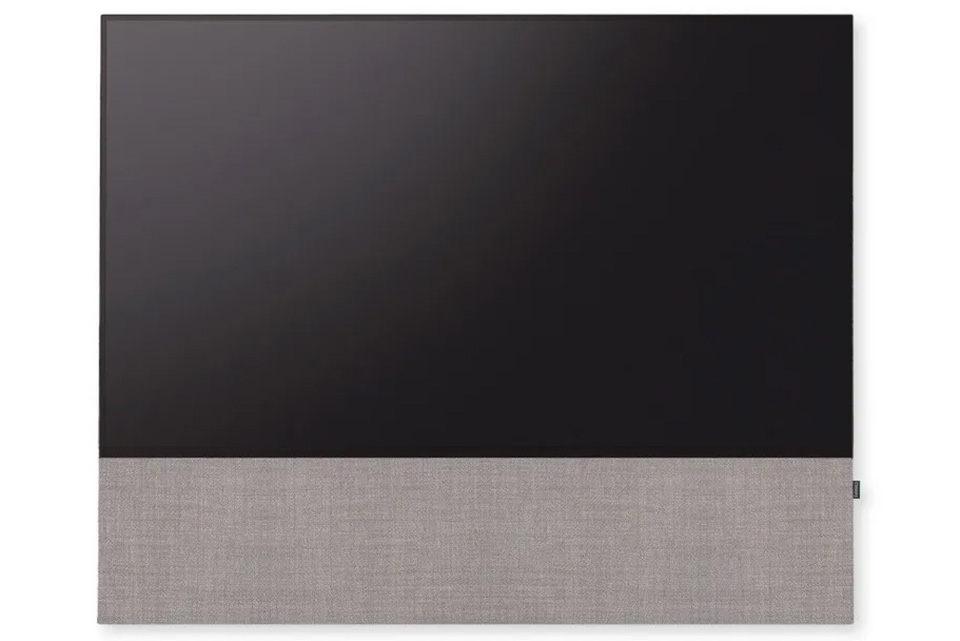

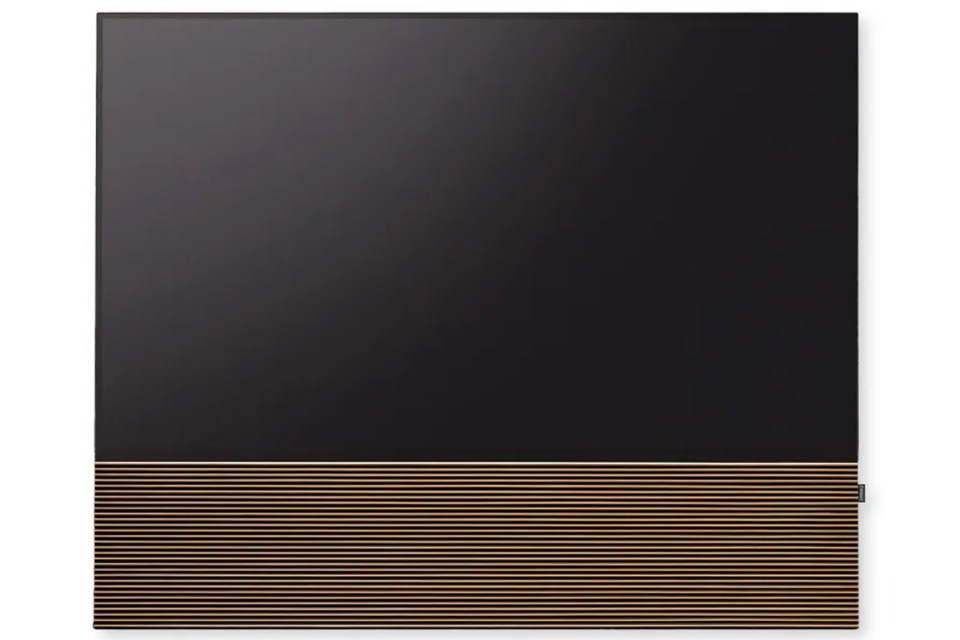

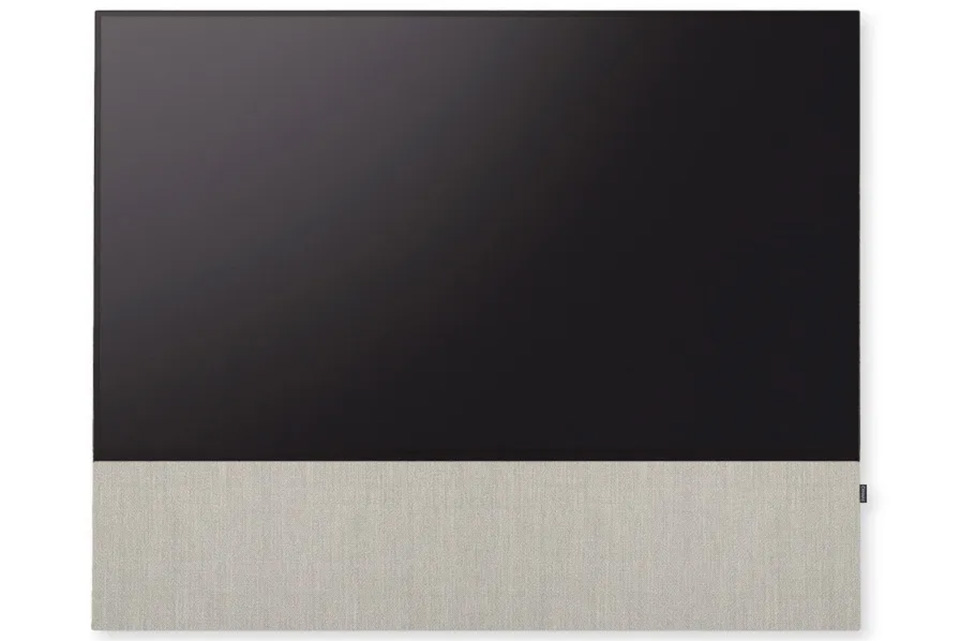

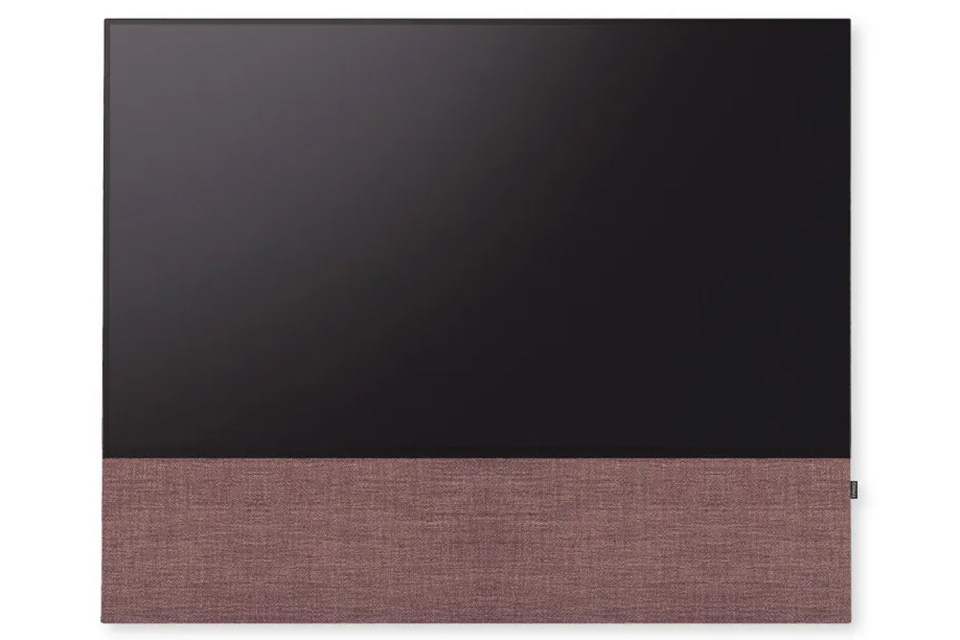

The magnetic 85" front matches the width of the TV and is available in a range of finishes, including Kvadrat fabric and real wood. The front can be removed and replaced, allowing the speaker's appearance to be adapted to your interior.
The cabinet is made from MDF and features CANVAS BridgeBrace technology. Its internal volume of 24 litres provides a solid foundation for the speaker while supporting deep and controlled bass reproduction.
The speaker system is equipped with two 6.5" SB Acoustics bass/midrange drivers featuring paper cones and die-cast aluminium baskets. Two 29 mm silk dome tweeters with specially developed waveguides reproduce the higher frequencies, while two passive radiators reinforce the deep bass.
The signal is processed through a DSP-based linear phase FIR crossover that controls the interaction between the speaker drivers. Four Class D HiFi amplifiers deliver a combined output of 250 watts, and the system offers a frequency response extending from 28 Hz to 24,000 Hz.
Internal signal processing is handled by an Analog Devices quad-core DSP with a BACCH 3D filter. Burr-Brown DACs with 24-bit/192 kHz resolution are responsible for converting digital audio signals.
HDMI eARC transfers audio directly from a compatible TV, while Toslink and an analogue audio input allow additional audio sources to be connected. The system also supports Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA for wireless streaming and multi-room audio.
Room calibration is performed through the iOS app using the iPhone's built-in microphone or the optional Zen Mic. The software can be updated automatically via OTA, and the electronics are designed to support future hardware upgrades.
An external control unit can be concealed inside the CANVAS and used for automatic detection of audio signals from existing systems. This enables integration with a range of established control platforms.

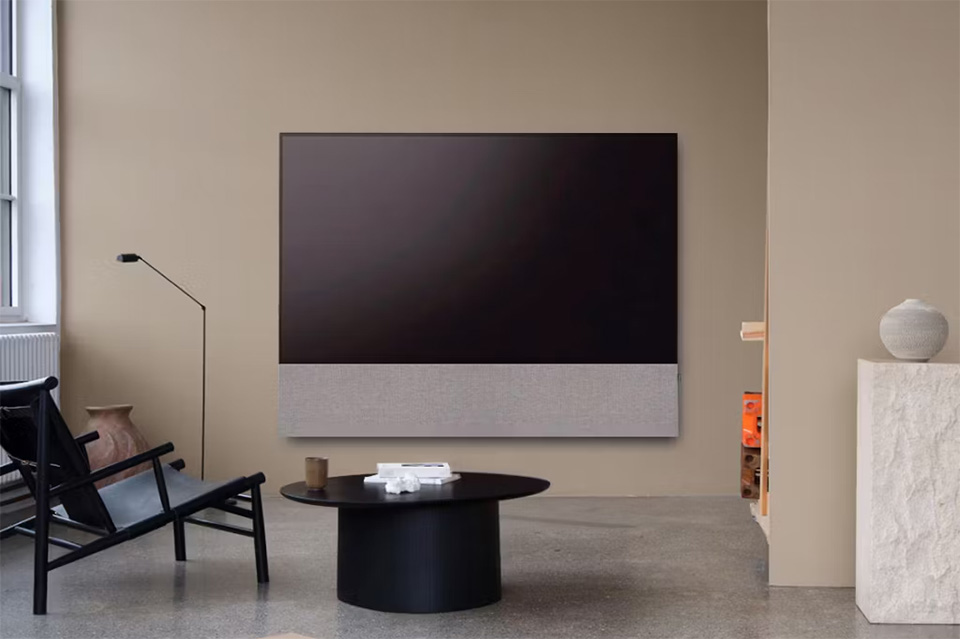

Your CANVAS soundbar can be mounted on the wall or placed on a floor stand. Installation takes some preparation, so we recommend watching the
installation walkthrough before you begin. You are also welcome to
contact us if you need help choosing the option that best suits your TV and your room.
• TV compatibility: Universal TV bracket for 85" TVs from brands including Samsung, Sony, Panasonic and LG
• Installation: Floor standing or wall mounted with included stand and wall bracket
• Front: Interchangeable magnetic 85" front in fabric or real wood
• Cabinet: 24 litre MDF enclosure with CANVAS BridgeBrace technology
• Bass/midrange: 2 x 6.5" SB Acoustics drivers with paper cones
• Tweeters: 2 x 29 mm SB Acoustics silk dome tweeters
• Passive radiators: 2 x SB Acoustics passive radiators
• Crossover: DSP-based linear phase FIR crossover
• Amplifiers: 4-channel Class D with a combined output of 250 watts
• DAC: Burr-Brown 24-bit/192 kHz
• DSP: Analog Devices quad-core 300 MIPS with BACCH 3D filter
• Frequency response: 28 Hz - 24,000 Hz
• Signal-to-noise ratio: Above 103 dB
• THD+N: Below 0.05%
• Room correction: Via iOS app using the iPhone microphone or optional Zen Mic
• Connections: HDMI eARC, Toslink and analogue audio input
• Streaming: Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA
• Software updates: Automatic OTA updates
• Hardware: Upgradeable electronics
• Power supply: AC 100-240 V, 50-60 Hz
• Dimensions, wall mounted including bracket and front: 36.9 x 189.9 x 12.6 cm (H x W x D)
• Dimensions, floor standing including stand and front: 36.9 x 189.9 x 19.8 cm (H x W x D)
• Dimensions, CANVAS with 85" TV: Approx. 145.2 x 189.9 cm (H x W)
• Dimensions, CANVAS unit: Approx. 33.0 x 121.0 x 12.0 cm (H x W x D)
• CANVAS unit depth without bracket: 11.0 cm
• Weight, CANVAS unit without packaging: 26.5 kg
• Weight, wood front with bracket without packaging: 12.2 kg
• Weight, fabric front with bracket without packaging: 11.2 kg
• Included: CANVAS speaker, 85" front, stand, wall bracket, TV bracket, cables, screws and mounting accessories
