• Fits 83" TVs from leading brands using a universal TV mount
• Can be wall-mounted or floor-standing with the included stand
• 250-watt 4-channel Class D HiFi amplification
• Frequency response from 28 Hz to 24,000 Hz
• Interchangeable magnetic 83" front available in fabric or real wood
• Supports HDMI eARC, AirPlay 2, Google Cast, Roon, Spotify Connect and Tidal Connect
• Automatic OTA software updates and upgradeable electronics

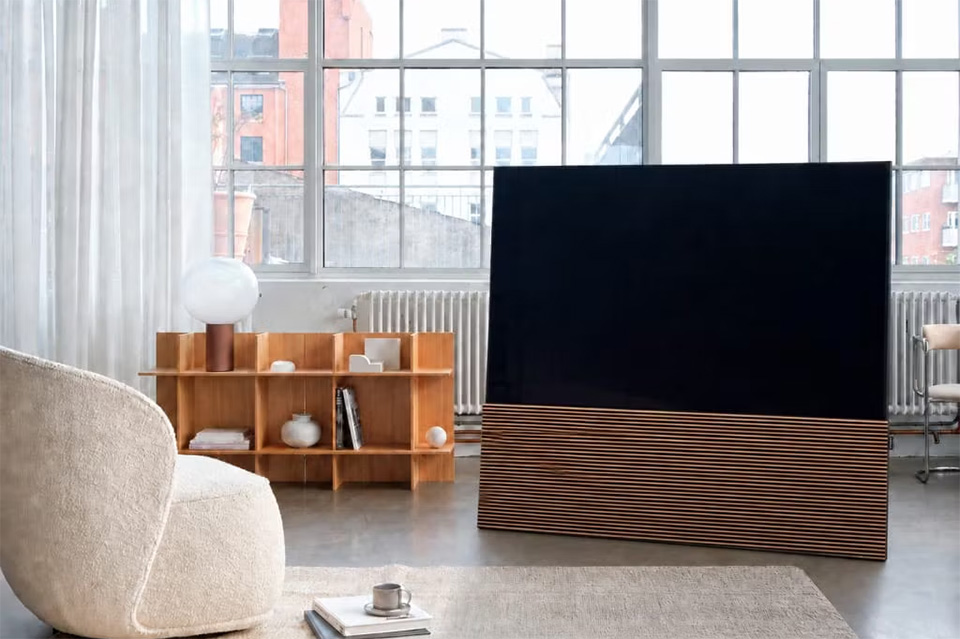

CANVAS for 83" TVs combines your television and sound system into one integrated solution without the need for a traditional soundbar. The universal TV mount is designed for televisions from brands including Samsung, Sony, Panasonic and LG. The included floor stand and wall bracket allow you to choose between floor-standing and wall-mounted installation.

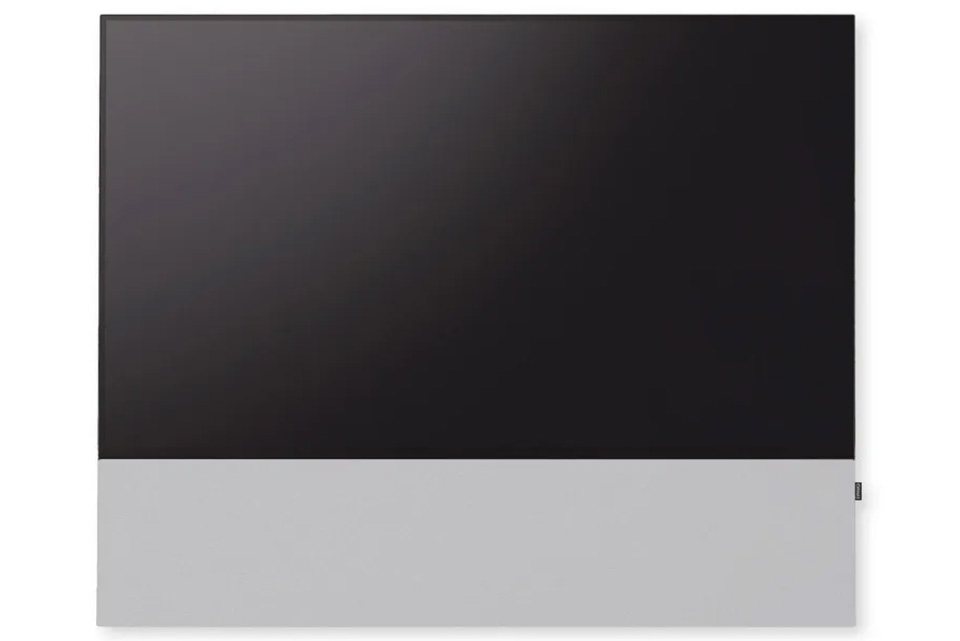

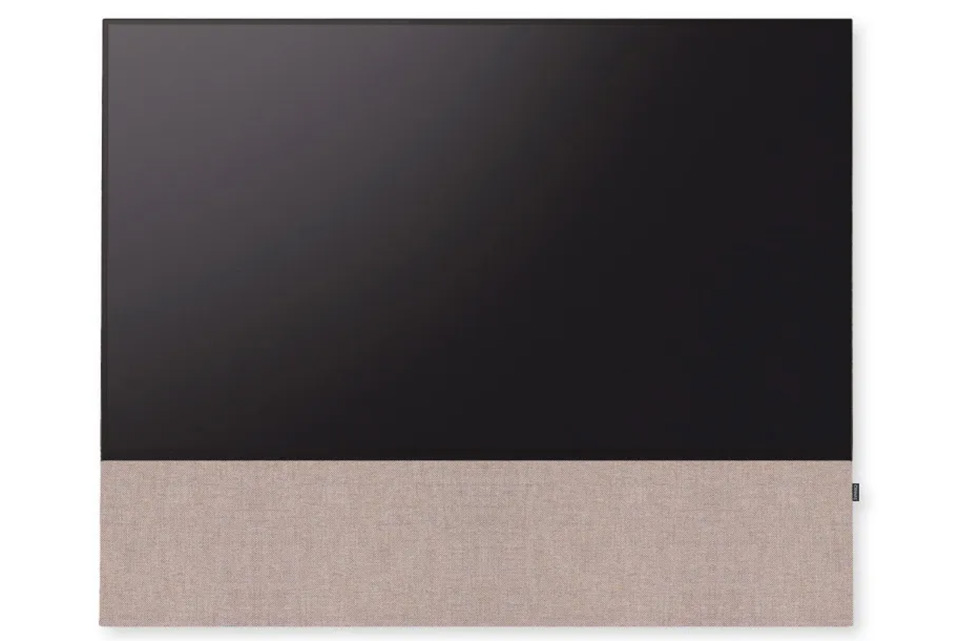

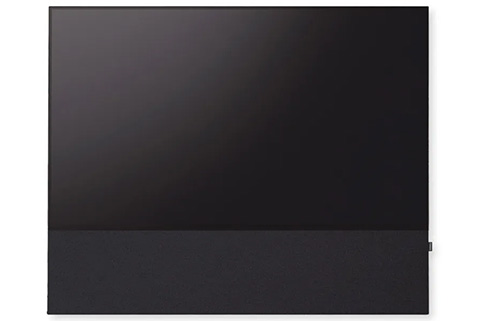

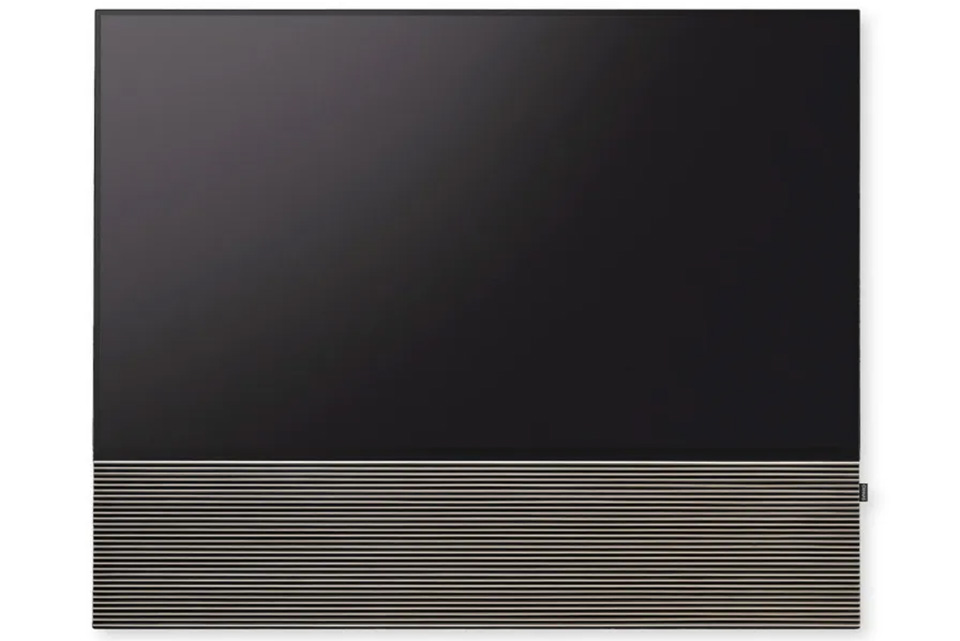

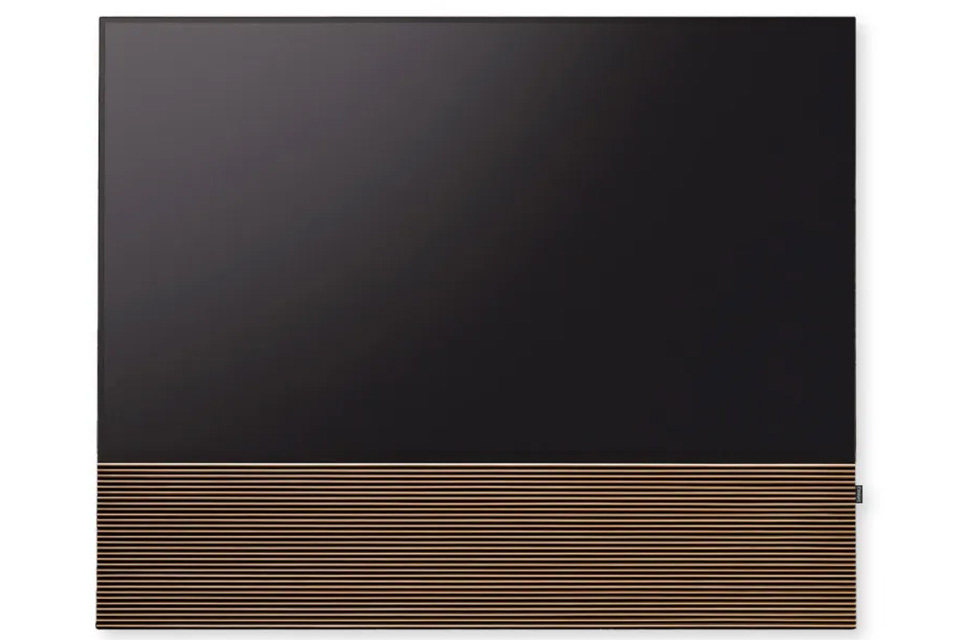

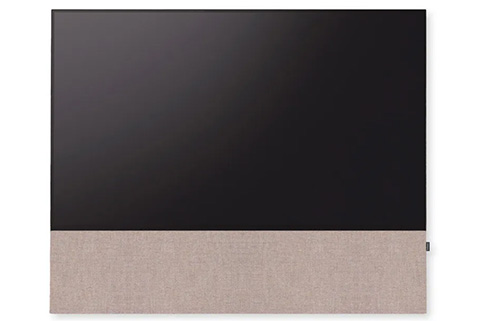

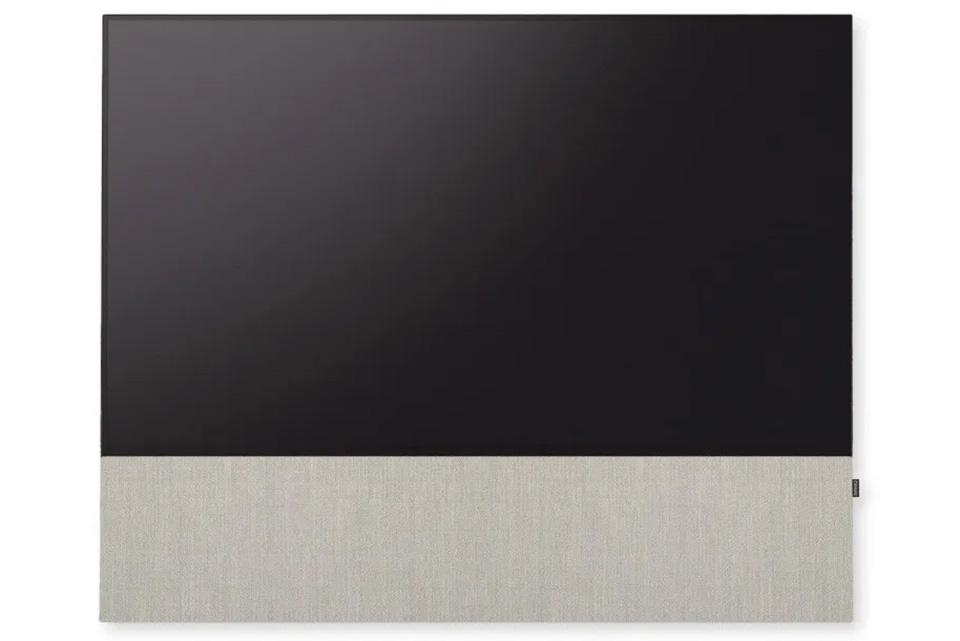

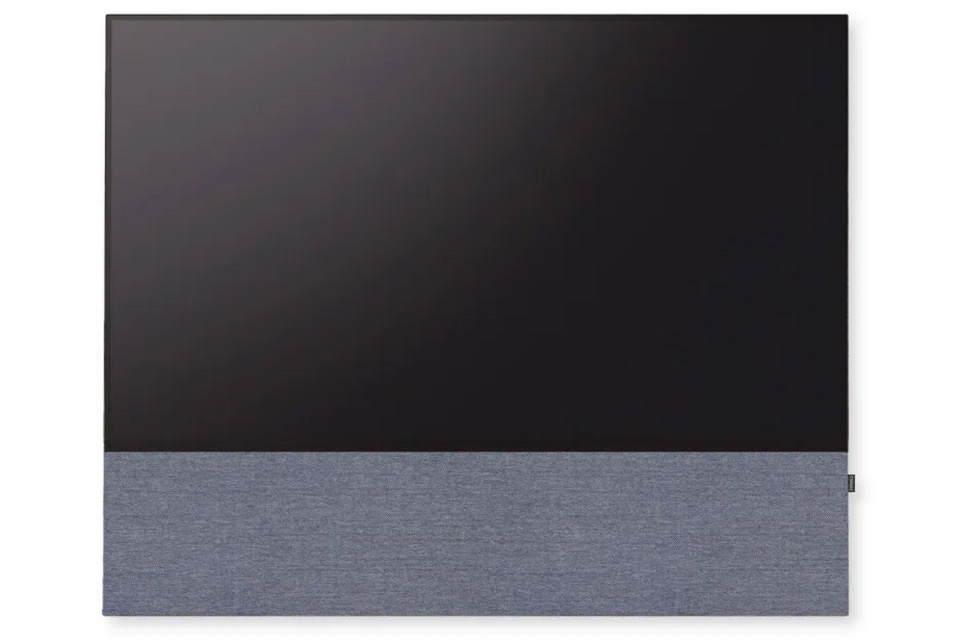

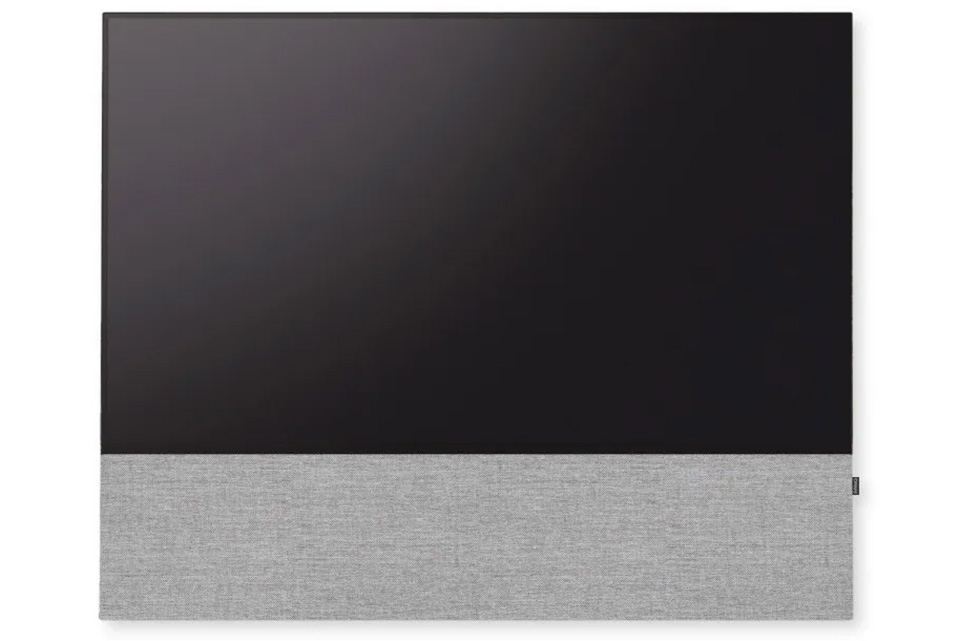

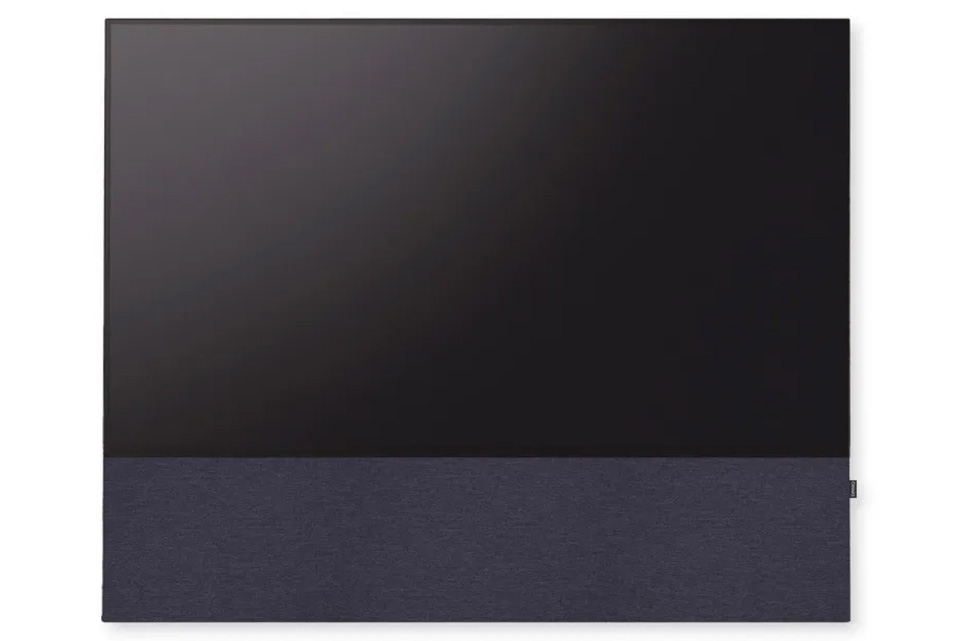

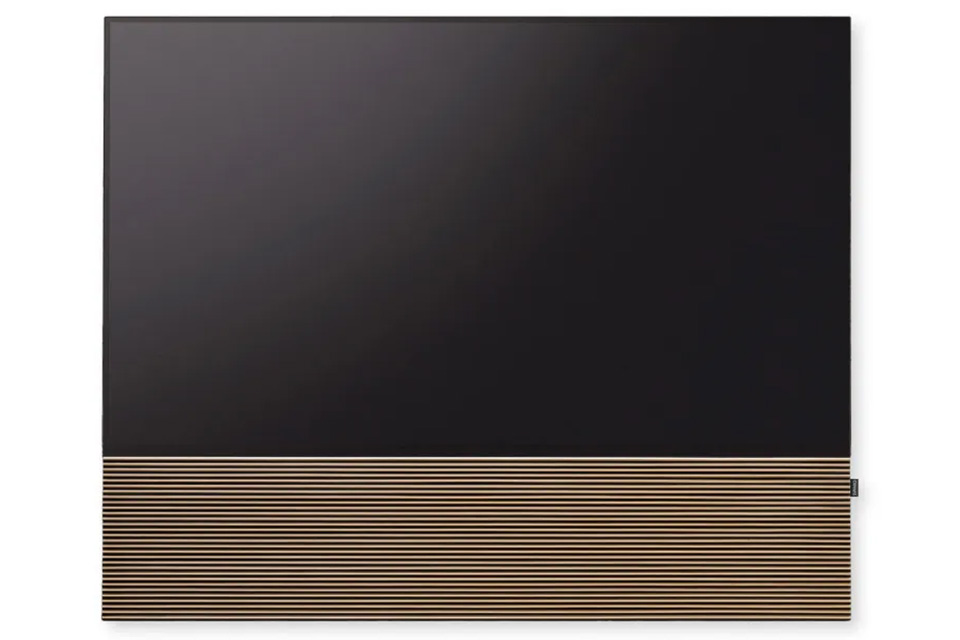

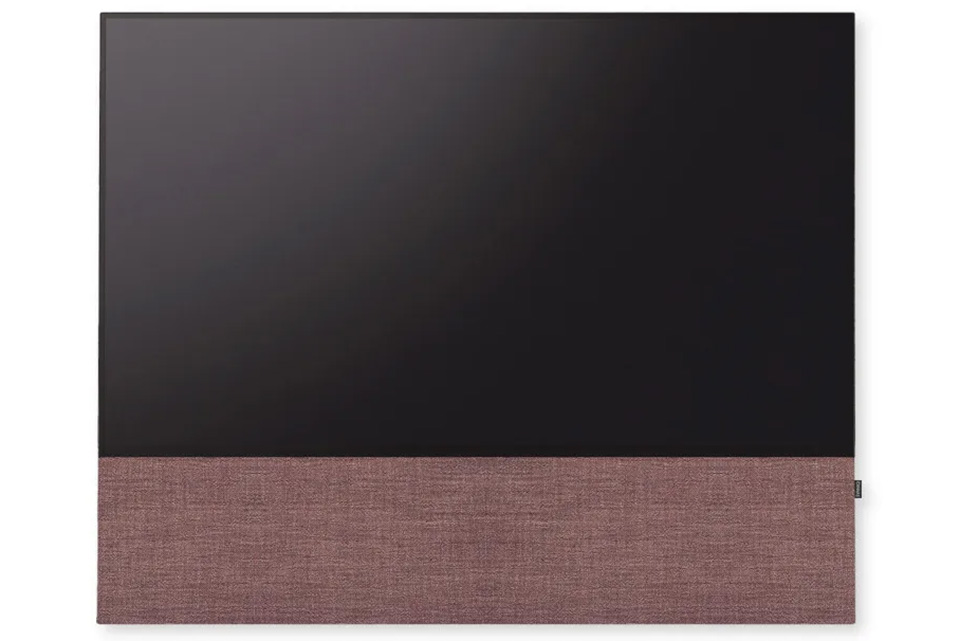

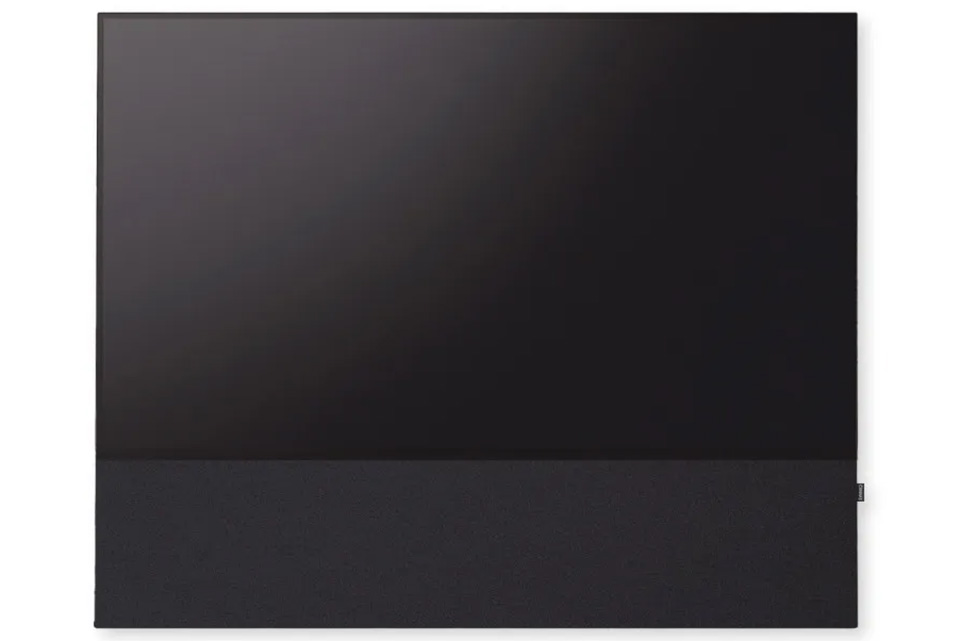

The magnetic 83" front matches the width of your TV and is available in different finishes, including Kvadrat fabric and real wood. The front can be removed and replaced, allowing you to change the appearance of the speaker to suit your interior.
The cabinet is constructed from MDF and features CANVAS BridgeBrace technology. Its 24-litre internal volume provides a solid foundation for the speaker while supporting deep and controlled bass reproduction.
The speaker system features two 6.5" SB Acoustics bass/midrange drivers with paper cones and die-cast aluminium baskets. Two 29 mm silk dome tweeters with specially developed waveguides reproduce the higher frequencies, while two passive radiators reinforce the deep bass.
Signal processing is handled by a DSP-based linear-phase FIR crossover that optimises the interaction between the drivers. Four Class D HiFi amplifiers deliver a combined output of 250 watts, and the system offers a frequency response from 28 Hz to 24,000 Hz.
Internal processing is powered by an Analog Devices quad-core DSP with a BACCH 3D filter. Burr-Brown DACs with 24-bit/192 kHz resolution handle digital audio conversion.
HDMI eARC transfers audio directly from a compatible TV, while Toslink and an analogue audio input allow additional audio sources to be connected. The system also supports Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA for wireless streaming and multi-room audio.
Room correction is performed through the iOS app using the built-in microphone of an iPhone or the optional Zen Mic. The software receives automatic OTA updates, and the electronics are designed to support future hardware upgrades.
An external control unit can be concealed inside the CANVAS enclosure and used for automatic detection of audio signals from existing systems, enabling integration with a range of established control platforms.
With the
HiFi Frame | 83", you can bring your TV and CANVAS soundbar together in a stylish piece of furniture. The frame turns your TV setup into a complete high-end design that can be adapted to your living room.

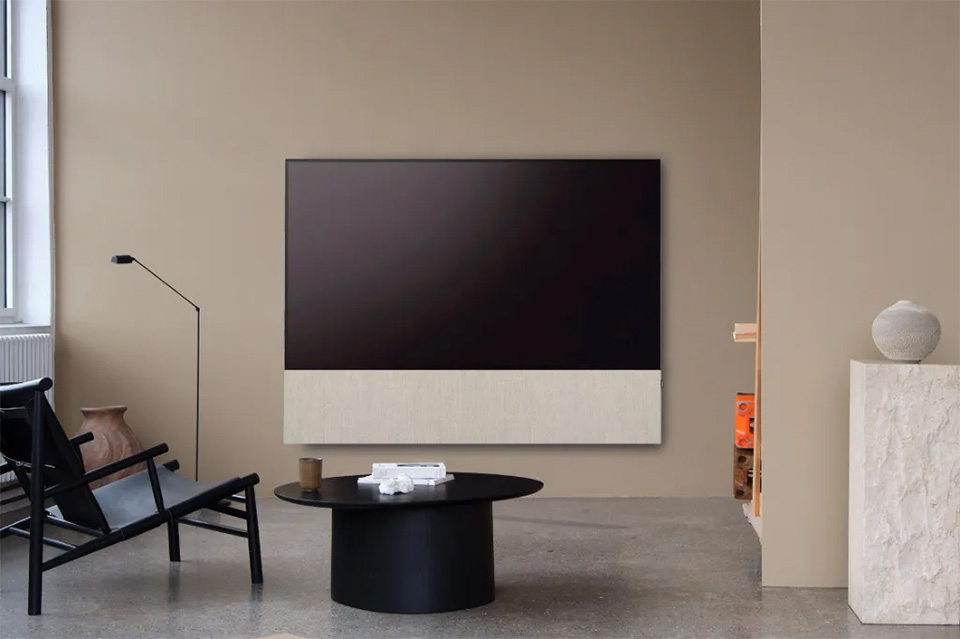

Your CANVAS soundbar can be mounted on the wall or placed on a floor stand. Installation takes some preparation, so we recommend watching the
installation walkthrough before you begin. You are also welcome to
contact us if you need help choosing the option that best suits your TV and your room.
• TV compatibility: Universal TV mount for 83" TVs from brands including Samsung, Sony, Panasonic and LG
• Installation: Floor-standing or wall-mounted using the included stand and wall bracket
• Front: Magnetic interchangeable 83" front in fabric or real wood
• Cabinet: 24-litre MDF enclosure with CANVAS BridgeBrace technology
• Bass/midrange drivers: 2 x 6.5" SB Acoustics paper cone drivers
• Tweeters: 2 x 29 mm SB Acoustics silk dome tweeters
• Passive radiators: 2 x SB Acoustics passive radiators
• Crossover: DSP-based linear-phase FIR crossover
• Amplifiers: 4-channel Class D with 250 watts total output
• DAC: Burr-Brown 24-bit/192 kHz
• DSP: Analog Devices quad-core 300 MIPS with BACCH 3D filter
• Frequency response: 28 Hz - 24,000 Hz
• Signal-to-noise ratio: Over 103 dB
• THD+N: Below 0.05%
• Room correction: Via iOS app using iPhone microphone or optional Zen Mic
• Connections: HDMI eARC, Toslink and analogue audio input
• Streaming: Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA
• Software updates: Automatic OTA updates
• Hardware: Upgradeable electronics
• Power supply: AC 100-240 V, 50-60 Hz
• Dimensions, wall-mounted including bracket and front: 36.9 x 185.2 x 12.6 cm (H x W x D)
• Dimensions, floor-standing including stand and front: 36.9 x 185.2 x 12.6 cm (H x W x D)
• Dimensions, CANVAS with 83" TV: Approx. 142.6 x 185.2 cm (H x W)
• Dimensions, CANVAS unit: Approx. 33.0 x 121.0 x 12.0 cm (H x W x D)
• CANVAS unit depth without bracket: 11.0 cm
• Weight, CANVAS unit without packaging: 26.5 kg
• Weight, wood front with bracket without packaging: 12.2 kg
• Weight, fabric front with bracket without packaging: 11.2 kg
• Included: CANVAS speaker, 83" front, floor stand, wall bracket, TV mount, cables, screws and mounting hardware
