• Fits 75" TVs from all major brands with a universal TV mount
• Can be wall-mounted or placed on the floor using the included stand
• 250 watt 4-channel Class D HiFi amplification
• Frequency response from 28 Hz to 24,000 Hz
• Interchangeable magnetic front in fabric or real wood
• Supports HDMI eARC, AirPlay 2, Google Cast, Roon, Spotify Connect and Tidal Connect
• Automatic OTA software updates and upgradeable hardware

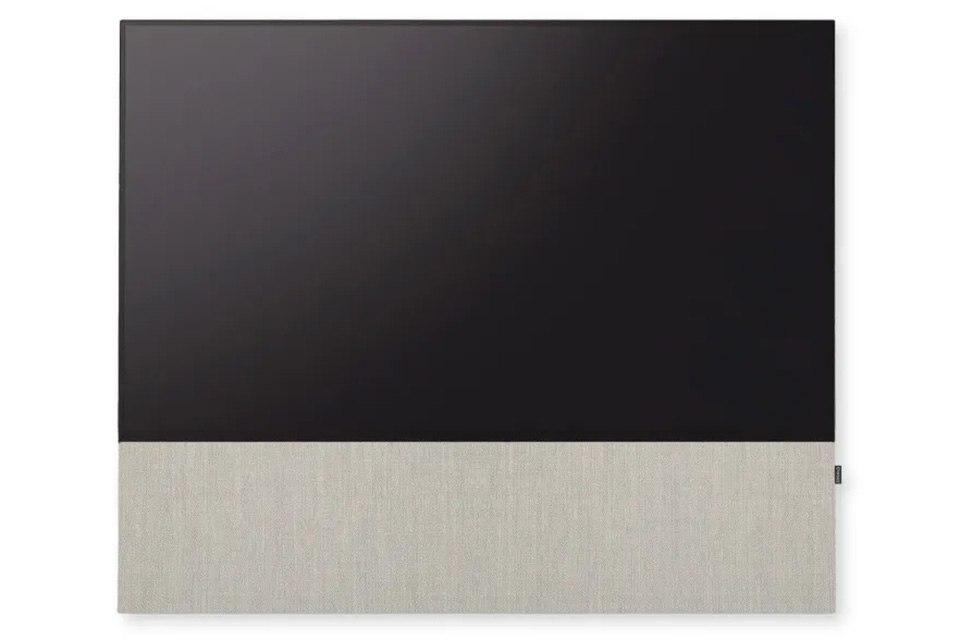

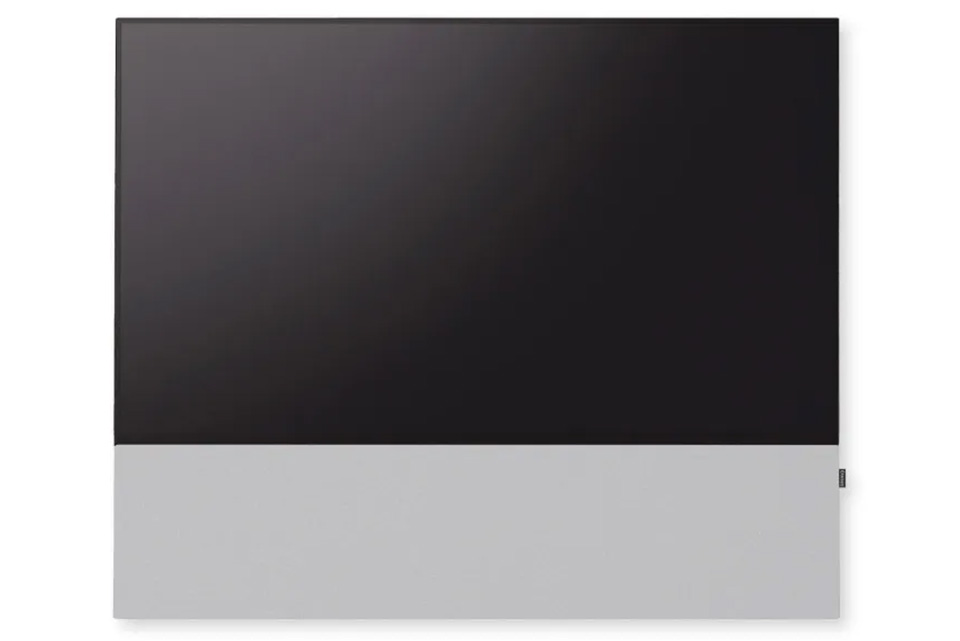

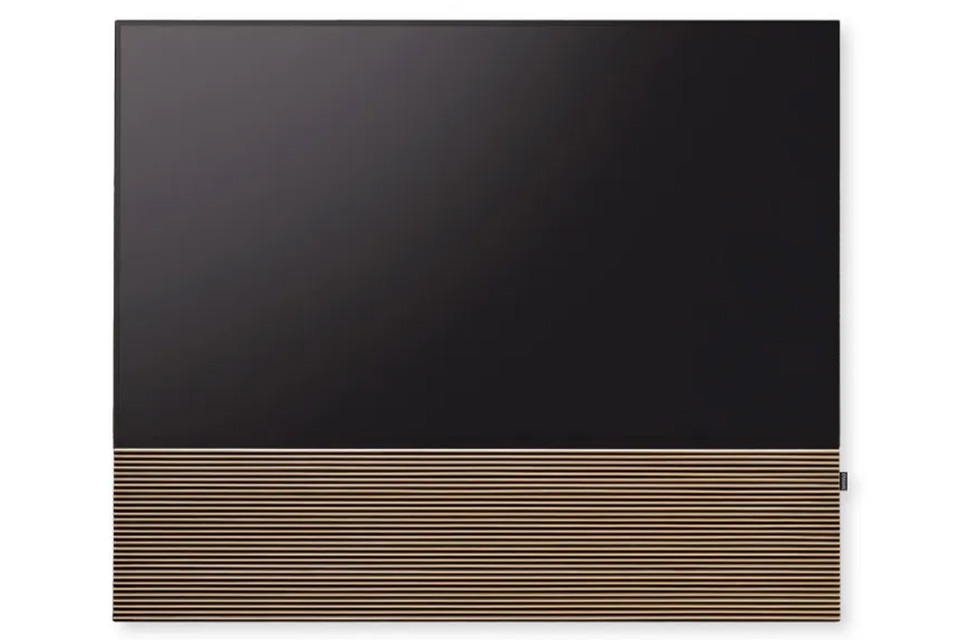

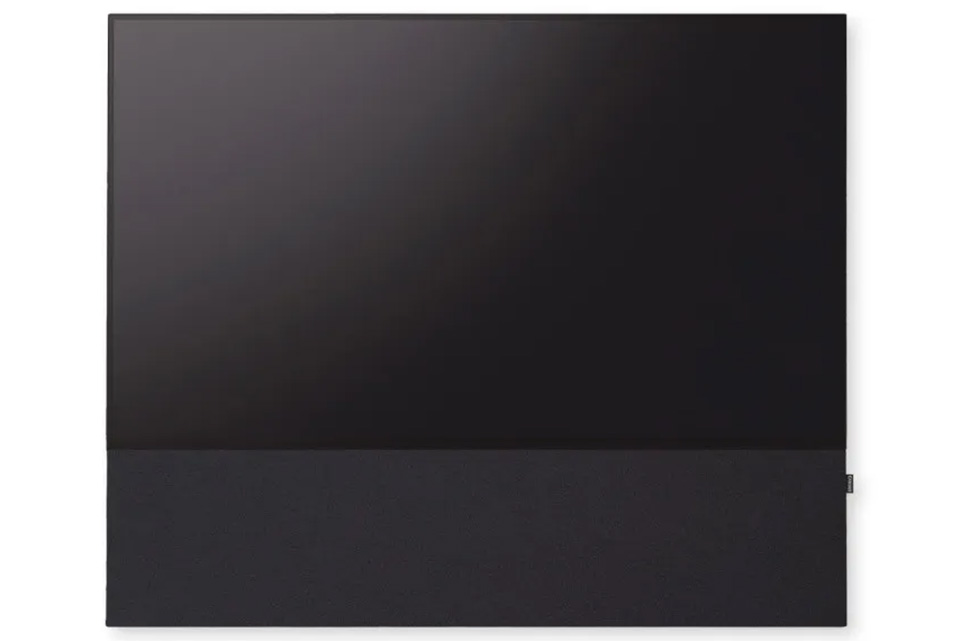

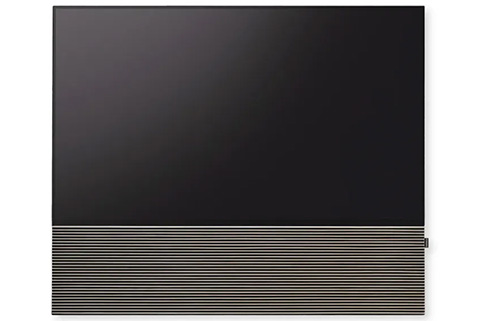

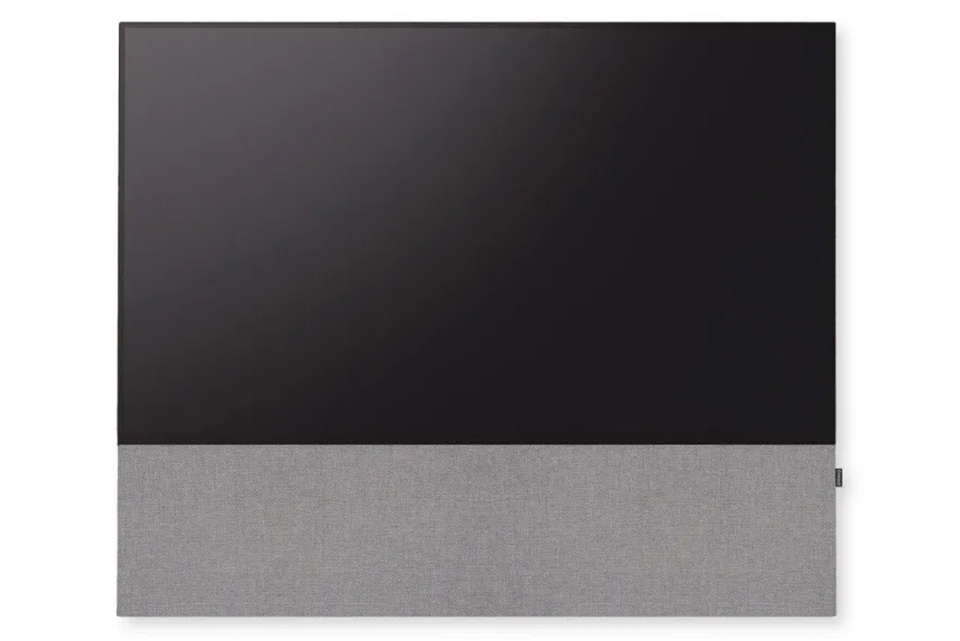

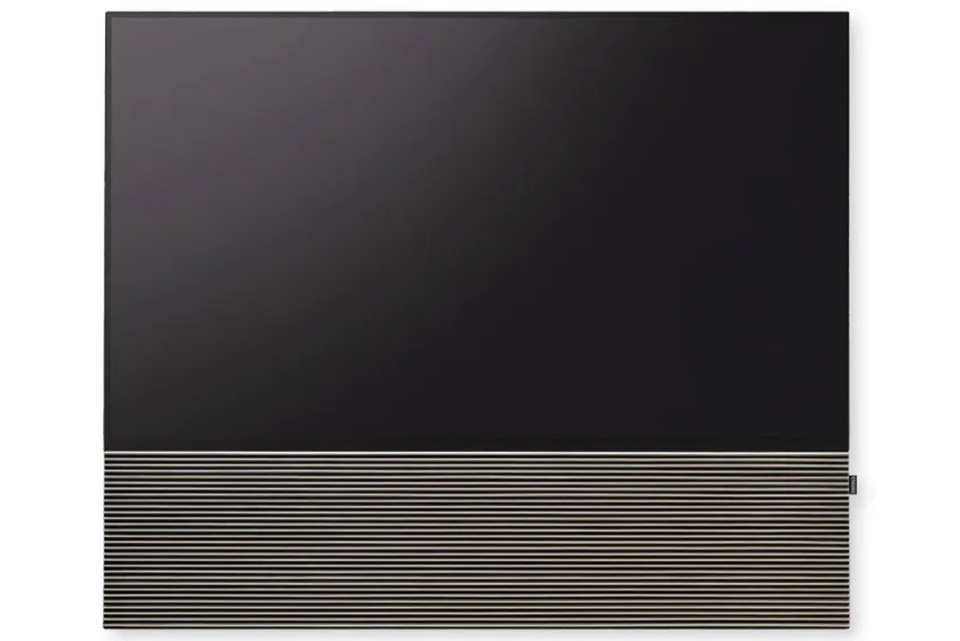

CANVAS for 75" TVs is designed to combine your TV and audio into one elegant solution without the need for a traditional soundbar. The universal TV mount is compatible with TVs from Sony, Panasonic, LG and many other brands, while the included stand and wall bracket allow for either floor-standing or wall-mounted installation. The included 75" front matches the width of your TV and is available in several finishes, including Kvadrat fabric and real wood, allowing it to blend naturally into your interior. The front attaches magnetically and can easily be replaced whenever desired.
The cabinet is constructed from MDF using CANVAS BridgeBrace technology and features an internal volume of 24 litres. The enclosure is engineered to provide a rigid foundation for the speaker system, contributing to deep and controlled bass reproduction.
The speaker is equipped with two 6.5" SB Acoustics woofer/midrange drivers featuring paper cones and die-cast aluminium baskets, along with two 29 mm silk dome tweeters using specially developed waveguides. Two passive radiators reinforce the low-frequency performance, while a DSP-based linear phase FIR crossover provides precise signal processing between the drivers.
Four Class D HiFi amplifiers deliver a combined output of 250 watts. The combination of the large cabinet volume, dedicated drive units and passive radiators provides high efficiency and a frequency response extending from 28 Hz to 24,000 Hz. Internal signal processing is handled by an Analog Devices quad-core DSP with a BACCH 3D filter, while Burr-Brown 24-bit/192 kHz DACs ensure high-resolution digital conversion.
CANVAS supports HDMI eARC for TV audio, as well as Toslink and analogue audio input. Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA are also built in, providing access to multi-room audio and streaming from a wide range of devices and services.
Room correction is performed using the iOS app with the built-in microphone in an iPhone or the optional Zen Mic. Software is updated automatically via OTA, and the internal hardware is designed so that the electronics can be upgraded over time. Existing audio systems can also be integrated through automatic input switching using an external control unit that can be concealed inside the CANVAS enclosure, enabling compatibility with a range of established control platforms.

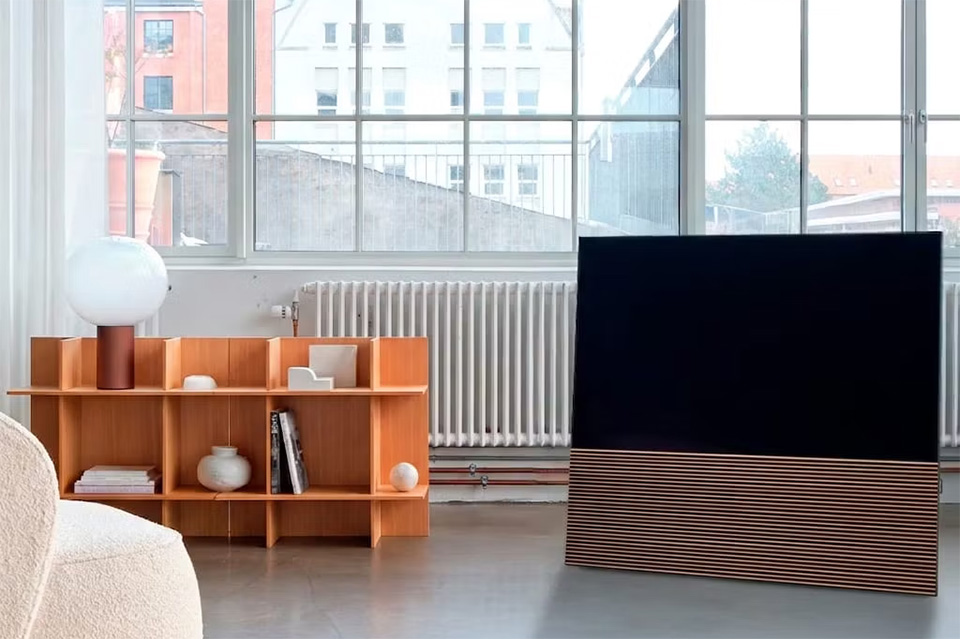

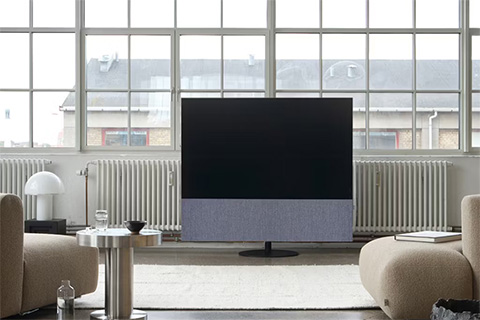

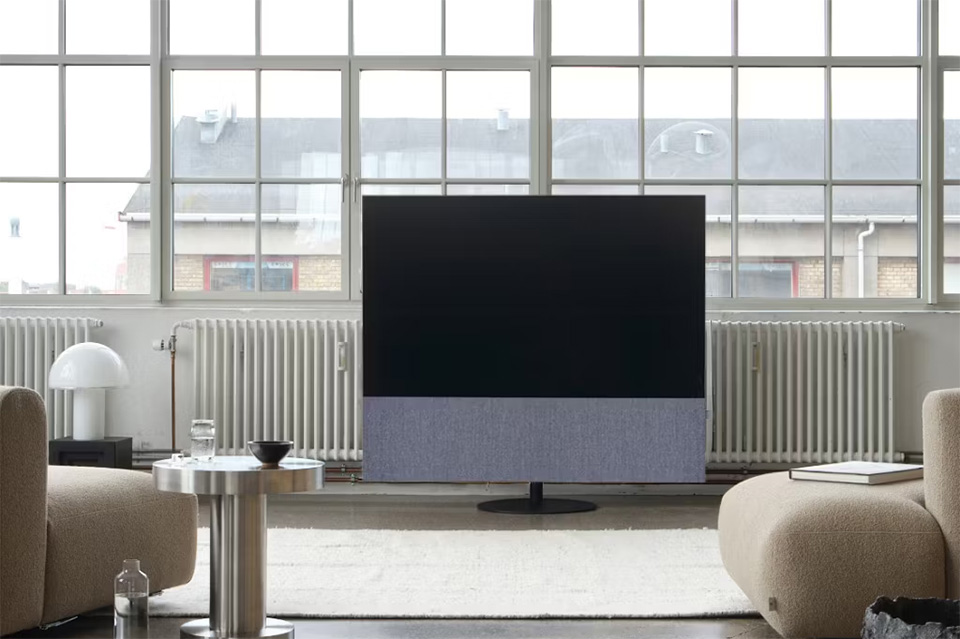

Your CANVAS soundbar can be mounted on the wall or placed on a floor stand. Installation takes some preparation, so we recommend watching the
installation walkthrough before you begin. You are also welcome to
contact us if you need help choosing the option that best suits your TV and your room.
• TV compatibility: Universal TV mount for 75" TVs from Samsung, Sony, Panasonic, LG and other brands

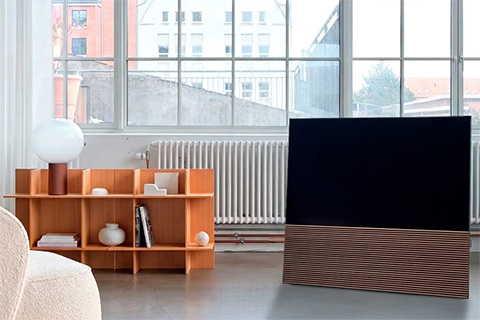

• Installation: Floor-standing or wall-mounted using the included stand and wall bracket

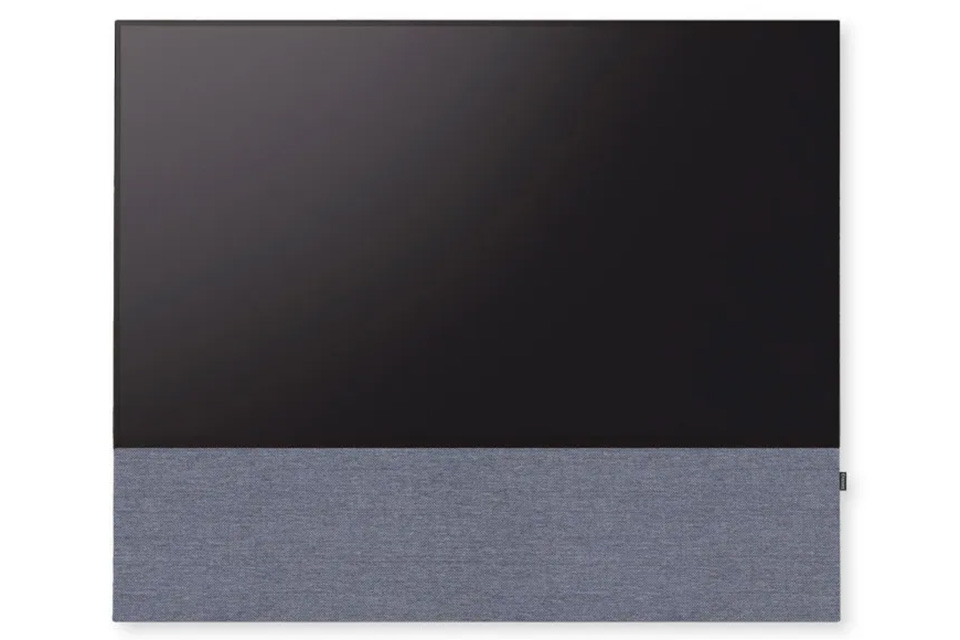

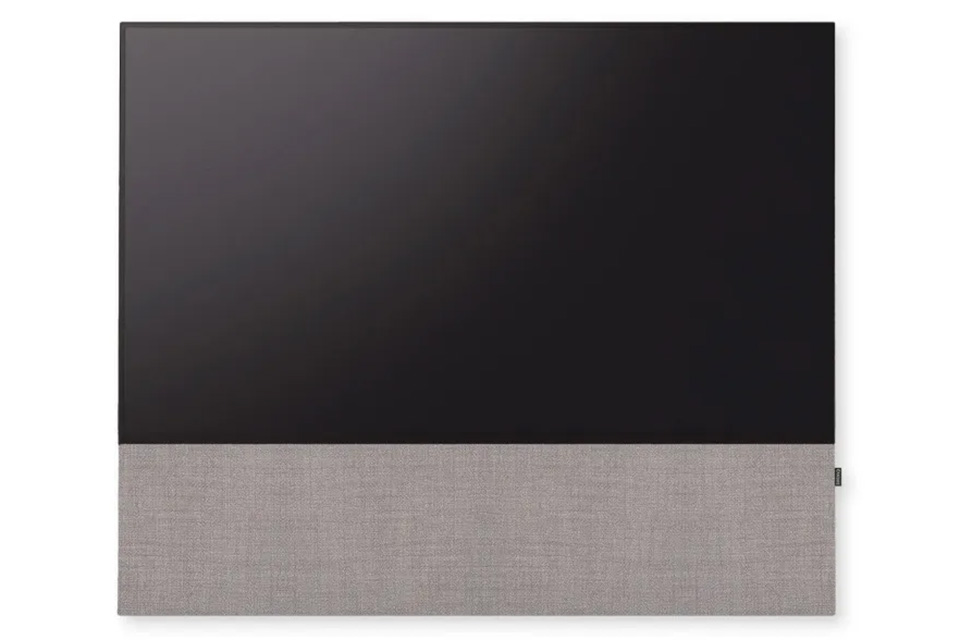

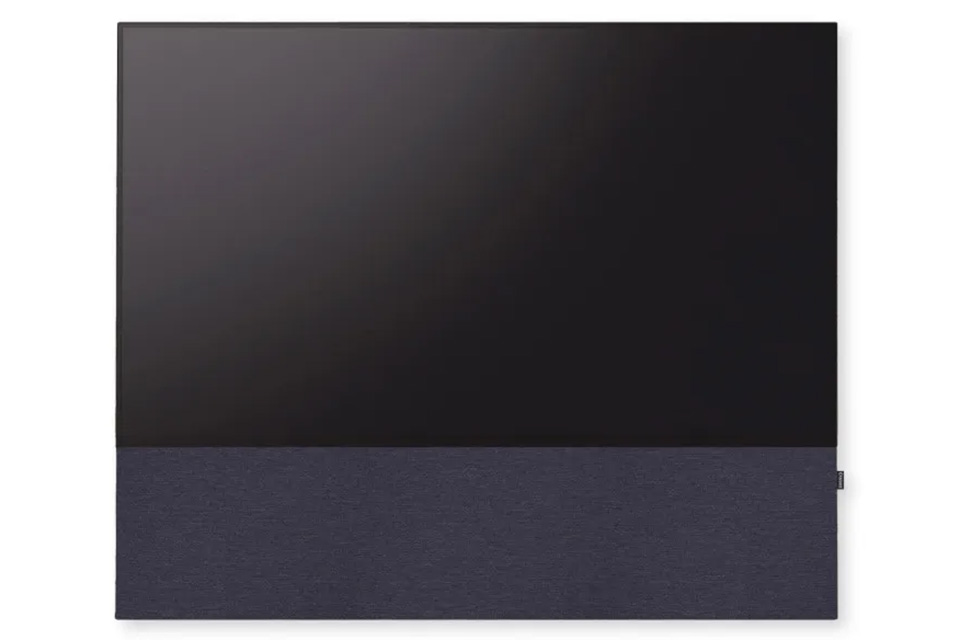

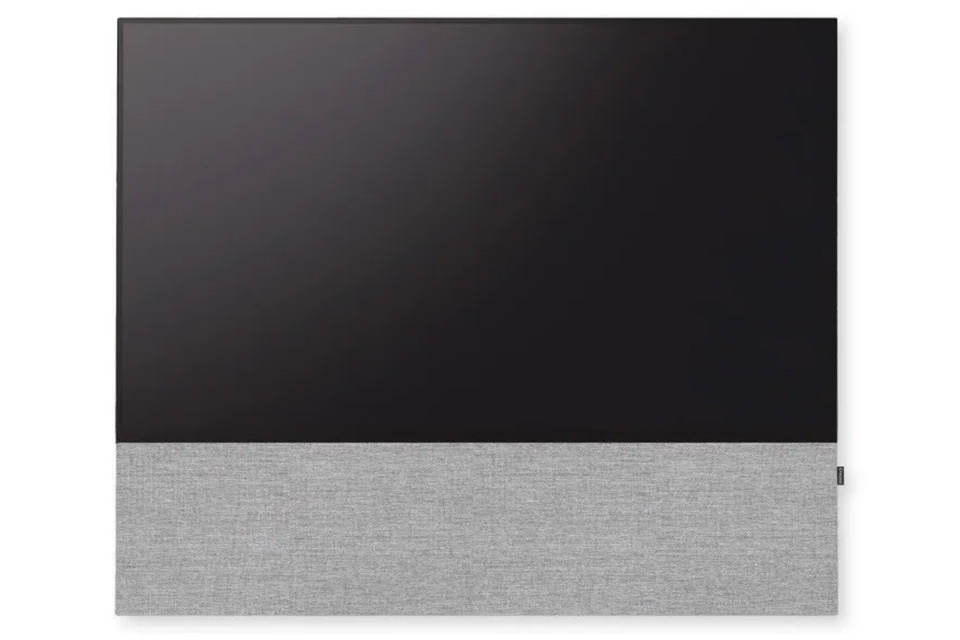

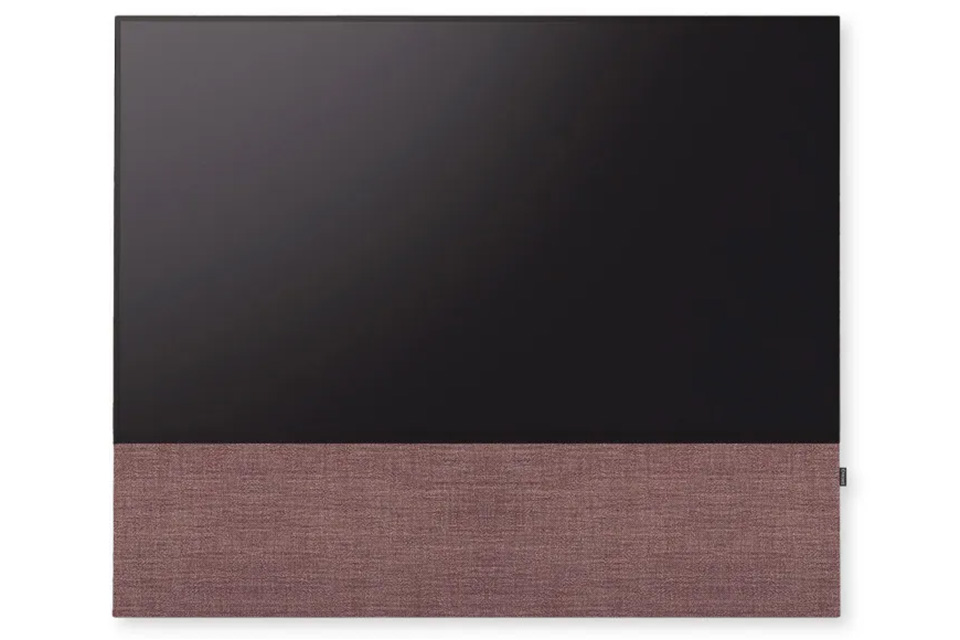

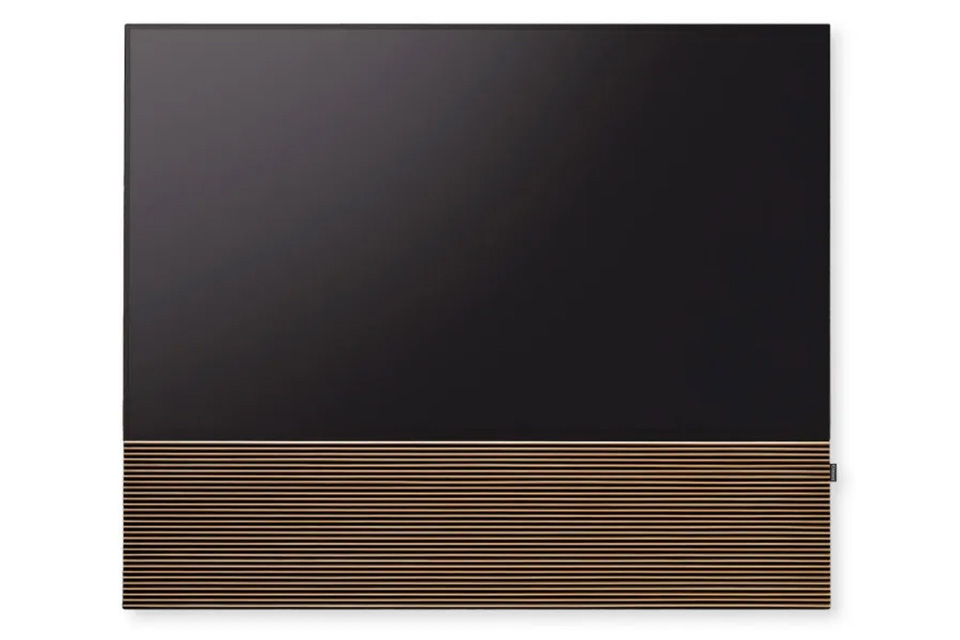

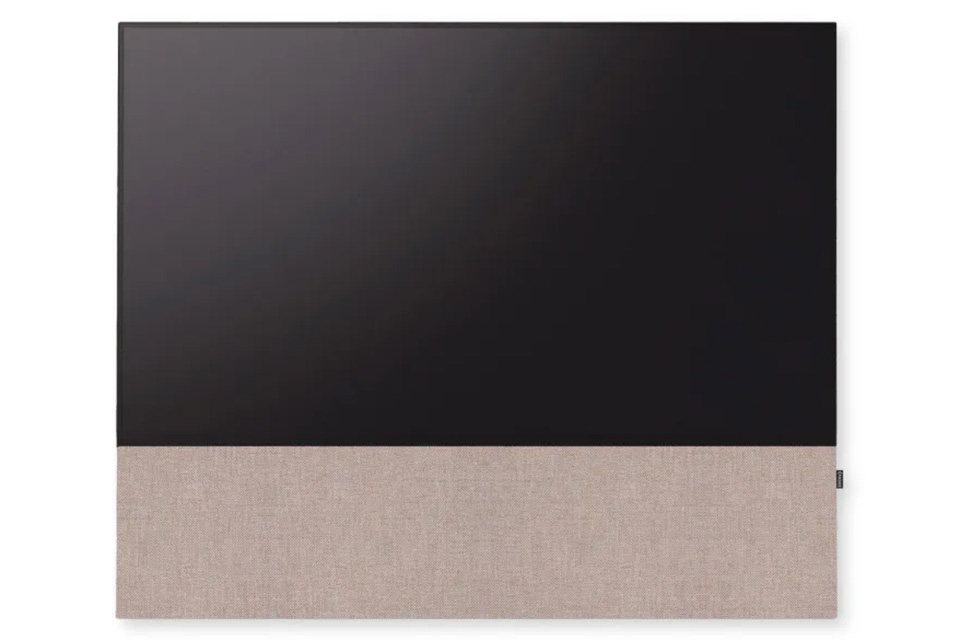

• Front: Magnetic interchangeable front in fabric or real wood
• Cabinet: 24 litre MDF enclosure with CANVAS BridgeBrace technology
• Woofer/midrange: 2 x 6.5" SB Acoustics with paper cones
• Tweeters: 2 x 29 mm SB Acoustics silk dome
• Passive radiators: 2 x SB Acoustics passive radiators
• Crossover: DSP linear phase FIR
• Amplifiers: 4-channel Class D, total output 250 watts
• DAC: Burr-Brown 24-bit / 192 kHz
• DSP: Analog Devices quad-core 300 MIPS with BACCH 3D filter
• Frequency response: 28 Hz - 24,000 Hz
• Signal-to-noise ratio: Above 103 dB
• THD+N: Below 0.05%
• Room correction via iOS app using iPhone microphone or optional Zen Mic
• Connections: HDMI eARC, Toslink, analogue audio input
• Streaming: Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA
• Software updates: Automatic OTA
• Hardware: Upgradeable electronics
• Power supply: AC 100-240 V, 50-60 Hz
• Dimensions, wall-mounted including front: 167.5 x 36.9 x 12.6 cm (W x H x D)
• Dimensions, floor-standing including front: 167.5 x 37.3 x 19.8 cm (W x H x D)
• Dimensions, CANVAS with TV: Approx. 167.5 x 128.2 cm (W x H)
• CANVAS unit: Approx. 121.0 x 33.0 x 12.0 cm (W x H x D)
• Weight, CANVAS unit: 26.5 kg
• Weight, wood front with mounting bracket: 10.0 kg
• Weight, fabric front with mounting bracket: 9.0 kg
• Included: CANVAS speaker, 75" front, stand, wall bracket, TV mount, cables, screws and mounting accessories
