• Fits 65" TVs from all major brands with a universal TV mounting bracket
• Can be wall-mounted or floor-standing using the included stand
• 250-watt 4-channel Class D HiFi amplification
• Frequency response from 28 Hz to 24,000 Hz

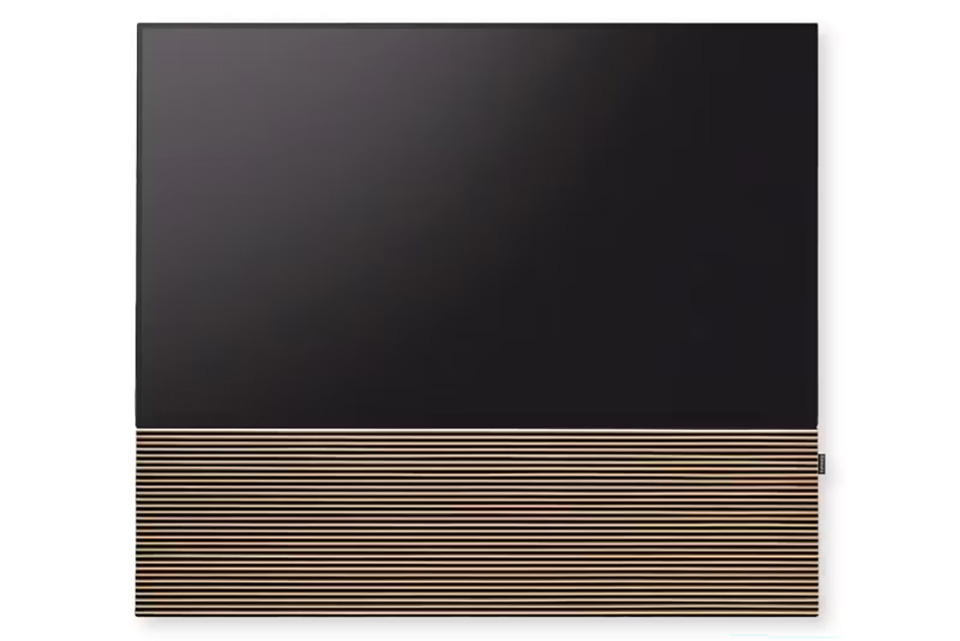

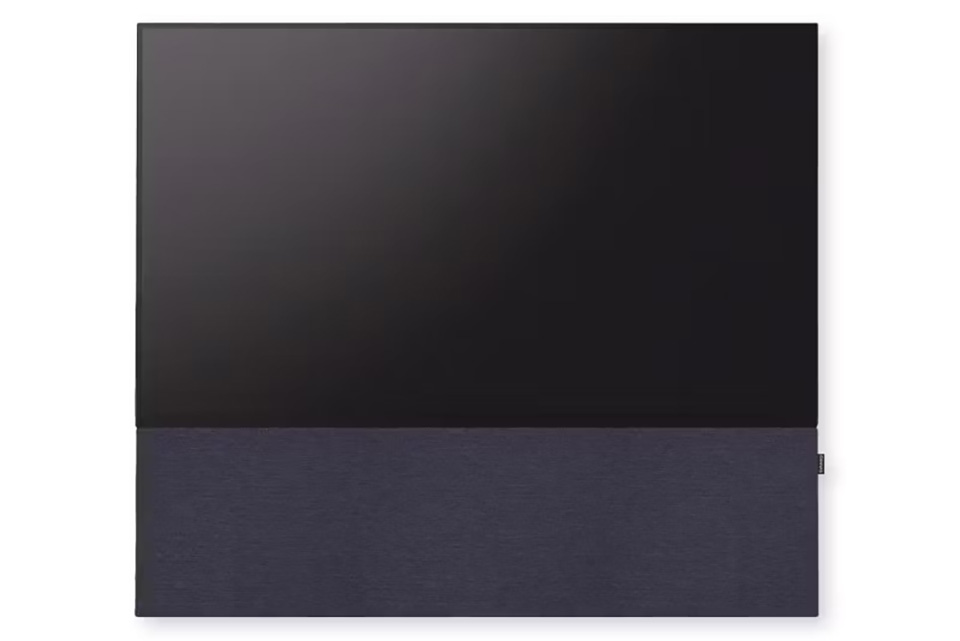

• Interchangeable magnetic front in fabric or real wood
• Supports HDMI eARC, AirPlay 2, Google Cast, Roon, Spotify Connect and Tidal Connect
• Automatic OTA software updates and upgradeable hardware

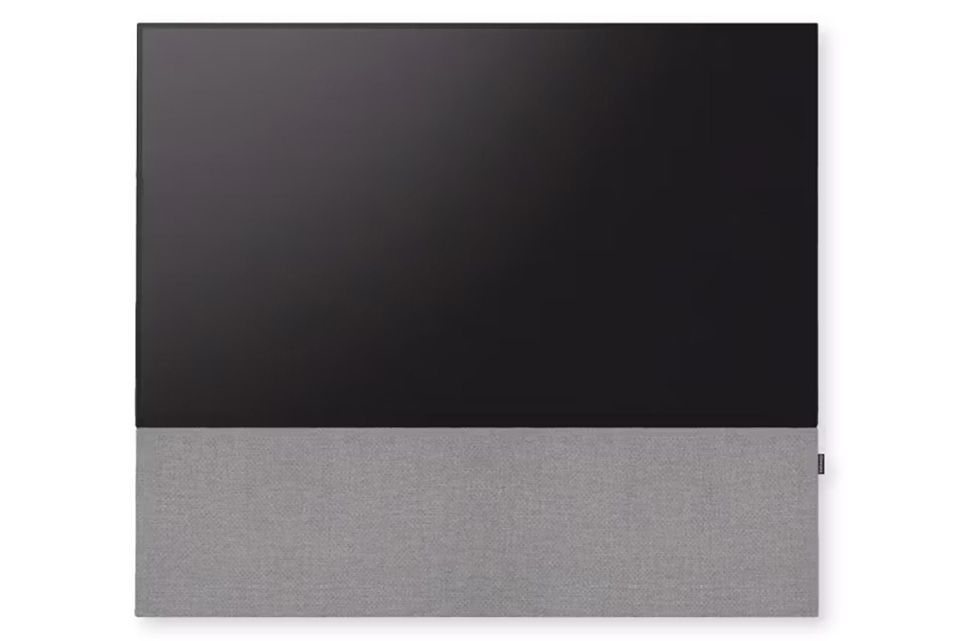

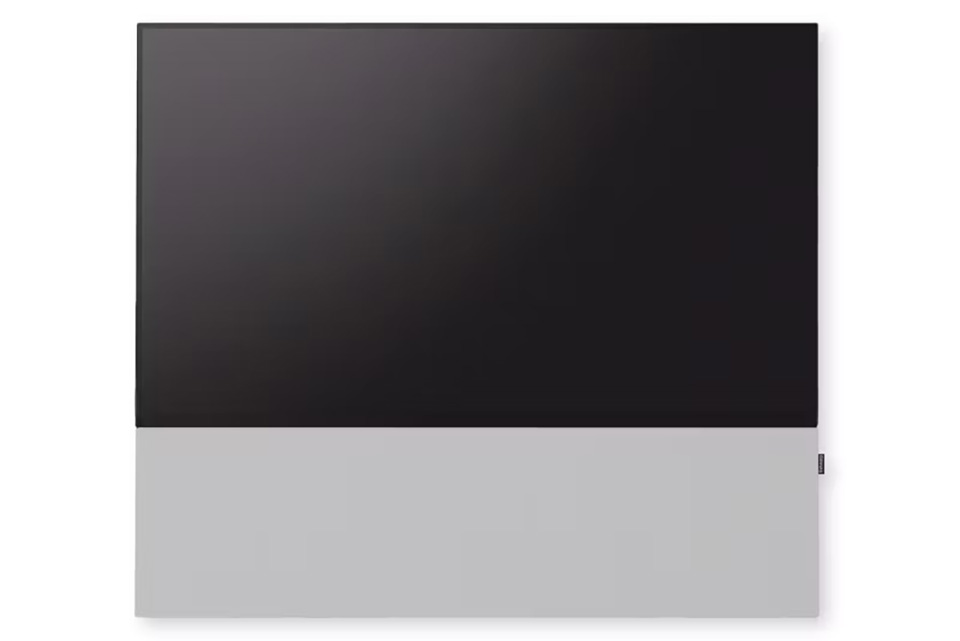

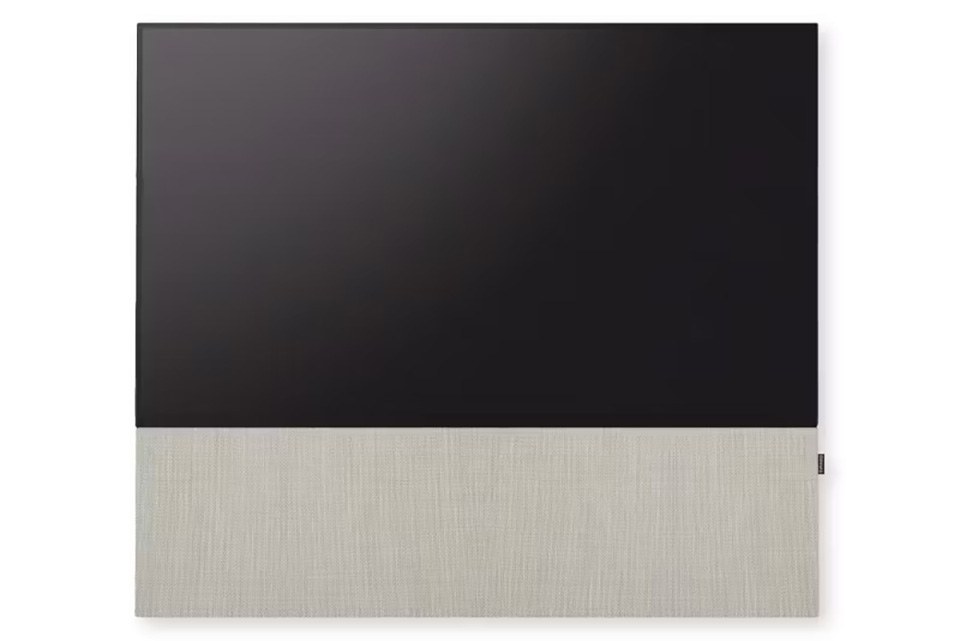

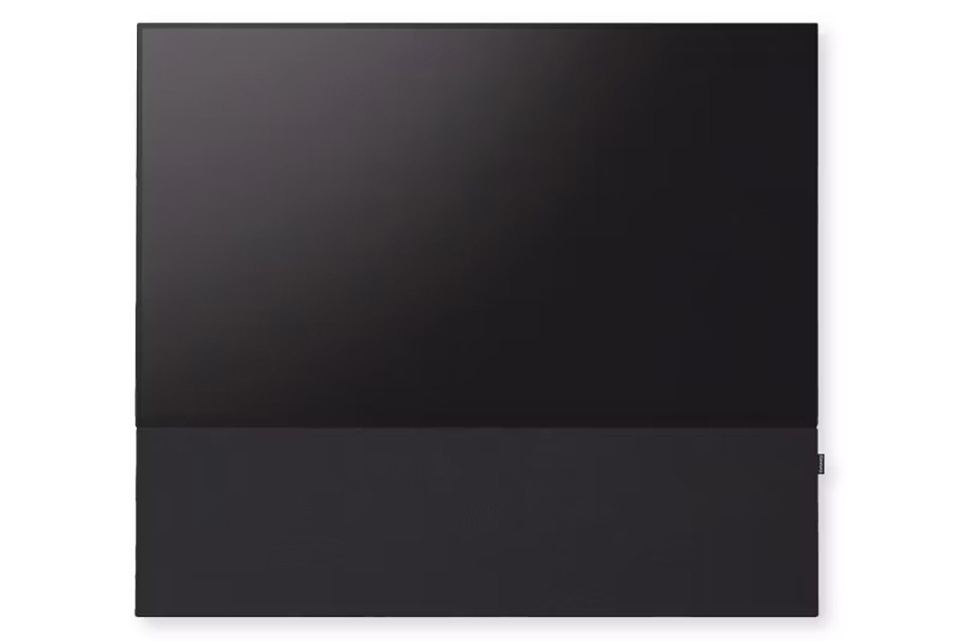

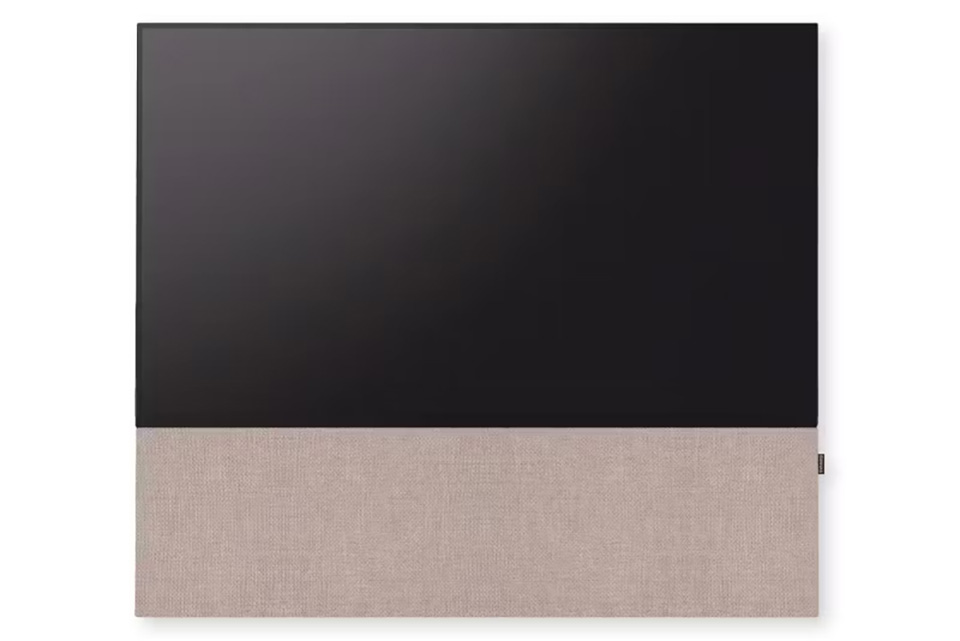

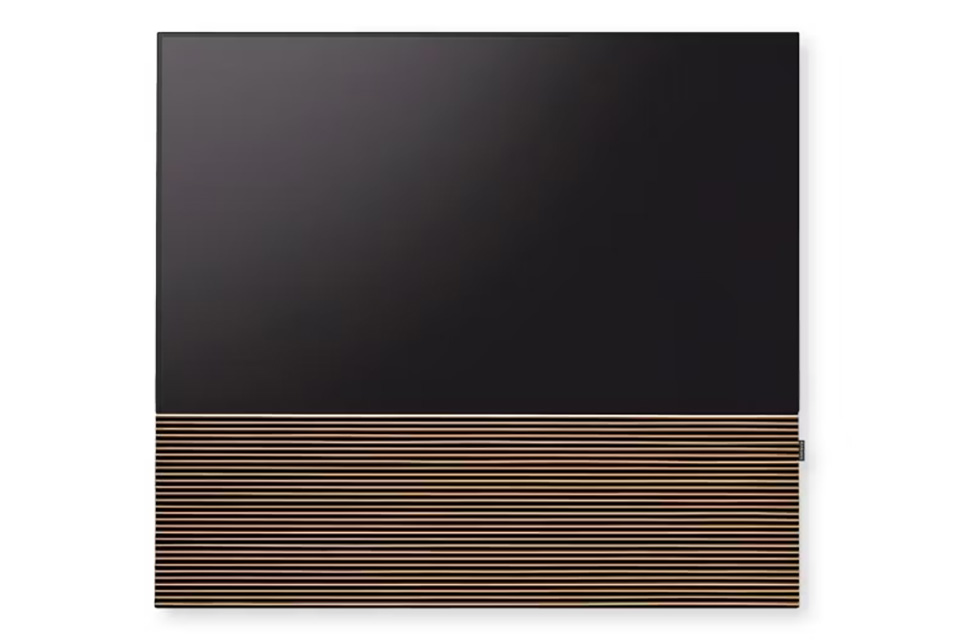

CANVAS for 65" TVs is designed to combine your television and audio system into one elegant solution without the need for a traditional soundbar. The universal TV bracket fits televisions from brands including Sony, Panasonic and LG, while the included stand and wall bracket allow for both floor-standing and wall-mounted installation. The included 65" front matches the width of the TV and is available in a range of finishes, including Kvadrat fabric and real wood, allowing it to blend naturally into different interiors. The front attaches magnetically and can easily be replaced when desired.
The cabinet is constructed from MDF using CANVAS BridgeBrace technology and features an internal volume of 24 litres. This rigid construction provides a stable foundation for the speaker system and contributes to deep, controlled bass performance.
The speaker system features two 6.5" SB Acoustics bass/midrange drivers with paper cones mounted in die-cast aluminium baskets, along with two 29 mm silk dome tweeters equipped with specially developed waveguides. Two passive bass radiators reinforce low-frequency performance, while a DSP-based linear phase FIR crossover ensures precise signal processing between the drivers.
Four Class D HiFi amplifiers deliver a combined output of 250 watts. Together with the large cabinet volume, dedicated drive units and passive radiators, the system achieves high efficiency and a frequency response from 28 Hz to 24,000 Hz. Internal signal processing is handled by an Analog Devices quad-core DSP with BACCH 3D filtering, while Burr-Brown 24-bit/192 kHz DACs provide high-resolution digital conversion.
CANVAS supports HDMI eARC for TV audio, along with Toslink optical and analogue audio inputs. Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA are built in, providing access to multi-room audio and streaming from a wide range of devices and services.
Room correction is carried out using the iOS app with the iPhone's built-in microphone or the optional Zen Mic. Software is updated automatically via OTA, and the internal hardware is designed to support future electronic upgrades. Existing audio systems can also benefit from automatic input switching through an external control unit that can be concealed inside CANVAS, enabling integration with a range of established control platforms.
With the
HiFi Frame | 65", you can bring your TV and CANVAS soundbar together in a stylish piece of furniture. The frame gives the screen and soundbar a unified look that can be adapted to your living room.

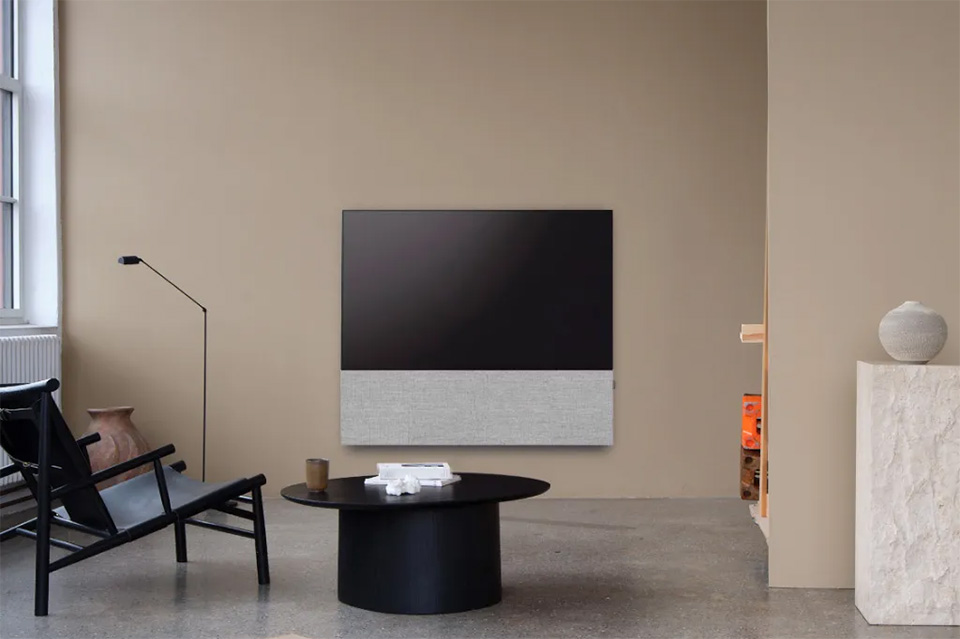

Your CANVAS soundbar can be mounted on the wall or placed on a floor stand. Installation takes some preparation, so we recommend watching the
installation walkthrough before you begin. You are also welcome to
contact us if you need help choosing the option that best suits your TV and your room.
• TV compatibility: Universal TV bracket for 65" TVs from Samsung, Sony, Panasonic, LG and other brands

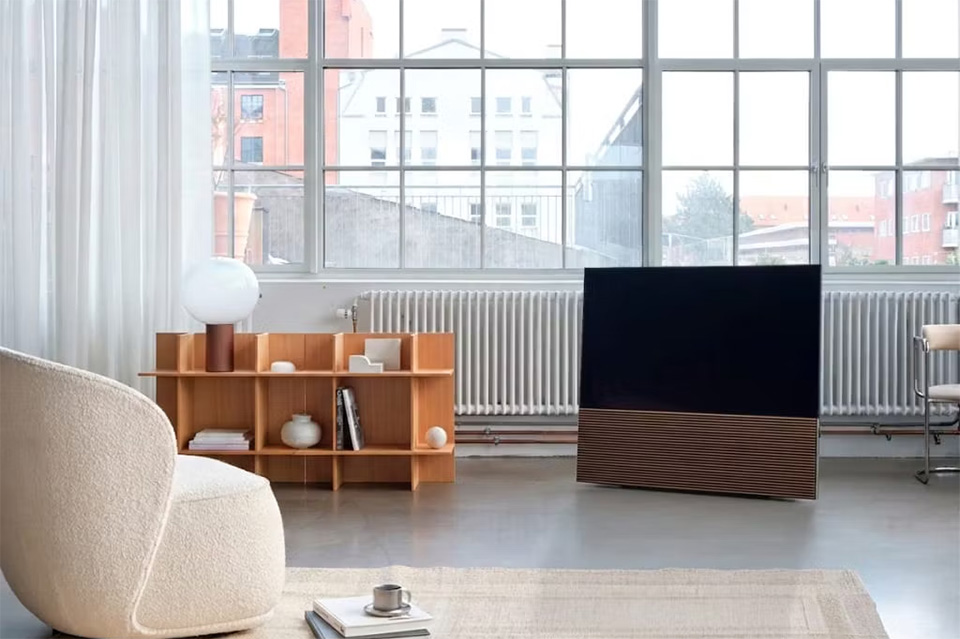

• Installation: Floor-standing or wall-mounted using the included stand and wall bracket
• Front: Magnetic interchangeable front in fabric or real wood
• Cabinet: 24-litre MDF cabinet with CANVAS BridgeBrace technology
• Bass/midrange drivers: 2 x 6.5" SB Acoustics with paper cones
• Tweeters: 2 x 29 mm SB Acoustics silk dome
• Passive radiators: 2 x SB Acoustics passive bass radiators
• Crossover: DSP linear phase FIR
• Amplifiers: 4-channel Class D, total output 250 watts
• DAC: Burr-Brown 24-bit / 192 kHz
• DSP: Analog Devices quad-core 300 MIPS with BACCH 3D filter
• Frequency response: 28 Hz - 24,000 Hz
• Signal-to-noise ratio: Above 103 dB
• THD+N: Below 0.05%
• Room correction via iOS app using iPhone microphone or optional Zen Mic
• Connections: HDMI eARC, Toslink optical, analogue audio input
• Streaming: Apple AirPlay 2, Google Cast, Roon, Spotify Connect, Tidal Connect and DLNA
• Software updates: Automatic OTA
• Hardware: Upgradeable electronics
• Power supply: AC 100-240 V, 50-60 Hz
• Dimensions, wall-mounted incl. front: 144.5 x 36.9 x 12.6 cm (W x H x D)
• Dimensions, floor-standing incl. front: 144.5 x 37.3 x 19.8 cm (W x H x D)
• Dimensions, CANVAS with TV: Approx. 144.5 x 120.4 cm (W x H)
• CANVAS unit: Approx. 121.0 x 33.0 x 12.0 cm (W x H x D)
• Weight, CANVAS unit: 26.5 kg
• Weight, wood front with bracket: 7.9 kg
• Weight, fabric front with bracket: 6.9 kg
• Included: CANVAS speaker, 65" front, stand, wall bracket, TV bracket, cables, screws and mounting hardware
