Monacor PA-806DAP Mixing Amplifier (1x 60W)

60 W Class D PA mixing amplifier with DAB+, FM, Bluetooth, USB/SD, 48 V phantom power and support for 4-16 Ohm, 70 V and 100 V

Product no:

388 EUR /pc.

Add to cart

AV-CONNECTION

Fast worldwide delivery

+25 years of experience

30 days return policy

5-star customer service

Price protection

Highlights:

• Mono Class D PA mixing amplifier with 60 W output power
• Supports 4, 8 and 16 Ohm as well as 70 V and 100 V speaker systems
• Integrated MP3 player via USB and SD card
• FM/DAB+ radio and Bluetooth 4.2 for wireless audio playback
• Balanced XLR microphone input with 48 V phantom power and priority for announcements
• Fanless design ensures quiet operation
• TEL input, Music-On-Hold output and mute function for PA installations

Flexible 60 W PA mixing amplifier:

The MONACOR PA-806DAP is a compact mono PA mixing amplifier that combines amplification, mixing and multiple audio sources in a single unit. The Class D amplifier delivers 60 W and can be used with low-impedance speaker systems at 4, 8 or 16 Ohm as well as distributed 70 V and 100 V systems. This provides flexibility when configuring different types of fixed PA and speaker installations.

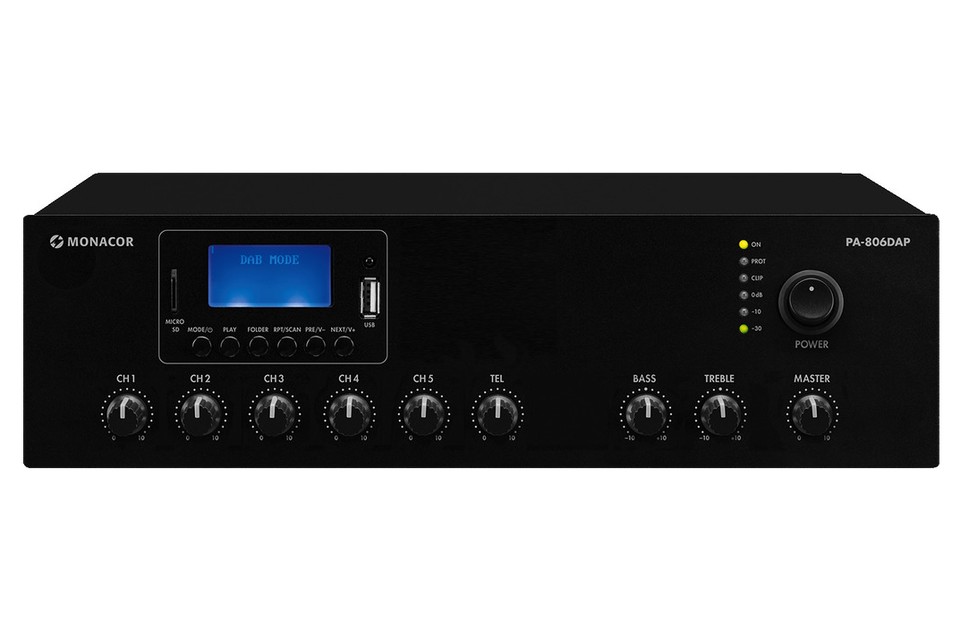

The efficient Class D design is combined with fanless cooling, allowing the amplifier to operate without fan noise. Input levels and the overall output level can be adjusted from the front panel, while bass and treble controls allow the sound to be adapted to the speakers and installation. LED indicators provide information about operation, signal level, clipping and protection status.

Music via Bluetooth, DAB+, FM, USB and SD:

The integrated media player allows music playback without requiring a separate external player. MP3 files can be played from USB media or SD cards, while the integrated FM/DAB+ tuner provides access to both analogue FM radio and digital DAB+ radio. An F connector is provided for the FM/DAB+ antenna. Operation is supported by an LED display and the included infrared remote control.

Bluetooth 4.2 also enables wireless audio playback from compatible Bluetooth devices. The combination of radio, local MP3 playback and Bluetooth provides several options for selecting the programme source directly from the amplifier and reduces the need for additional playback equipment in the installation.

Microphone, line signals and priority announcements:

For speech and announcements, the PA-806DAP features a balanced XLR microphone input on channel 1. The input provides 48 V phantom power for compatible condenser microphones and can be given priority for announcements. Channels 2 and 3 use 6.3 mm jack connections and can be switched between microphone and line level, while channels 4 and 5 are RCA line inputs. This makes it possible to combine microphones and external audio sources within the same system.

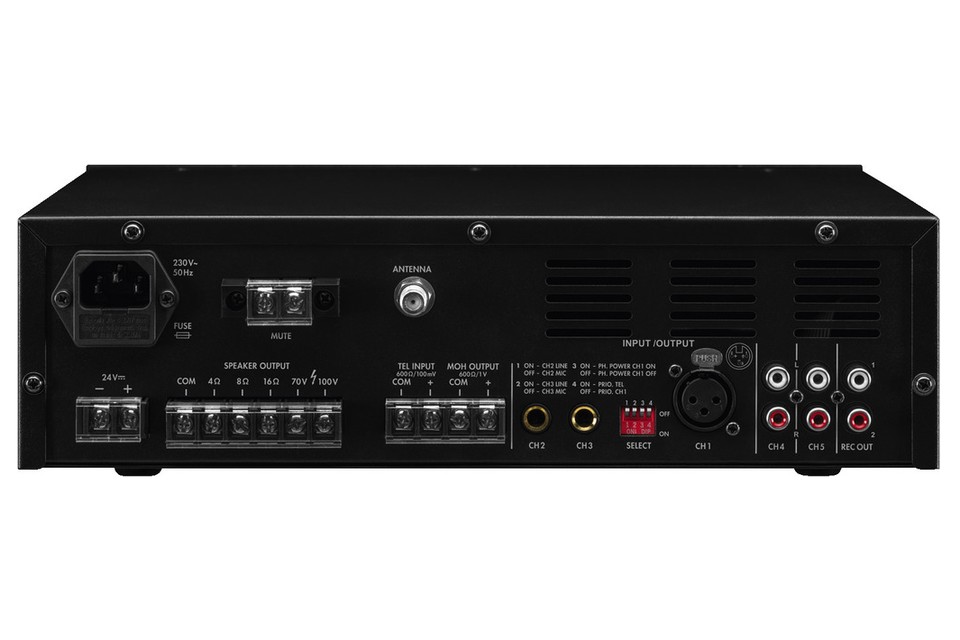

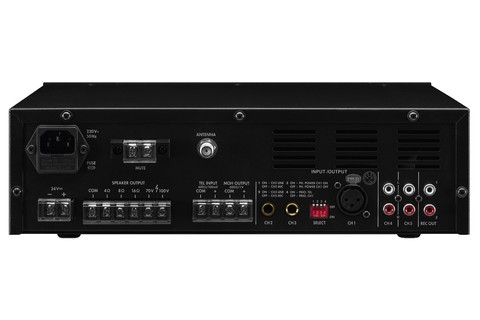

The amplifier also features a dedicated TEL input and a Music-On-Hold output, also known as MOH. An external mute function can be activated via screw terminals. The speaker connections also use screw terminals, while two RCA outputs can be used to route the line signal to other audio equipment.

Specifications:

• Amplifier type: mono Class D PA mixing amplifier
• Channels: 1
• Zones: 1
• Output power: 60 W
• Output power at 4 Ohm: 60 W
• Output power at 8 Ohm: 60 W
• Output power at 16 Ohm: 60 W
• Output power at 70 V: 60 W
• Output power at 100 V: 60 W
• Frequency range: 60-15,000 Hz
• THD: < 0.5%
• Signal-to-noise ratio: 72 dB for microphone channels 1-3, 85 dB for line channels 2-5
• Phantom power: 48 V
• Bluetooth: version 4.2
• Media playback: MP3 via USB and SD
• Radio: FM and DAB+
• Microphone input: 1 x balanced XLR with 48 V phantom power and priority function
• Mic/line inputs: 2 x unbalanced 6.3 mm jack
• Line inputs: 2 x RCA L/R
• Other connections: TEL input, Music-On-Hold output, mute and speaker outputs via screw terminals
• Line outputs: 2 x RCA
• Antenna connection: 1 x F connector for FM/DAB+
• Tone controls: bass and treble
• Indicators: operation, clipping, protect and signal level
• Power supply: 230 V AC, 50 Hz
• Power consumption: 160 VA
• Alternative power supply: 24 V DC, 4.2 A
• Permissible ambient temperature: 0-40 °C
• Dimensions: 9.5 x 32 x 24.5 cm (H x W x D)
• Weight: 4.1 kg
