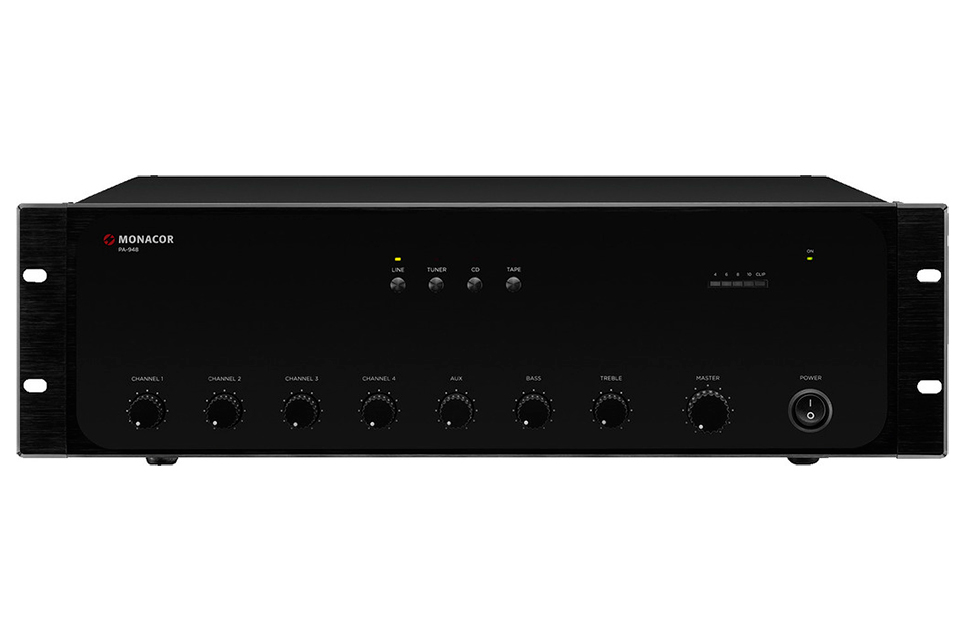

Monacor PA-948 Mixing Amplifier (1x 480W)

Powerful Mono PA Amplifier With 480 W Output. Microphone And Line Inputs, 48 V Phantom Power, 70 V And 100 V Operation Plus 24 V Emergency Power.

Product no:

1.031 EUR /pc.

Add to cart

AV-CONNECTION

Fast worldwide delivery

+25 years of experience

30 days return policy

5-star customer service

Price protection

Highlights:

• Powerful mono PA mixer amplifier with 480 W continuous output
• Supports 4 Ohm, 70 V, and 100 V speaker systems
• 4 balanced microphone inputs with selectable priority and phantom power
• Built-in 2-tone and 4-tone chime for paging and alerts
• Operation via mains power or 24 V emergency power
• Temperature-controlled fan for stable and reliable operation

Professional PA Amplifier for Fixed Installations:

This mono PA mixing amplifier is designed for professional audio installations where reliability, flexibility, and high sound quality are essential. With a power rating of 480 W and a peak output power of up to 680 W, the amplifier delivers ample power for 4 Ohm speakers as well as 70 V and 100 V line systems. This makes it ideal for use in schools, shopping centers, companies, office buildings, and public institutions where even and clear sound distribution is required. The combination of microphone and line inputs allows easy connection of both speech and music sources, while the low distortion and high signal-to-noise ratio ensure clear and pleasant sound even under heavy load.

Flexible Inputs and Advanced Control:

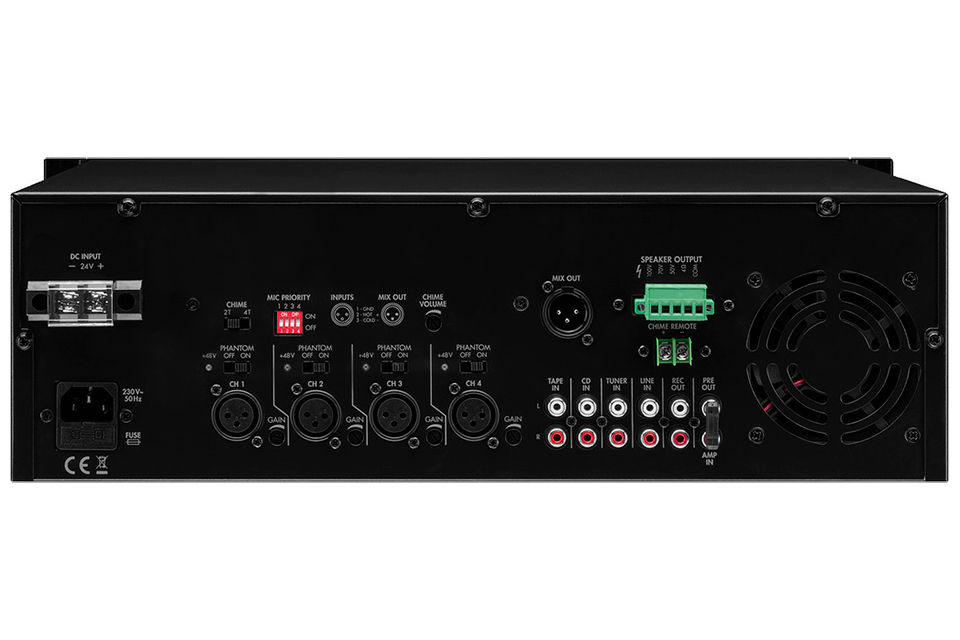

The amplifier features 4 balanced XLR microphone inputs with individual priority and switchable 48 V phantom power, making it suitable for both dynamic and condenser microphones. In addition, there are 4 stereo line inputs via RCA, providing flexibility for external audio sources. The insert function allows connection of external equipment such as equalizers, effect units, or feedback controllers. Output adjustment is handled via input level control, output level control, and 2-way tone control for bass and treble, allowing precise sound tuning to suit the room and application.

Stable Operation and Installation-Friendly Design:

The amplifier is built for continuous operation and is equipped with a temperature-controlled fan that ensures optimal cooling without unnecessary noise. It can be powered via standard 230 V mains or via 24 V DC emergency power, making it particularly suitable for alarm systems and safety-critical installations. The removable mounting brackets and 3 RU rack format allow easy installation in racks and technical cabinets. With solid screw terminals for speaker connections and both balanced and unbalanced line outputs, this PA amplifier is a versatile solution for professional sound systems.

Specifications:

• Power output: 480 W continuous, 680 W peak
• Output impedance: 4 Ohm, 70 V, 100 V
• Channels: 5
• Microphone inputs: 4 x XLR, 2.5-100 mV
• Line inputs: 4 x RCA L/R, 350 mV
• Line output: 1 x XLR, 1 x RCA L/R
• Speaker output: Screw terminals
• Frequency range: 50-16,000 Hz
• Tone control: Bass ±10 dB at 100 Hz, treble ±10 dB at 10 kHz
• Signal-to-noise ratio: > 75 dB
• Distortion (THD): < 0.1 %
• Phantom power: 48 V
• Power supply: 230 V 50 Hz or DC 24 V
• Power consumption: 1,090 VA
• Cooling: Temperature-controlled fan
• Operating temperature: 0-40 °C
• Rack format: 3 RU
• Dimensions: 482 x 137 x 395 mm
• Weight: 19 kg
